LS tractor MT563 - Left-Hand Controls; Range Gear Shift Lever

3 -35

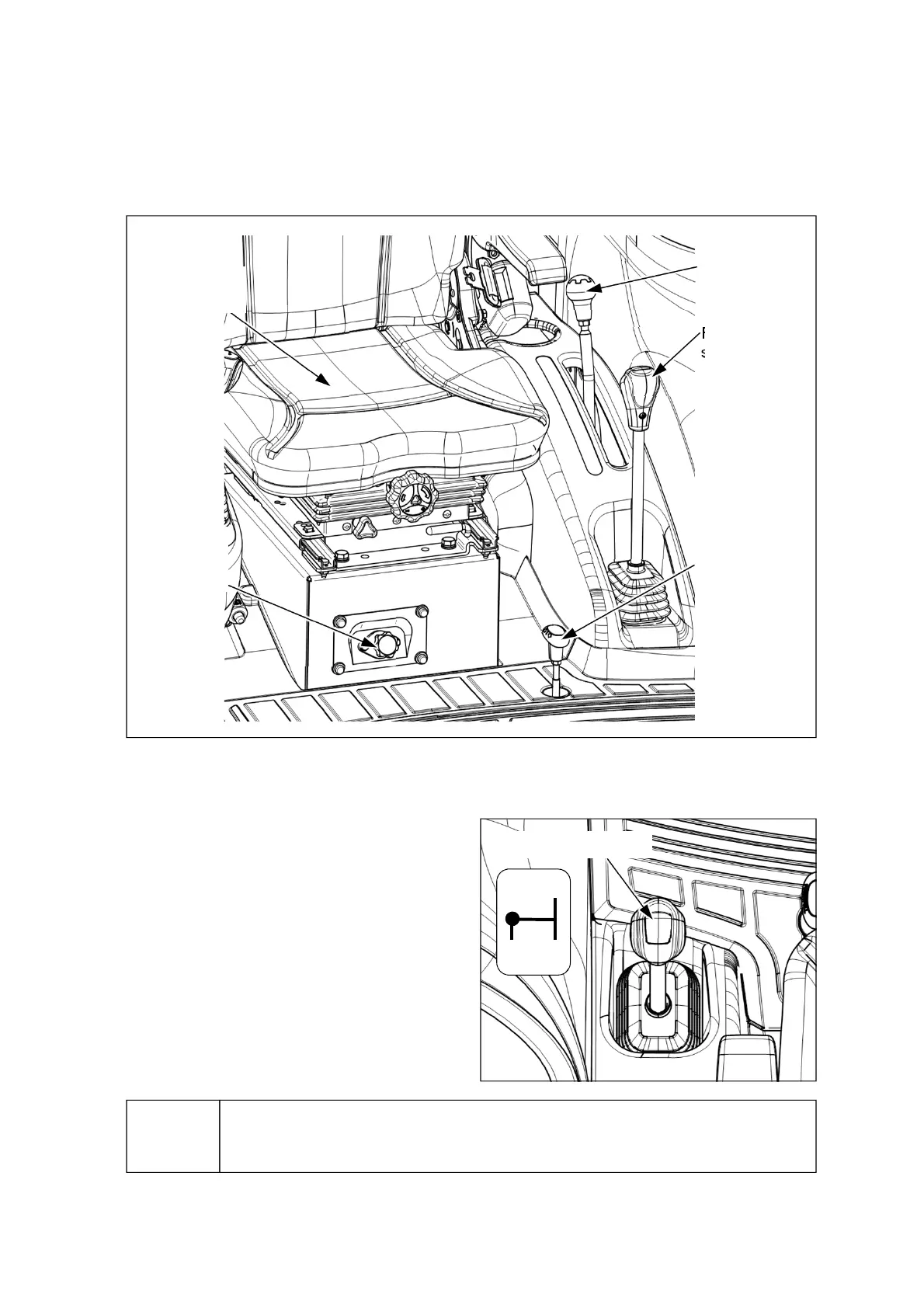

3-3. Left-hand controls
Range gear
shift lever
PTO gear
lever (if fitted)
Important to owner, read carefully
Creeper gear
lever (if fitted)
Driver’s seat
(See chapter 2)
Down speed
Control knob
(chapter 3-5)
Range gear shift lever
(1) Range gear shift lever
 Three speed gear shift and neutral position is
available.
 Before operating the range gear shift lever,
press down the clutch pedal and brake pedals,
and stop the tractor completely.
 When creeper gear is engaged, “H” speed range
gear is not available. Before shifting the range
gear shift lever to “H” range, move the creeper
gear (if fitted) to the standard speed position.
LM
H
Notice
▶Operate the range gear shift lever by correct “H” pattern. If operated diagonally, it
may cause a failure.
