4 -25
(3) Hitch and Drawbar (optional)
When attaching towed equipment, use the hitch
or drawbar. DO NOT use the 3-point linkage or
other parts. If so, the tractor could turnover.
When attaching/detaching towed equipment, be
sure to check the pins locked in place correctly.
DO NOT exceed the maximum permissible
vertical and horizontal load of the couplings

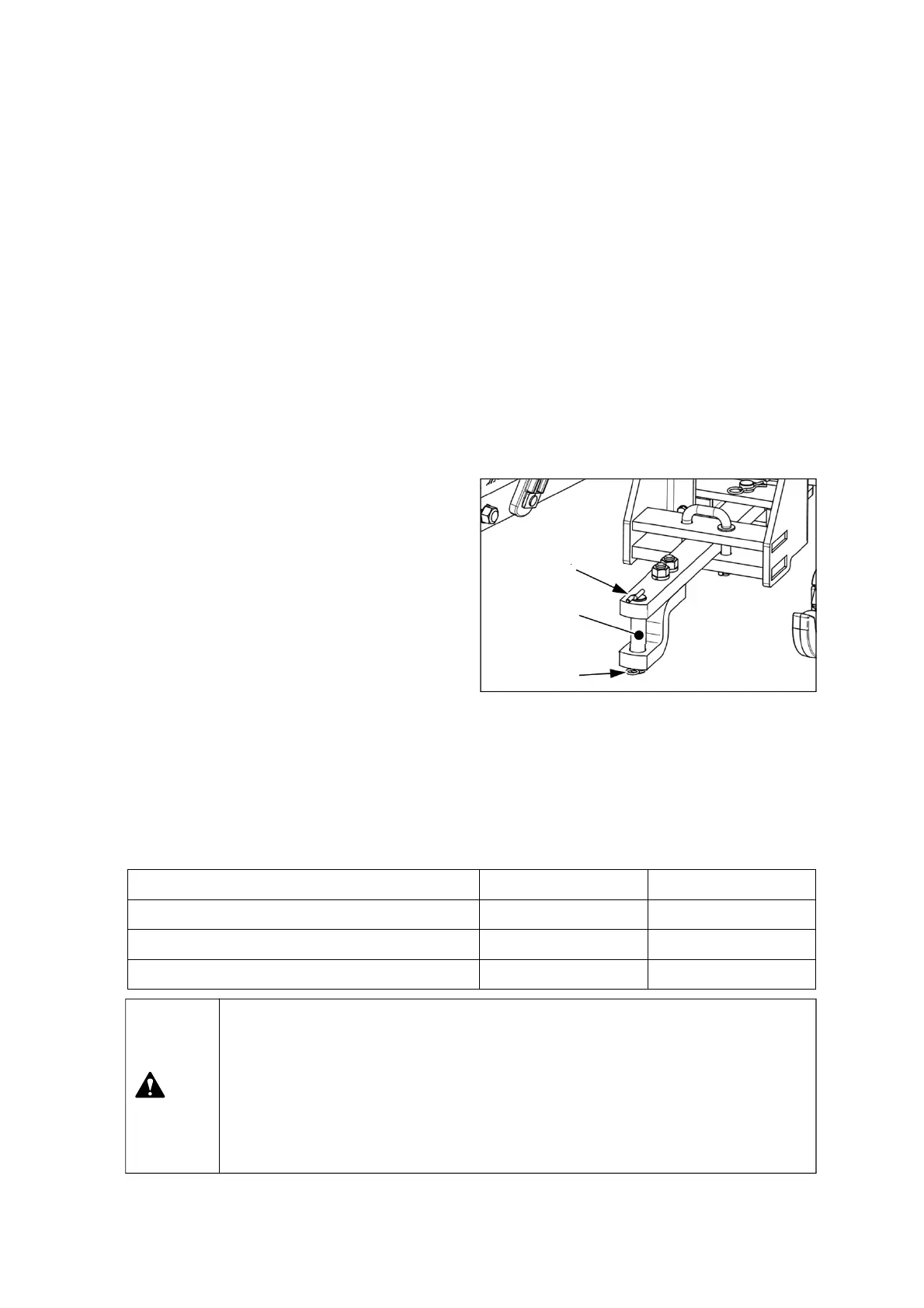

② Drawbar (with clevis)
It is used to tow the 2-axle equipment.
It is available to adjust the position of the draw-
bar after removing lock-pin in the right figure.
After adjusting, assemble the pins firmly.
Type & EC component type-approval mark :
TU-DBT / e13-00021
Vertical load : 650kg (1433 lb)
Horizontal load : 6000kg (13228 lb)
Snap pin
Drawbar
Hitch pin
① Hitch
Not applicable.
Hitch Drawbar
Unbraked towable mass N/A N/A
Inertia-braked towable mass N/A 6000kg (13228 lb)
Hydraulic & Pneumatic braked towable mass N/A 6000kg (13228 lb)
③ Technically permissible maximum
towable mass(es)
The maximum permissible towable mass is
depending on the brake system type on the
towed equipment as below. Check the brake
system of your towed equipment.
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When attaching/detaching towed equipment, apply the parking brake and stop the
engine before applying the locking pins manually.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
