4 -34
④
③
②
①
PRE-OPERATION CHECK, REAR BALLAST !
▶ For tractor stability and operator’s safety, rear ballast should be added to the rear
of the tractor in the form of implements as counter weight like Back Hoe, Rotary
Tiller, etc. The amount of rear ballast will be depend on the application.
Caution
Oil filling inlet
Oil gauge
⑥
⑤
After connecting the hoses, start the engine and
check the leakage of the hydraulic lines.
After lowering the front implement, check if the
transmission oil level is marked between “Min”
and “Max” scale on the oil gauge. If necessary,
add new oil.
⑤ ⑥

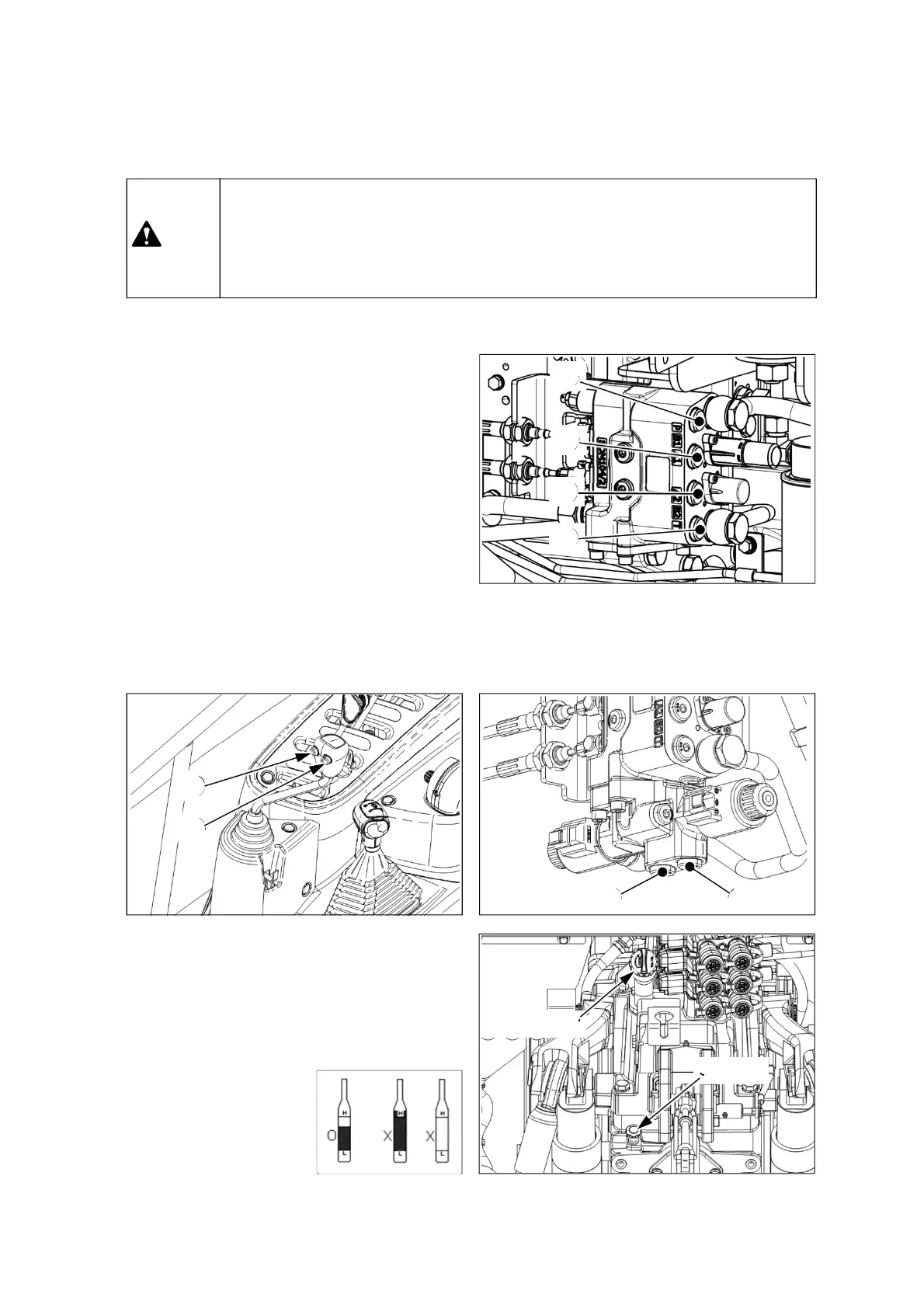

② Connection of hydraulic hoses
Refer to the following instruction for connections
of hydraulic hoses.
For basic joystick lever;
Boom down –----- outlet ①
Boom up ---------- outlet ②
Bucket up --------- outlet ③
Bucket dump ----- outlet ④
The thread specification of outlet ports is PF 3/8.
Use suitable quick couplers for hose connection.
If possible, contact your authorized local dealer.
The electric switches(if fitted) installed on the joystick lever are used to operate the solenoid valve
having outlet ports ⑤,⑥ as below. When pressing these switches;
Left-hand switch: Oil flows to outlet port ⑤
Right-hand switch: Oil flows to outlet port ⑥
To Next Page
