Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

363-208-011, Appendix 3
Test Head Installation
Issue 1 November 1998 A3-13

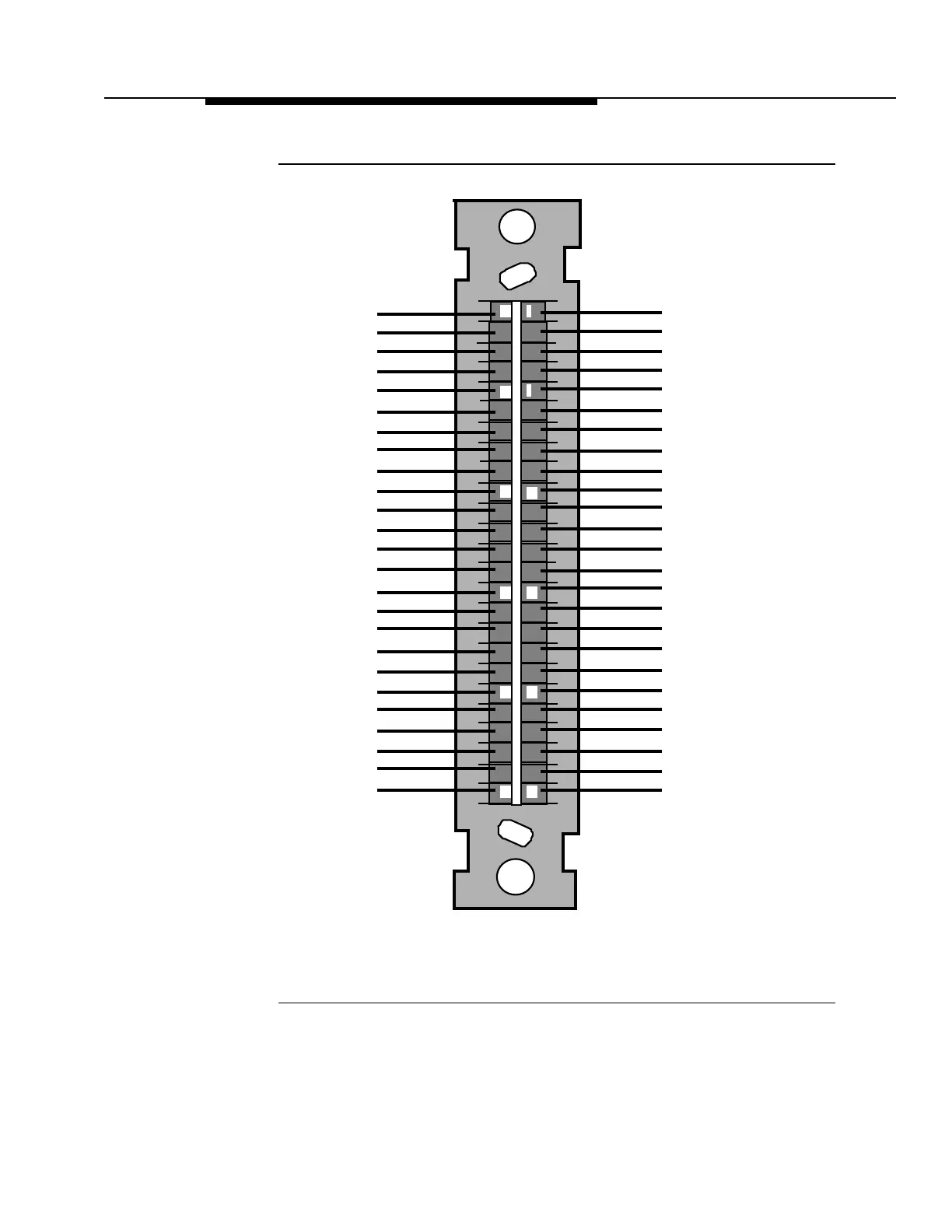

Figure 1-5. Test Head Digital Wiring P13
50
45
40
35
30
26 1
5
10
15
20
25
S/W
BL/R
O/R
BR/R
BL/Y
O/Y
GR/Y
BR/Y
S/W
BL/BK
BL/W
O/W
GR/W
BR/W
Visual Alarm N/O
R/O
R/BR
BK/BL
W/BL
W/O
W/GR
W/BR
W/S
Y/O
Y/GR
Y/BR
N/C
Wiring Side
P13
p/o 955-7000xxx035 Cable Assembly
N/C
N/C
N/C
N/C
N/C
N/C
Audible Alarm C
Remote Shutdown In
N/C
TD
Transmitter Clock
Signal Ground
DTR
CTS
TD
RD
DCD
N/C
N/C
N/C
N/C
N/C
N/C
Audible Alarm N/O
N/C
N/C
N/C
N/C
Visual Alarm C
Visual Alarm N/C
N/C
Audible Alarm N/C
Remote Shutdown Rtn
N/C
RD
Receiver Clock
DSR
RTS
RTS
DTR
Signal Ground
CTS
DCD
N/C
N/C
N/C
N/C
N/C
Note:
N/C = not used or required
