LX Navigation LX 7007 C User Manual

LX Navigation d.o.o. LX 7007 C May. 30th 2012
- 10 -

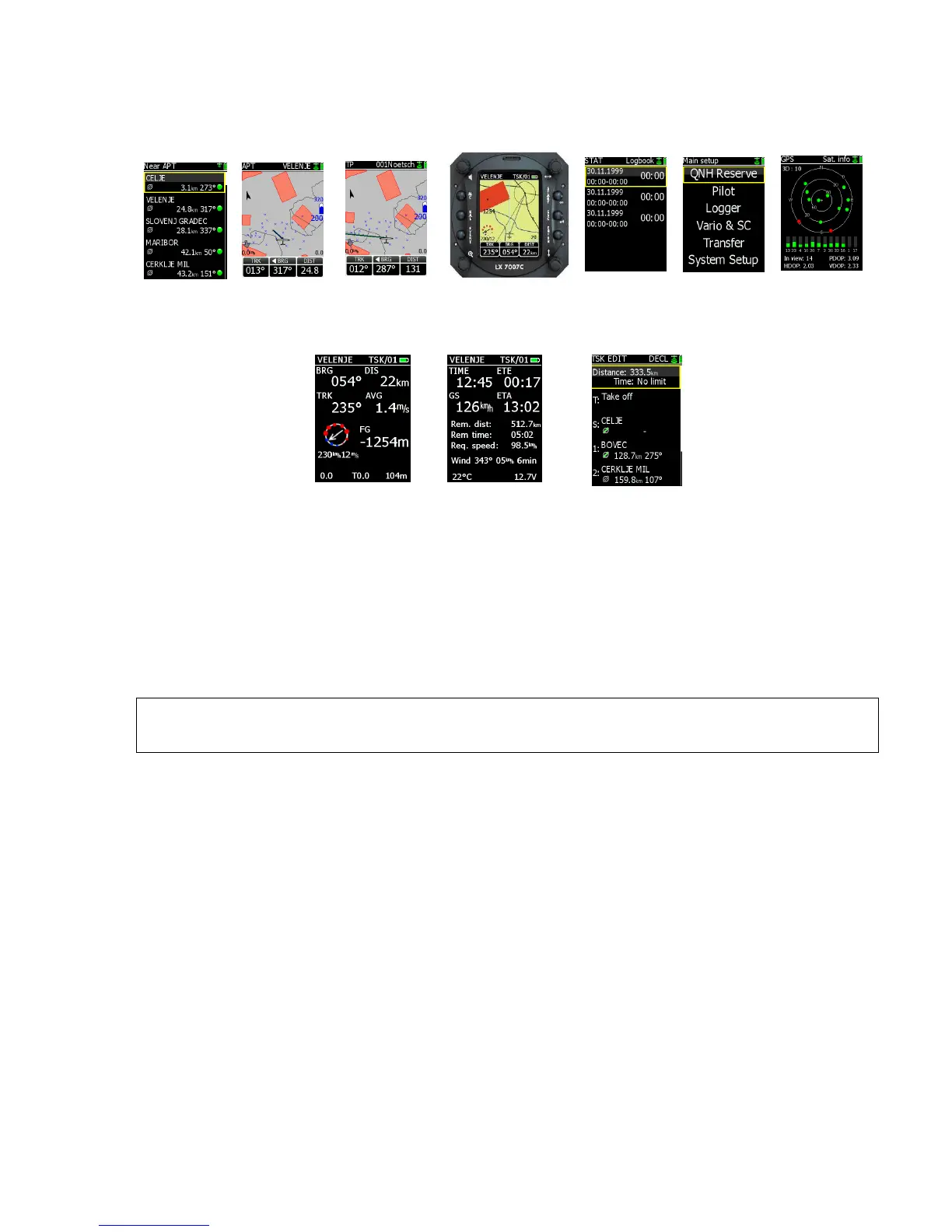

2.2 Operating modes
 MODE 


Near airport Airport Turnpoint Task Log book / statistics Setup GPS
Navigation menus (APT, TP and TSK) have sub menus, which can be selected using the Up/Down rotary
switch.
Sub pages of task mode
GPS GPS status, no inputs possible
NEAR Near airport, select one airport or land able turn point, no further inputs are possible
APT Navigation and selection of airports
TP Navigation, selection and editing of turn points
TSK Navigation, selection and editing of tasks
STAT Flight statistics and logbook
SETUP has two levels. The first level enables direct input of individual parameters. By entering into SYSTEM
SETUP global parameters can be adjusted.
Note!
After activation of Competition Mode only three modes are available, TSK, TP and Statistics. See capture 2.3.
