2 System description
2.1 Rotary switches and keys (buttons)

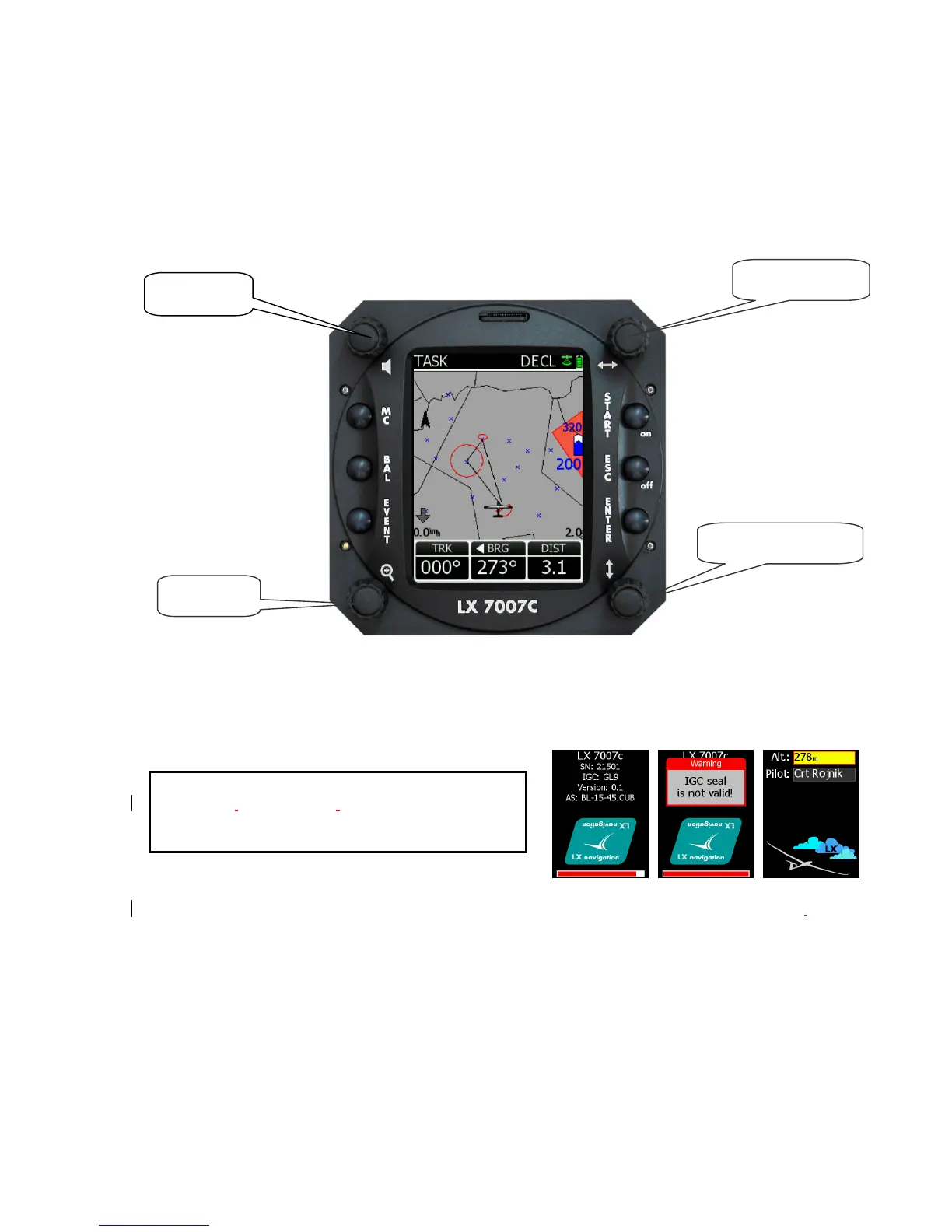

The following controls are mounted on the front face of the LX7007 C
• Four rotary selector switches
• Six push buttons
2.1.1 ON/START button - Switching the Instrument ON and OFF
The ON/START button is multifunctional. If the instrument is not already powered up, a short press on the
ON/START button will switch the instrument ON. The following initial pages will appear after power on.
A long press (about 2 seconds) during operation will change to next turn point in Task mode, but only if the
glider is inside the TP sector. This is only valid if the changeover preset has been set to ‘not automatic’.
In TP a short press will start storing of present position to become a new turn point.
During edit a short press on Start will move cursor one step back.
The unit is equipped with a facility of storing up to 100 pilot names. Pilot selection can be done by rotating the
Up/Down knob. ‘Enter’ will select the pilot and the unit will change over to the GPS status page.
There are some other functions connected with Start bottom, please see further chapters.
After booting is finished take off airfield elevation and pilot selection are offered.
Message ‘Seal Not Valid’ is a warning that the IGC
security device is out of order, no message means
correct security device.
