1 General
The unit consists of two units, one 80 mm unit (LX 7007 DU) and one 57 mm unit (USB D). The 80 mm unit is
a master unit and contains a high-resolution colour display, 6 push buttons and four rotary switches. The 57
mm unit is a vario unit and does not have any controls on it’s front panel. All necessary commands are sent
from the master. Sensors to measure altitude and IAS are located in the vario unit. The Vario unit display
consists of a mechanical needle, which is mainly used as vario indicator, and a colour graphic display, which
is configurable in setup.

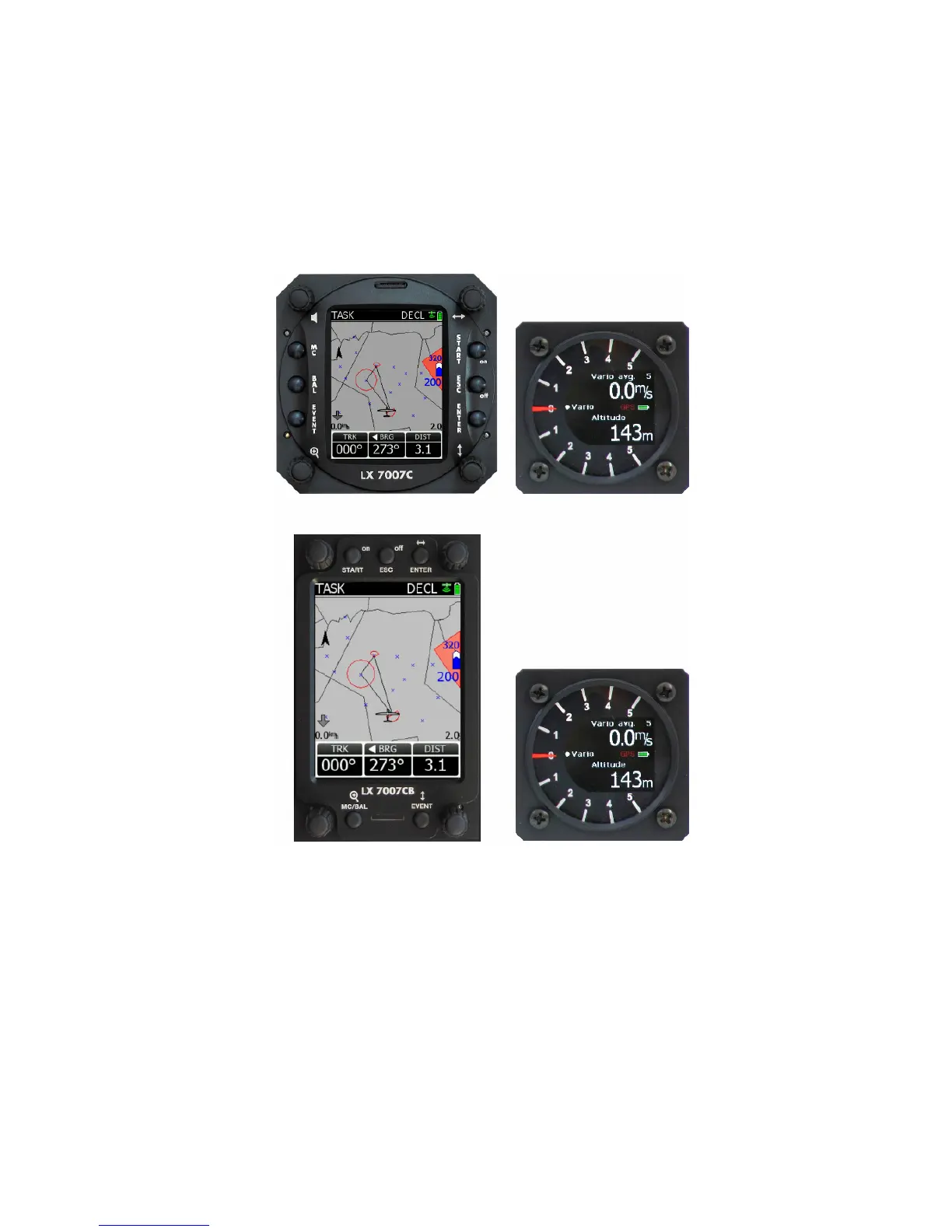

LX 7007 C
LX 7007 CB
The unit comes in two versions LX 7007 C can be fitted into 80 mm standard cut out and LX 7007 CB has a
bigger (3.5 inch) display which requires a larger cut-out. The functions of both units are identical.
Vario functions include:
• Vario with audio, Netto, Relative (Super Netto) and Average
• Smart vario
• Speed command
• Final glide calculator
• TE compensation is selectable for either pneumatic TE tube, or electronic TE
• Altitude gain indicator
• Total averager of last thermal
•
