1 GND
2 NMEA

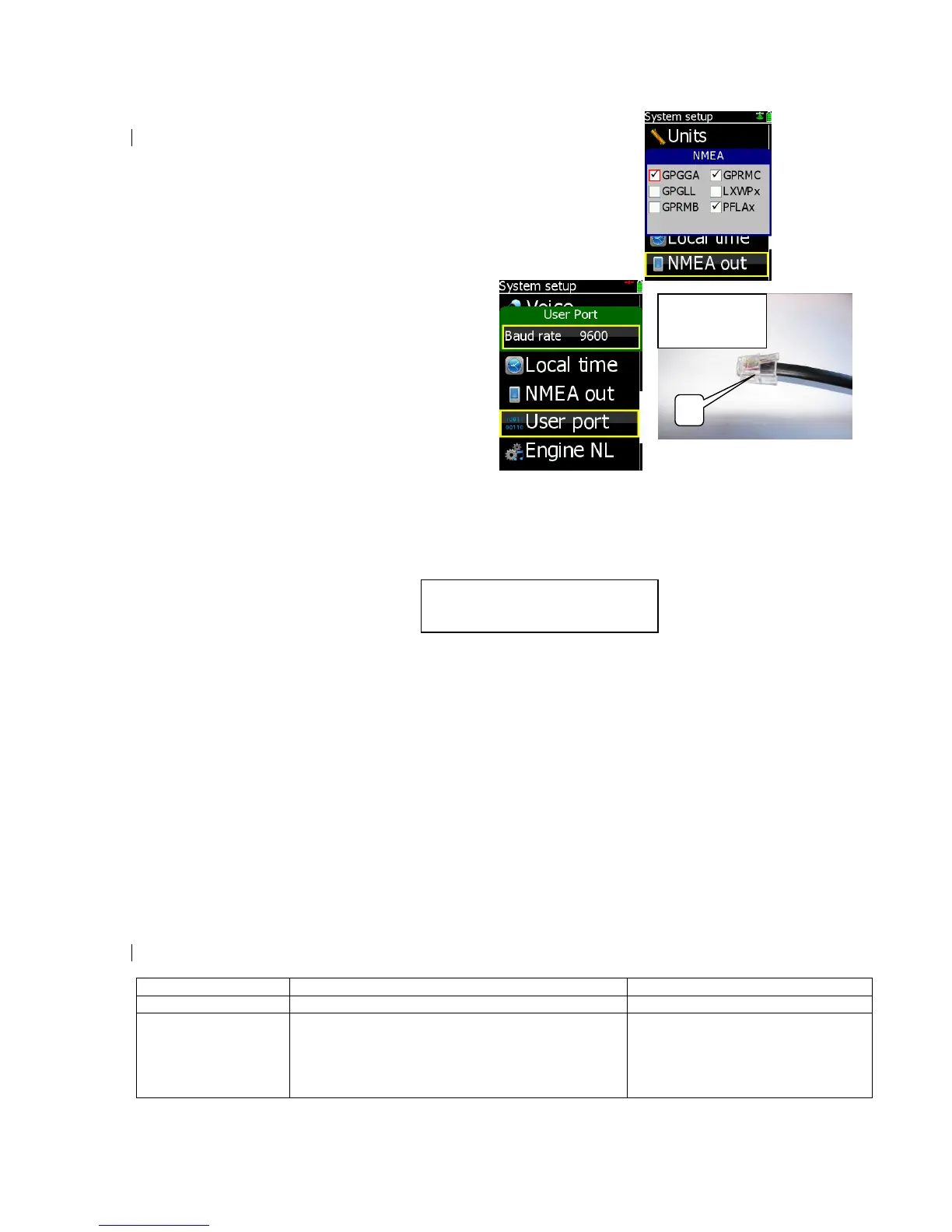

GGA and RMC include basic position data. GPGLL and
GPRMB are also required by some applications. LX Wp
sentences also contain pressure and altitude information
in addition to IAS data . PFLAx data must be enabled, if
Flarm data is required on a PDA .
LX7007 C sends data exclusively at 19200 bps.
A suitable (1638) cable, which connects majority of PDA units
is included in the pack.
2.3.2.16 User Port
User port is a stand alone RS 232 standard port which
is capable to deliver NMEA sentences to third party
units connected to LX 7007 C. The port can be used
to supply GPS data for transponder. Most common
used baud rates are available.
Restart the unit after any change of baud rate.
2.3.2.17 GPS Input
(Valid only for LX 7007 Compact C/CB)
Setting makes it possible to adjust LX 7007 baud rate to meet
GPS source baud rate. Possible settings are:
- 4800, 9600, 19200, 38400 bps
2.3.2.18 ENL (Engine noise level)
This page allows no input, the bar shows ENL figure
And can be used only to check that the ENL is working properly.
2.3.2.19 Hardware
Any additional bus participant as Rear seat unit, Remote controls or compass should be enabled in this menu,
otherwise will not operate.
2.3.2.20 About
This is a poor information menu which informs about the program version and date of its creation.
2.3.2.21 Service
Item service is generally for maintenance activities by authorized personnel. After press on enter a password is
required. Some passwords can be also used by user.
Password Function Remark
99999 Deletes flight recorder
49046 System reset Will delete complete data base and
set all settings to default, a FW
update is mandatory after System
reset, as the unit become
inoperative.
4800 bps: LX 20, Colibri
19200 bps: LX Flarm, Colibri II
