Pilot’s Guide 1-9
Description

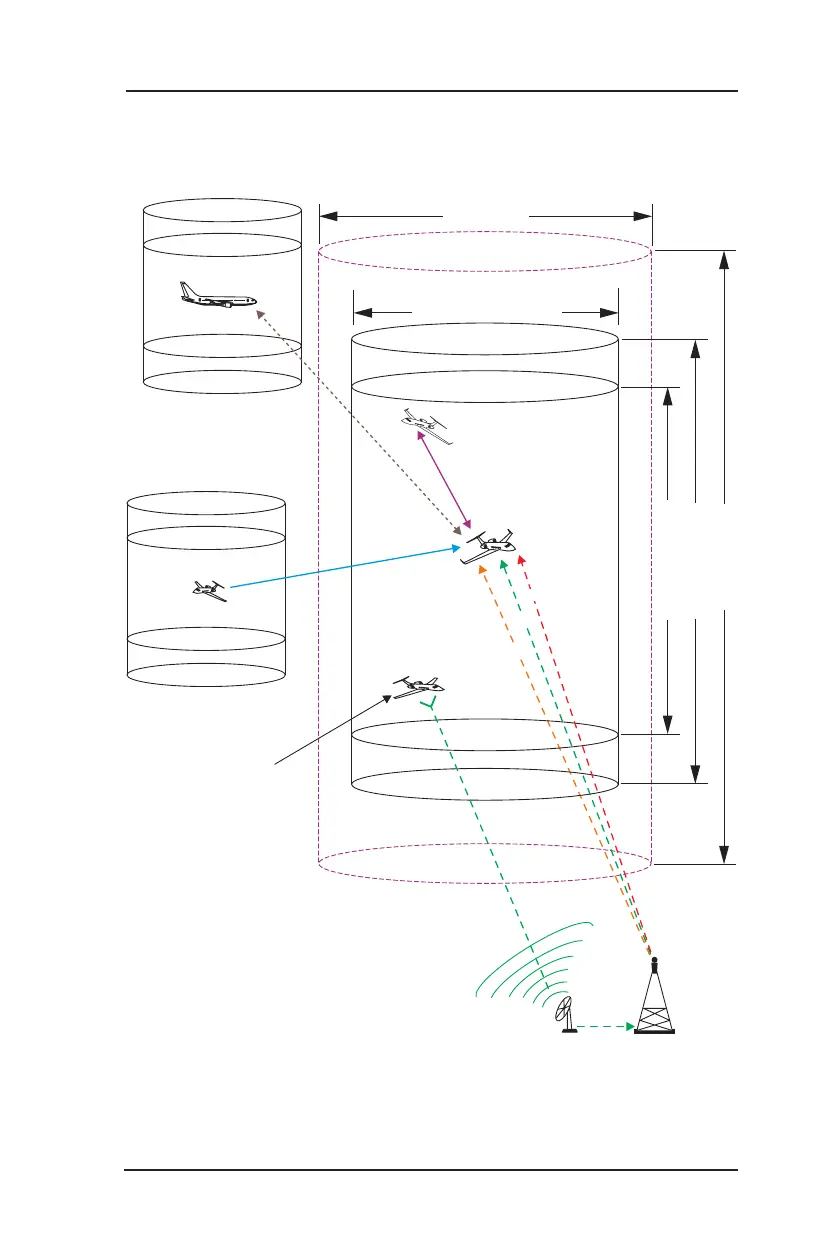

Figure 1-3: Example of Own Aircraft UAT, 1090ES, & TAS Traffic
70 nm ( )TAS
+/- 10000 (T
AS)
+/- 3500 ft (TIS-B)
Own Aircraft
UAT / 1090ES
TAS (model option)
+/- 5000 (ADS-R)
30 nm ( / )TIS-B ADS-R
ATC - Ground Station
Other Aircraft
UAT Non-Equipped
Mode A/C Equipped
TIS-B
Other Aircraft UAT
FIS-B
TIS-B
Other Aircraft
TAS
Other Aircraft 1090ES
ADS-R

Lynx NGT-9000 Series Specifications

General

Type	Avionics Display
Display	LCD
Operating Temperature	-20°C to +55°C
Interface	ARINC 429, RS-232
ADS-B	ADS-B In/Out
