Lynx
®
NGT-9000
Pilot’s Guide2-16
Operation

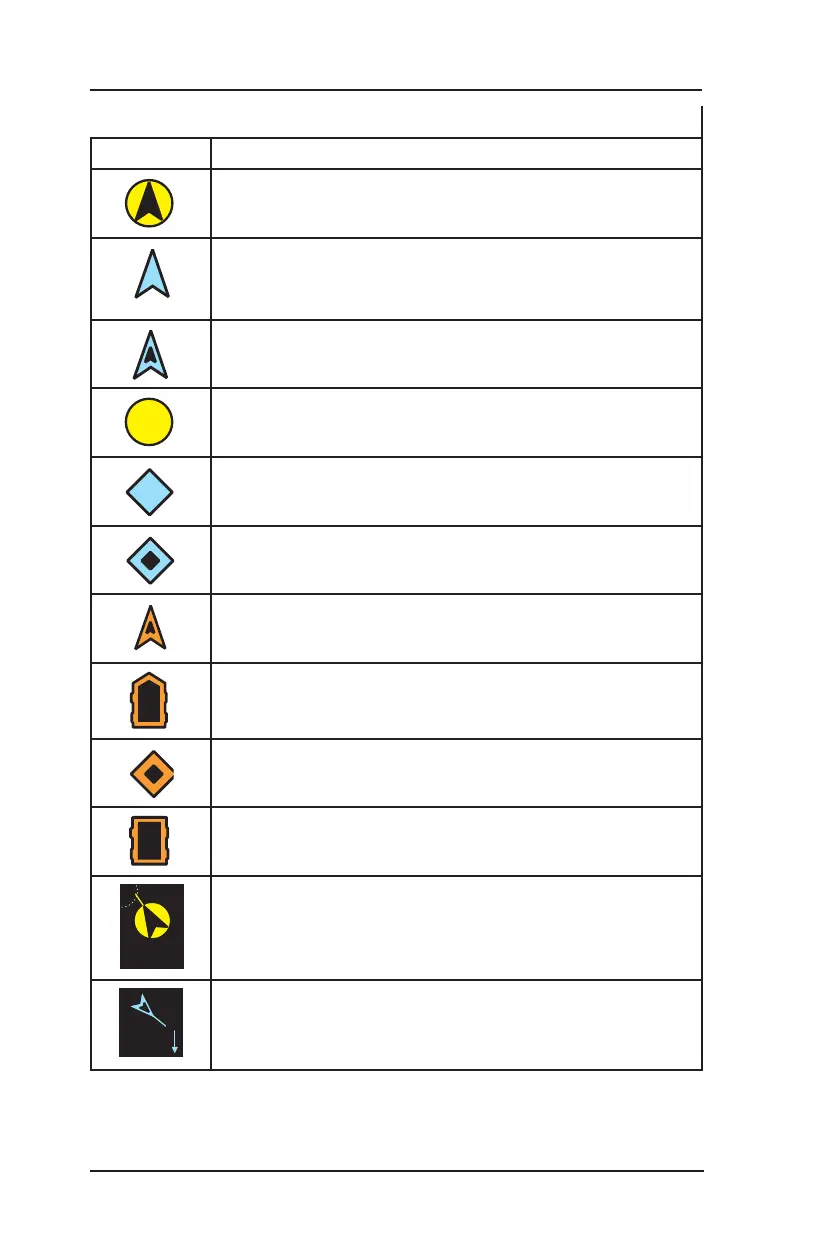

Table 2-4: Traffic Symbols
SyMbol deScriPtion - exaMPle
Airborne Directional Traffic Advisory (TA)
Airborne Directional Proximity Advisory (PA) *
Airborne Directional Other Traffic (OT) *
Airborne Non-directional (TA)
Airborne Non-directional (PA) *
Airborne Non-directional (OT) *
On Ground Directional (OT)
Ground Vehicle Directional
On Ground Non-directional (OT)
Ground Vehicle Non-directional
Airborne Directional TA Traffic symbol with a data
tag indicating a relative altitude of 100ft below with a
horizontal velocity vector.
Airborne Directional Other Traffic symbol with a data
tag indicating a relative altitude of 800ft below own
aircraft descending with a horizontal velocity vector
* To promote cockpit commonality, installation configuration options
are available to set the airborne PA & OT traffic color to either cyan or
white.
