Lynx
®
NGT-9000
Pilot’s Guide2-28
Operation
Map Options Button
The gear shaped Options Button is located in the upper right corner of
the map screen. Tapping the button opens the Options screen that has
three latch buttons located on the bottom of the screen. These buttons
are labeled ON/OFF, Declutter, and Done.
Tap the Done button to close the Options Screen.
On/Off Option Screen
The ON/OFF screen has Toggle On/Off buttons for the FIS-B products
and a Legend. A green LED indicates that the button and function is
On. See Figure 2-15.
Weather Map Legend Screen
The Legend screen is located on the left screen and is shown after
the Legend button in the On/Off screen is tapped. The screen has a
banner on the top of the screen above the display area. See Figure
2-16.
Banner
The Banner is shown on the top of the screen having a gray background.
The banner provides the following information:
Done button used to return to the previous screen.
Mode A squawk code indicator.
Reply “R” or Ident “ID” indicator shown to the right of the squawk
code when either function is active.
Current transponder operating mode status indicator with green
text. An amber “Fail” is shown the transponder function as failed.
•
•
•
•

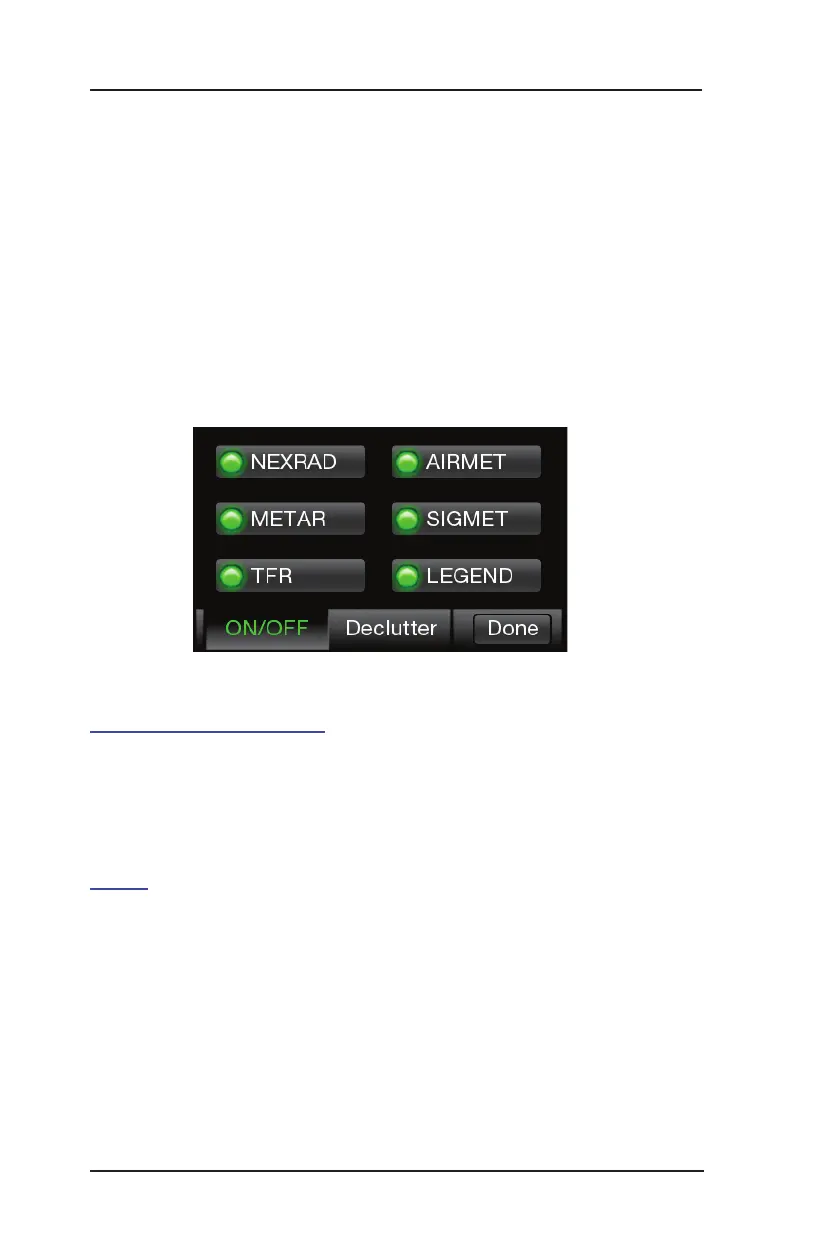

Figure 2-15: On/Off Options Screen
