TFR Map Elements
Temporary Flight Restrictions are displayed on the map as a solid red
line. A TFR is shown as a solid orange line up to 12 hours prior to the
effective date and time of the TFR.
AIRMET and SIGMET Map Elements
AIRMET and SIGMET are weather advisories with concise descriptions
of weather conditions in an area. The AIRMET are used for less
severe weather then the SIGMET. The type and graphic description

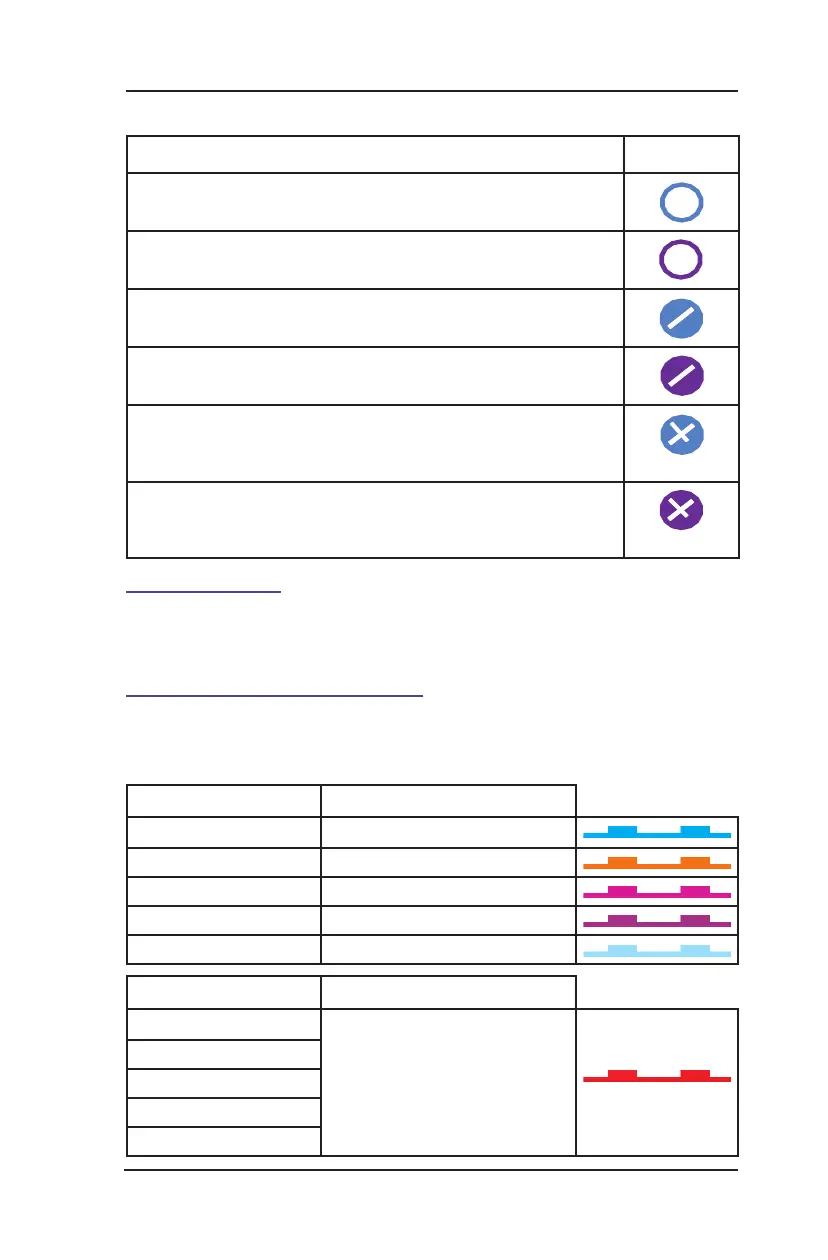

Table 2-5: Airport Symbols
deScriPtion SyMbol
Towered Soft Surfaced Airport
Non-towered Soft Surfaced Airports
Towered Hard Surfaced Small Airports
(1,500 to 8,069 ft runway)
Non-towered Hard Surfaced Small Airports
(1,500 to 8,069 ft runway)
Towered Hard Surfaced Large Airports
(> 8,069 ft runway and some multi-surfaced < 8,069 ft
runways)
Non-towered Hard Surfaced Large Airports
(> 8,069 ft runway and some multi-surfaced < 8,069 ft
runways)
airMet tyPe diSPlay ProPertieS
Icing Straight hashed blue line
Turbulence Straight hashed orange line
Mountain Obscuring Straight hashed magenta line
IFR Straight hashed purple line
Unknown Straight hashed blue line
SiGMet tyPe diSPlay ProPertieS
Icing
Straight hashed Red line
Turbulence
Convective
Volcanic Ash
Other
