Pilot’
s Guide
2-29
Operation

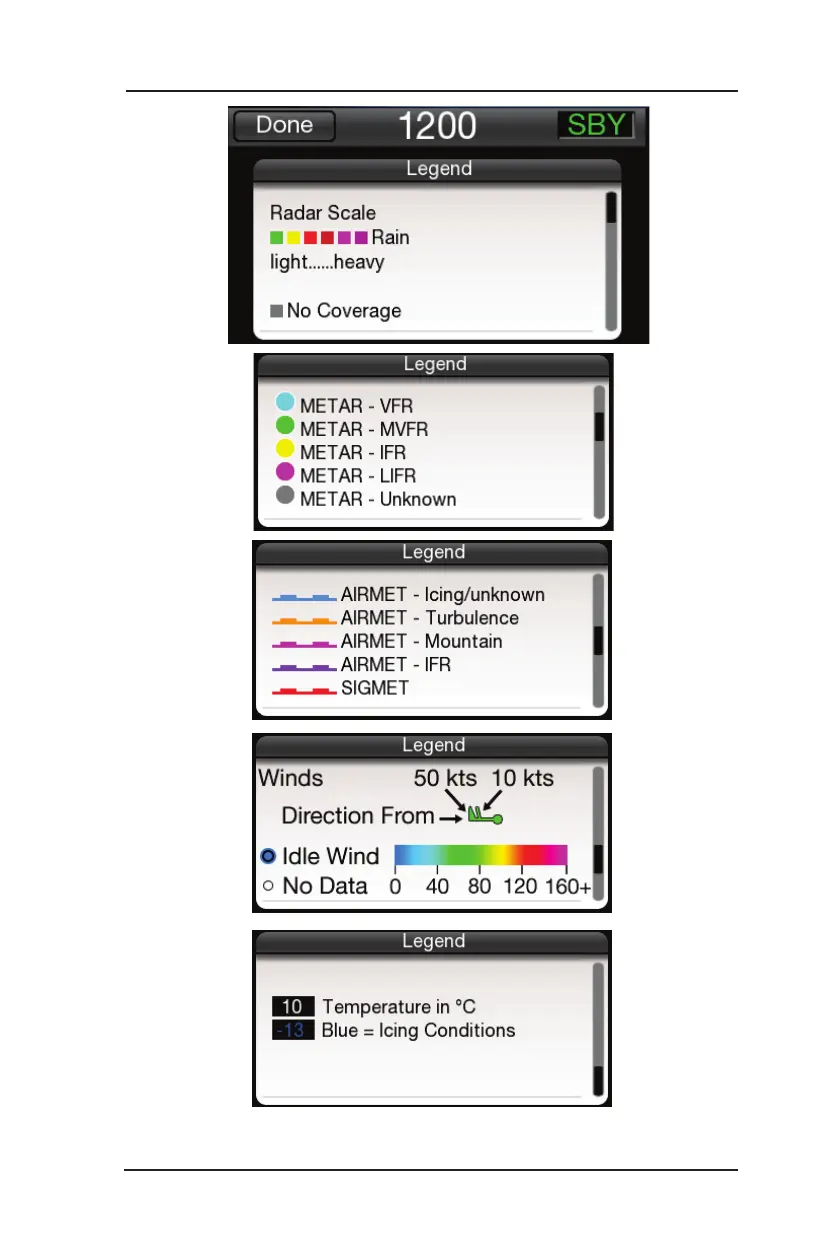

Figure 2-16:
Weather Map Legend Screen
54
56
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1: Description
11
Introduction
11
Figure 1-1: Example of Panel Mount Lynx NGT-9000
11
Table 1-1: Model Options
11
Specifications
12
Pilot Advisory
14
Functional Description
15
Figure 1-2: Example of Remote Mount Lynx NGT-9000
15
Ads-B
16
Options
16
Ads-R
19
Figure 1-3: Example of Own Aircraft UAT, 1090ES & TAS Traffic
19
Traffic Awareness System
20
Table 1-2: Description of FIS-B Available Information
22
Equipment Description
24
Optional Equipment
24
GPS Antenna and Internal GPS Receiver
24
L-Band Antenna
24
Detachable Configuration Module (DCM)
24
Directional Antenna
25
Alternate Displays
25
Personal Electronic Device (PED)
25
Wifi Serial Adapter
25
CP-2500 Control Panel
25
Chapter 2: Operation
27
Introduction
27
Power (Remote Mount)
27
Normal Operation (Remote Mount)
28
Power (Panel Mount)
28
Splash Screen
28
Figure 2-1: Example of Splash Screen
28
System Status / Versions Screen
29
Flight ID Screen (Optional)
30
Normal Operation
30
Figure 2-3: Example of Flight ID Screen
30
Figure 2-4: Example of Normal Operation
30
Basic Operation
31
Screen Buttons
31
Table 2-1: Button Functions
31
Application Screens
33
Table 2-2: Left Screen Applications
34
Table 2-3: Right Screen Applications
34
Transponder Operation
35
Squawk Code
35
Figure 2-5: Transponder Application Screen
35
Figure 2-6: Squawk Code Edit Screen
35
Current Pressure Altitude
36
Flight ID / Call Sign
36
Mode Control
36
Transponder Reply
36
IDENT Button
36
Squawk VFR Button
37
MSG Button
37
On-GND Indicator
37
System Test Button
37
Figure 2-7: Example of System Test Screen
38
Traffic Operation
39
Figure 2-8: Traffic Applications Screen
39
Ownship Symbol
40
Traffic Screen
40
Traffic Symbols
40
Traffic Display Priority
41
Zoom Buttons
41
Table 2-4: Traffic Symbols
42
Range Rings
43
Traffic Altitude Mode
43
MSG Button
44
TFC Button
44
Traffic Mode Indicator
44
Transponder Banner
44
Traffic Options Button
45
Options - Status
45
Traffic Options Screen
45
Figure 2-10: Traffic Options Screen - Status
46
Options - Settings
46
Figure 2-11: Traffic Options Screen - Settings
47
Selected Traffic Button (I)
47
TIS-B no Coverage Indicator
47
Traffic Information Window
47
Figure 2-12: Example of Traffic Information Window
48
Selected Traffic GS
48
Selected Traffic ID
48
True Track (TRK)
48
Weather Operation
49
No Fis-B Coverage Indicator
49
Figure 2-13: Weather Map
49
Information Button (I)
50
Map Elements
50
AIRMET and SIGMET Map Elements
51
Table 2-5: Airport Symbols
51
TFR Map Elements
51
Figure 2-14: Example of Nexrad Weather Map
52
Metar
52
NEXRAD Map Elements
52
Airport ID Indicator
53
Display Range Indicator
53
North Indicator
53
Orientation Button
53
Panning
53
Traffic Button
53
Zoom Buttons
53
Banner
54
Figure 2-15: On/Off Options Screen
54
Map Options Button
54
On/Off Option Screen
54
Weather Map Legend Screen
54
Figure 2-16: Weather Map Legend Screen
55
Declutter Option Screen
56
Display Area
56
Figure 2-17: Declutter Option Screen
56
Banner
57
Display Area
57
Figure 2-18: Weather Map Text Screen
57
Weather Map Text Screen
57
Product Select List Window
58
FIS-B Graphic Winds & Temp Application
58
Figure 2-19: Product Pick List Window
58
Figure 2-20: Aloft Map Screen
58
Figure 2-21: Winds Aloft Map Elements
59
Traffic Button
59
Aloft Button
60
Flight Level Selection
60
Issue Valid Time Indication
60
North Indicator
60
Ownship Symbol
60
Panning
60
Zoom Buttons
60
FIS-B Textual Application
61
Banner
61
Display Area
61
Figure 2-22: FIS-B Textual Application
61
Traffic Button
61
Airport Button
62
Edit Airport ID Window
62
Figure 2-23: Example of Edit Airport ID Window
62
Favorites Button
63
Favorites Pick List Window
63
Figure 2-24: Example of Favorites Window
63
Product Button
64
Product Pick List Window
64
Maintenance Mode
64
Figure 2-25: Example of Product Pick List Window
64
Figure 2-26: Maintenance Screens
65
Chapter 3: Controls and Indicators
67
Introduction
67
Cockpit Switches
67
Ident
67
Indicator Lamps
67
TAS Alert
67
ADS-B Fail
67
Alternate Display
68
Other Traffic Symbol
68
Proximity Advisory Symbol
68
Off-Scale Traffic Advisory (TA)
68
Ownship Symbol
69
Indicators
69
Wifi Interface
69
Aural Announcements
69
Extended Audio Callouts
70
Audio Inhibit
70
CP-2500 Control Panel
70
Power On/Off
71
Normal Operation
72
Chapter 4 Principles of TAS Operation
75
Introduction
75
Sensitivity Levels
75
Sensitivity Level a
75
Chapter 2: Operation Introduction
75
Sensitivity Level B
76
Table 4-1: Traffic Advisory Situations
77
TA Symbol Duration
78
Other Aircraft Ground Filtering
78
Interference Limiting
78
Figure 4-1: Traffic Display Mode and Tas Traffic Zone Graphic
79
Chapter 5: Troubleshooting
81
Introduction
81
General Display Conditions
81
System Status Messages
83
Invalidities
84
Table 5-2: Troubleshooting for the Panel Mount Lynx NGT-9000
84
Table 5-3: Troubleshooting for the Remote Mount Lynx NGT-9000
89
Appendix Arecord of Important Information
93
Notes
94
