Lynx
®
NGT-9000
Pilot’s Guide 2-21
Operation
Selected Traffic Info Button (i)
The selected traffic info button appears on the left side of both the left
and right screen after a traffic symbol is pressed. When the button is
tapped a traffic information window is shown over the top of the traffic
screen.
TIS-B No Coverage Indicator
This indicator is located next to the Zoom Out button and is shown
when No TIS-B / ADS-R data is available in the area (i.e. out of range
of a ADS-B ground station).
The indicator is also shown if a problem exists with the NGT-9000
System. See the troubleshooting section.
The indicator will not be shown when TAS (if installed) is operational
(i.e. installed, not failed, not in standby).
Traffic Information Window
The window is shown over the traffic screen and provides the following
data and functionality:
Flight ID of the selected aircraft.
Emitter Category or “type” of aircraft.
An aircraft Icon is shown on the right side of the window showing
a representation of the aircraft being tracked. A question mark is
inserted if no icon for that type of aircraft is available.
Calculated ground speed of the selected aircraft.
A Display GS Latch button is used to activate the selected Traffic
GS on the traffic screen.
Tap the Done button to close the window. The window is also
removed from the screen if a Traffic Advisory is detected.
See Figure 2-12 for an example of the Traffic Information Window.
•
•
•
•
•
•
•
•
•

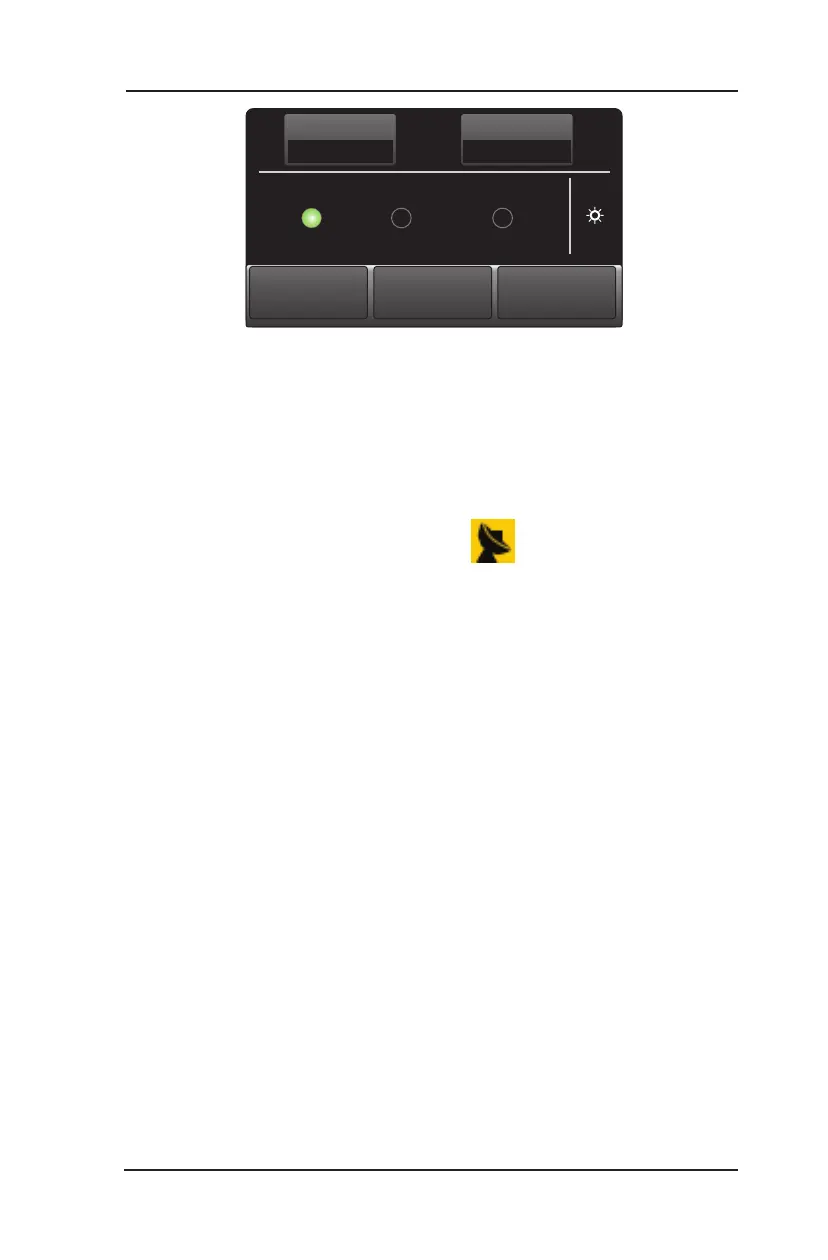

Figure 2-11: Traffic Options Screen - Settings
Status Settings
Done
Initial Traffic Altitude Mode:
Normal Above Unrestricted
BRT
VFR Code
1200
FLT ID
AAA 1234
