Lynx NGT-9000 Series - Table 2-2: Left Screen Applications; Table 2-3: Right Screen Applications

Lynx
®
NGT-9000
Pilot’s Guide2-8
Operation
aPPlication indicator
Transponder
Displays Mode A Squawk Code, Pressure Alti-
tude, Flight ID or Call Sign (tail number).
Alternate Traffic
Birds-eye display of traffic and own-ship compli-
ant with the requirements of AC 20-172A and
DO-317A for the purpose of supporting the
Enhanced Visual Acquisition (EVAcq) and Basic
Airborne (AIRB) CDTI applications.
aPPlication indicator
Traffic
Birds-eye display of traffic and own-ship compli-
ant with the requirements of AC 20-172A and
DO-317A for the purpose of supporting the
Enhanced Visual Acquisition (EVAcq) and Basic
Airborne (AIRB) CDTI applications.
FIS-B Graphic
Simplified moving map display with depiction
of ownship and the ability to selectively overlay
graphical FIS-B products such as NEXRAD,
METAR, AIRMET, SIGMETs, and TFR.
FIS-B Graphic Winds & Temp
Simplified moving map display with depiction
of ownship and the ability to selectively overlay
winds and temps aloft at the desired flight level.
FIS-B Textual Data
Display of airport associated textual products
provided by FIS-B including AIRMET, METAR,
NOTAM, SIGMET, SPECI, and TAF.

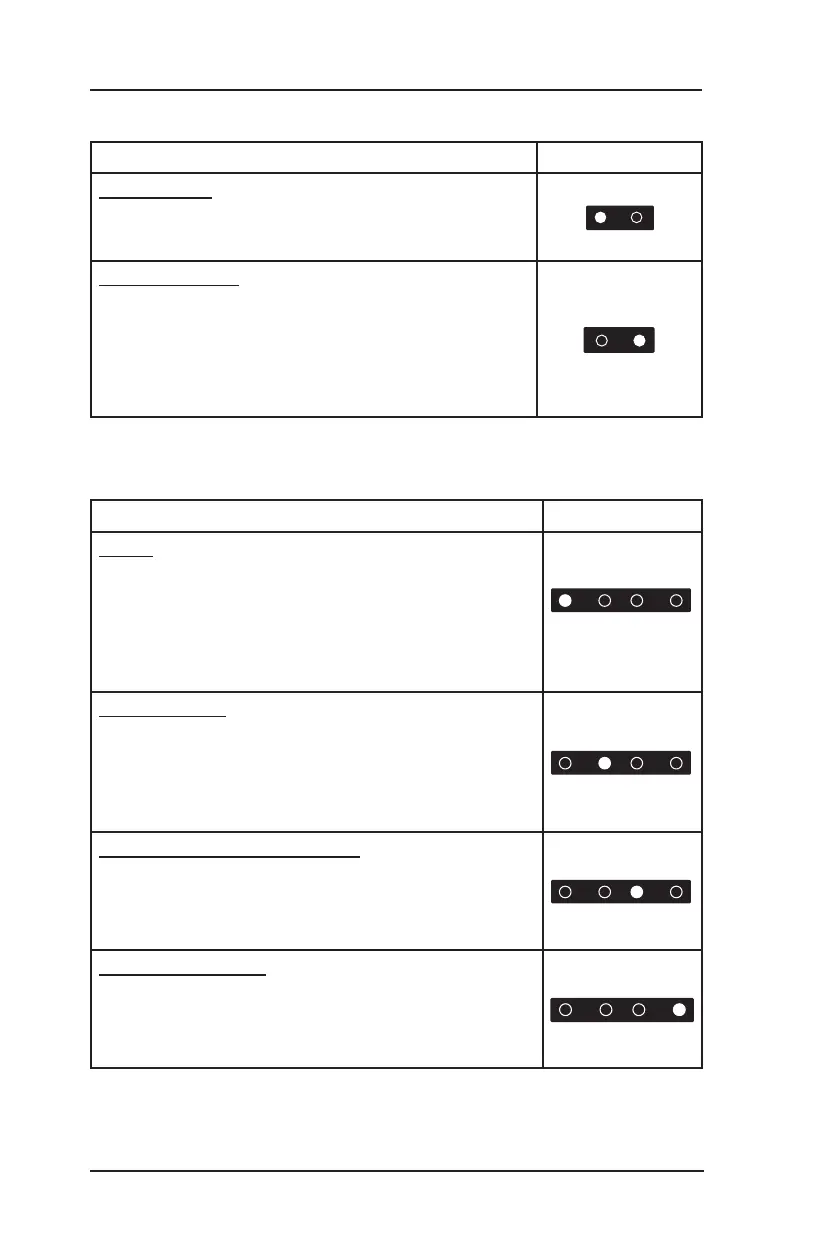

Table 2-2: Left Screen Applications
Table 2-3: Right Screen Applications
