Operation
Display Area
The display area is used to show the meaning of map elements
provided by FIS-B products. It is identified with the label “Legend”.
A scroll bar on the right side provides an indication that additional
information can be seen by using an up/down drag action.
Declutter Option Screen
The declutter screen has a banner at the top of the screen that is
labeled with the declutter range scale from 10 to 800.
The Declutter setting sets the zoom range when a product is displayed/
removed from the display.
The display area shows the declutter list of the different products
(NEXRAD, METAR, TFR, AIRMET, and SIGMET). LED indicators
show declutter ranges for each product. The selected list item is
highlighted in white. Use the Zoom buttons to increase and decrease
the layer range. Use a slide action to scroll up and down the product
list. See Figure 2-17.

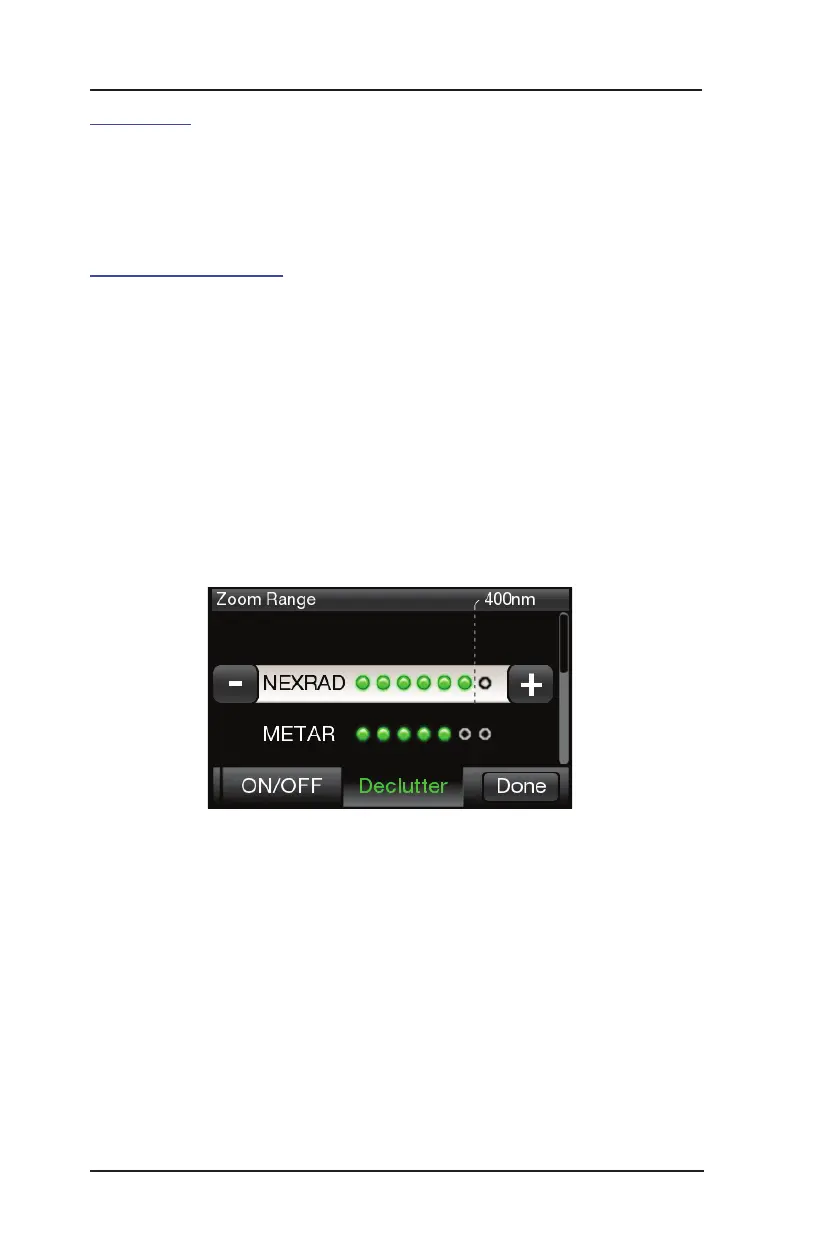

Figure 2-17: Declutter Option Screen
To Next Page
