2.2 Lowering Header
The procedure for lowering header varies depending on whether header has a single or double reel. Refer to the
following:
• 2.2.1 Lowering Single-Reel Header, page 7
• 2.2.2 Lowering Double-Reel Header, page 9
2.2.1 Lowering Single-Reel Header
Reposition header in preparation for assembly and setup as follows:

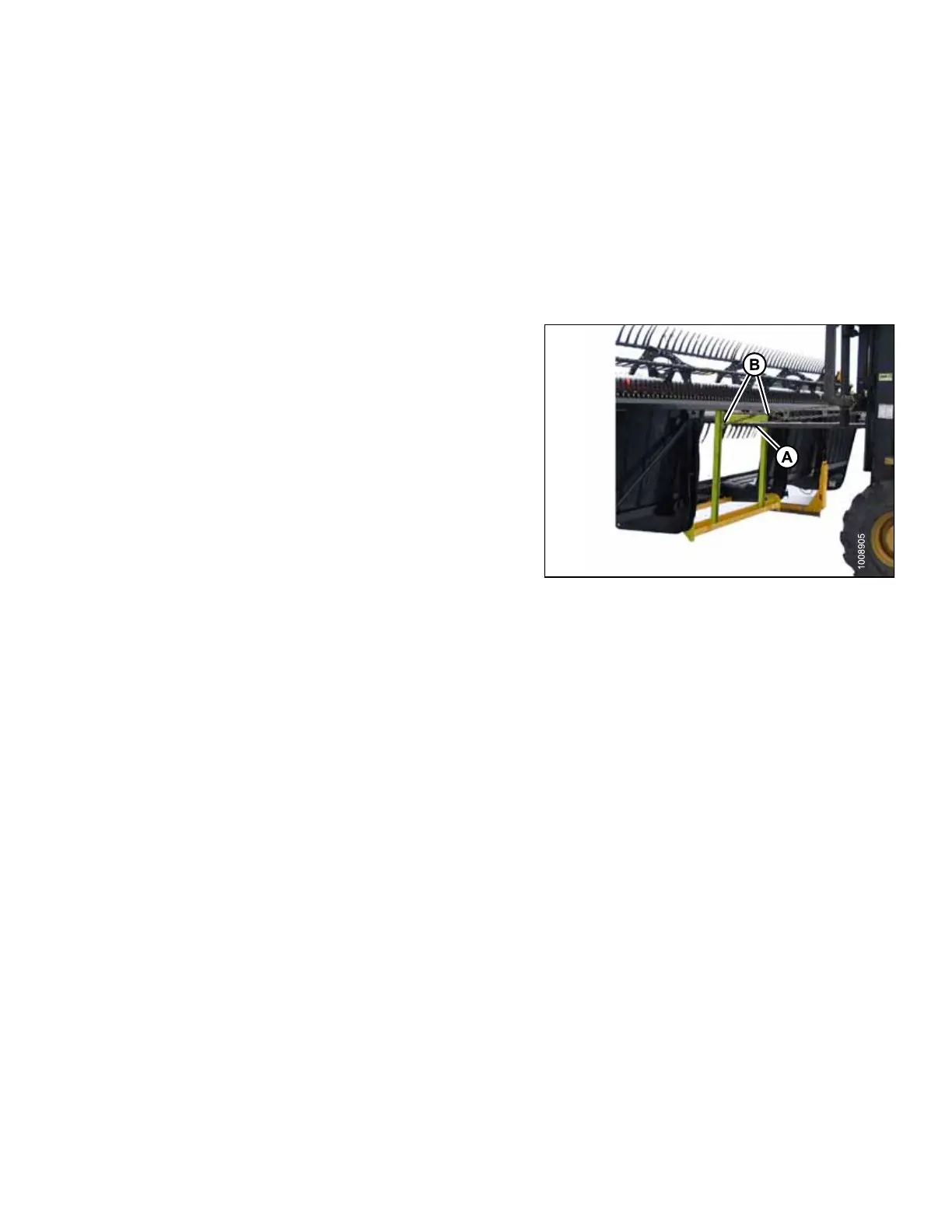

Figure 2.4: Single-Reel Header
1. Choose an area with level ground.
2. Approach header from its underside and place forks
under top of shipping frame (A).
3. Attach a chain (B) at each end of frame and secure
other end to lifting vehicle.
