3.7 Closing Endshield

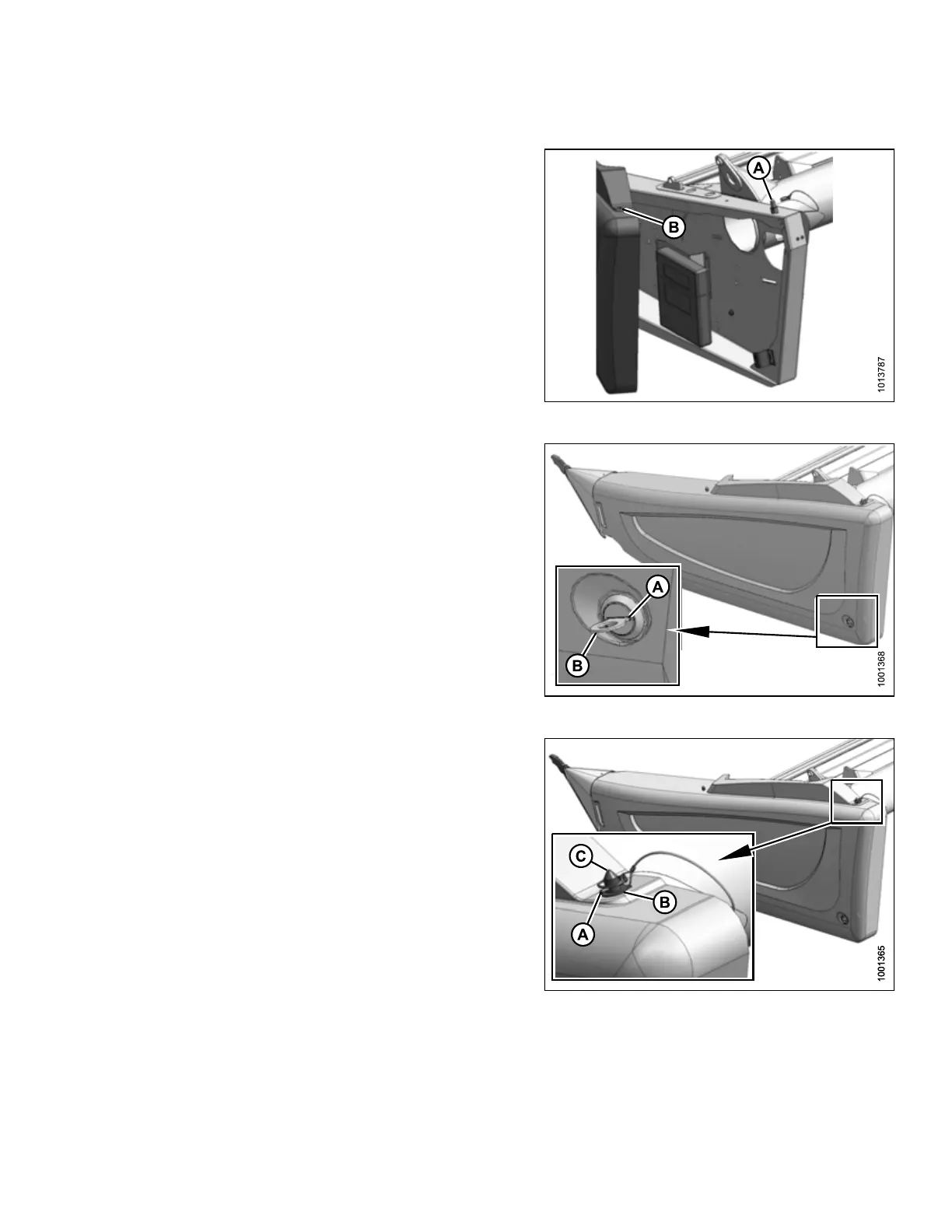

Figure 3.26: Left Endshield
1. Maintain forward pressure and swing the rear of the
endshield towards the header.
2. Lift the endshield and engage pin (A) located on the top
of the endsheet frame with the hole in endshield (B).
Figure 3.27: Left Endshield
3. Push in the endshield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).
Figure 3.28: Left Endshield Pin
5. Replace tool (B) and lynch pin (A) on top pin (C).
