214328 35 Revision A
4 Attaching Header to Windrower
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.

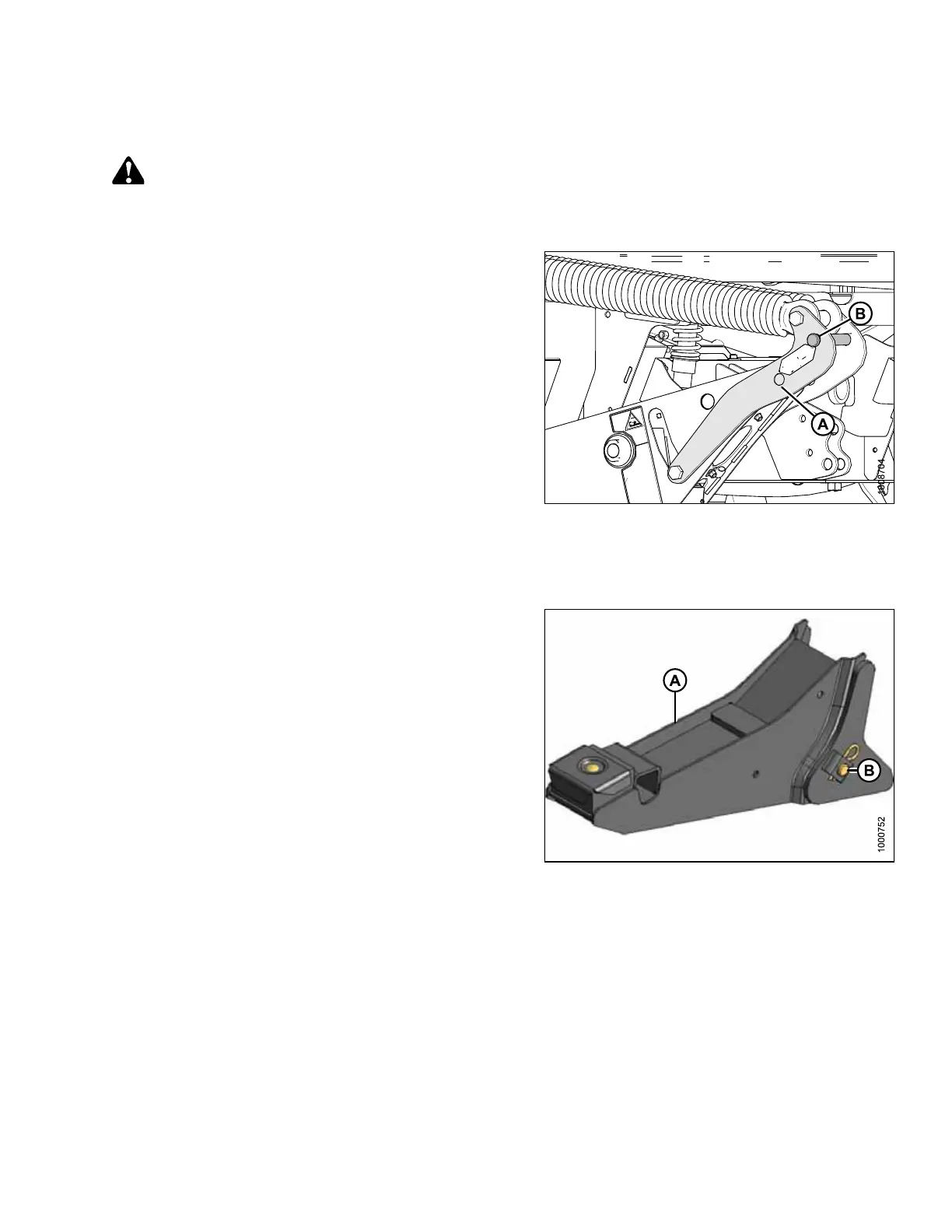

Figure 4.1: Header Float Linkage
IMPORTANT:
To prevent damage to lift system when lowering header lift
linkages without a header or weight box attached to
windrower, ensure that float engagement pin is installed in
storage location (B) and NOT installed at hole location (A).
NOTE:
If header boots (supplied with header) are already installed to windrower lift linkage, proceed to Step 5, page 36.
Figure 4.2: Header Boot
1. Remove hairpin to remove clevis pin (B) from boot (A).
