214328 24 Revision A
3.2 Attaching Cam Arms
To attach reel cam arms, follow these steps:

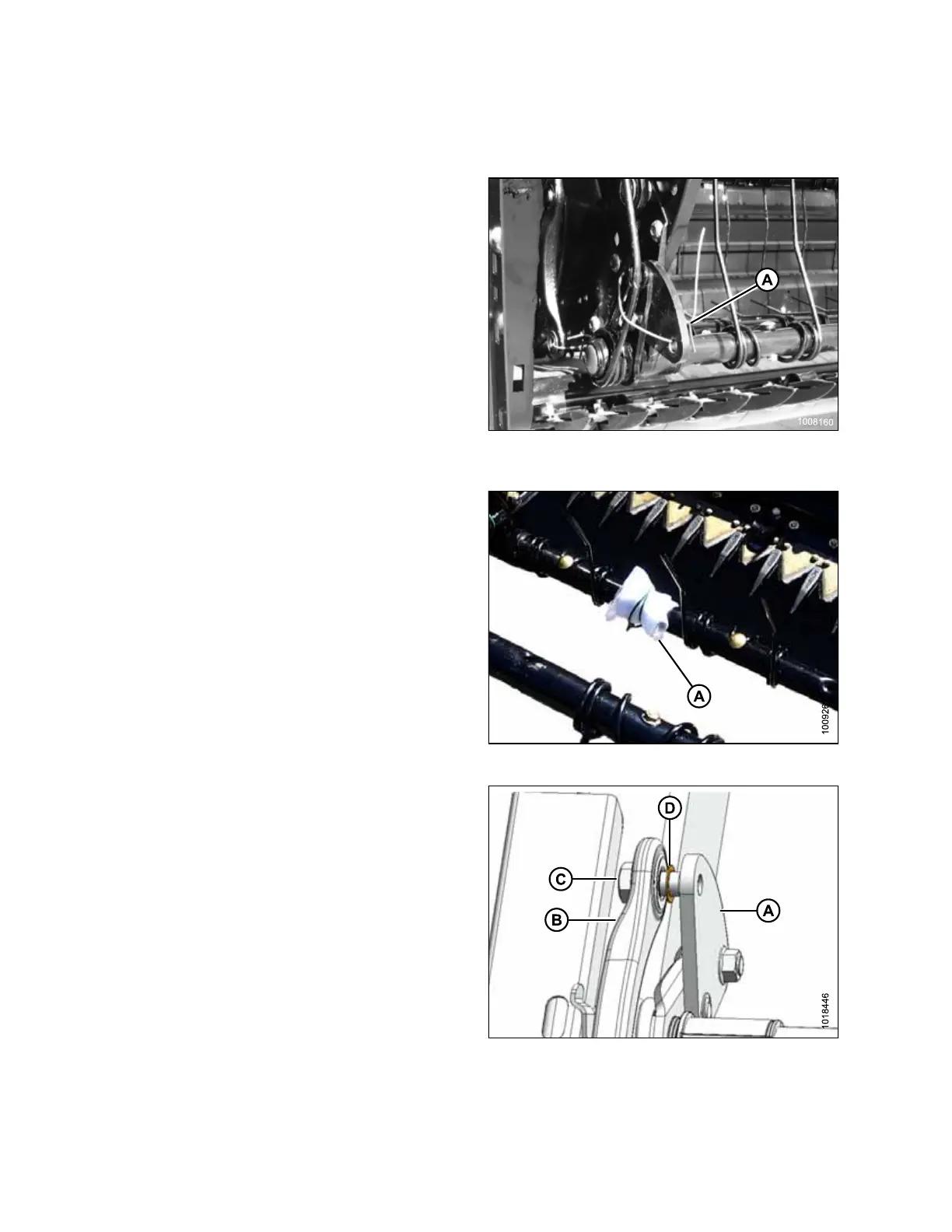

Figure 3.14: Disconnected Cam Links and
Shipping Wire
1. Rotate reel manually to access the tine tube cranks (A)
that are not connected to cam links.
2. Remove shipping wires one row at a time.
NOTE:
To prevent reel cams from rotating over center, remove
shipping wires one row at a time.
Figure 3.15: Hardware Bag Right Reel
3. Remove bag of hardware (A) from tine bar. It contains
hardware for cam links and endshields.
Figure 3.16: Tine Bar Crank and Link
4. Rotate tine tube crank (A) and position link (B) so
attachment holes in bar crank are aligned with hole
in link.
5. Install bolt (C) in link, and position shim (D) on bolt so
that shim is between link and tine bar crank.
NOTE:
Bolts are precoated with Loctite
®
, so no further locking
method is required.
6. Realign link (B) and tine bar crank (A), and thread in
bolt (C).
7. Repeat for remaining tine bars and torque bolts to
165 Nm (120 lbf·ft).
ASSEMBLING HEADER
