3 Assembling Header
Perform all procedures in the order they are listed.
3.1 Attaching Reel Lift Cylinders
Unless otherwise stated, the following procedure applies to single- and double-reel headers.

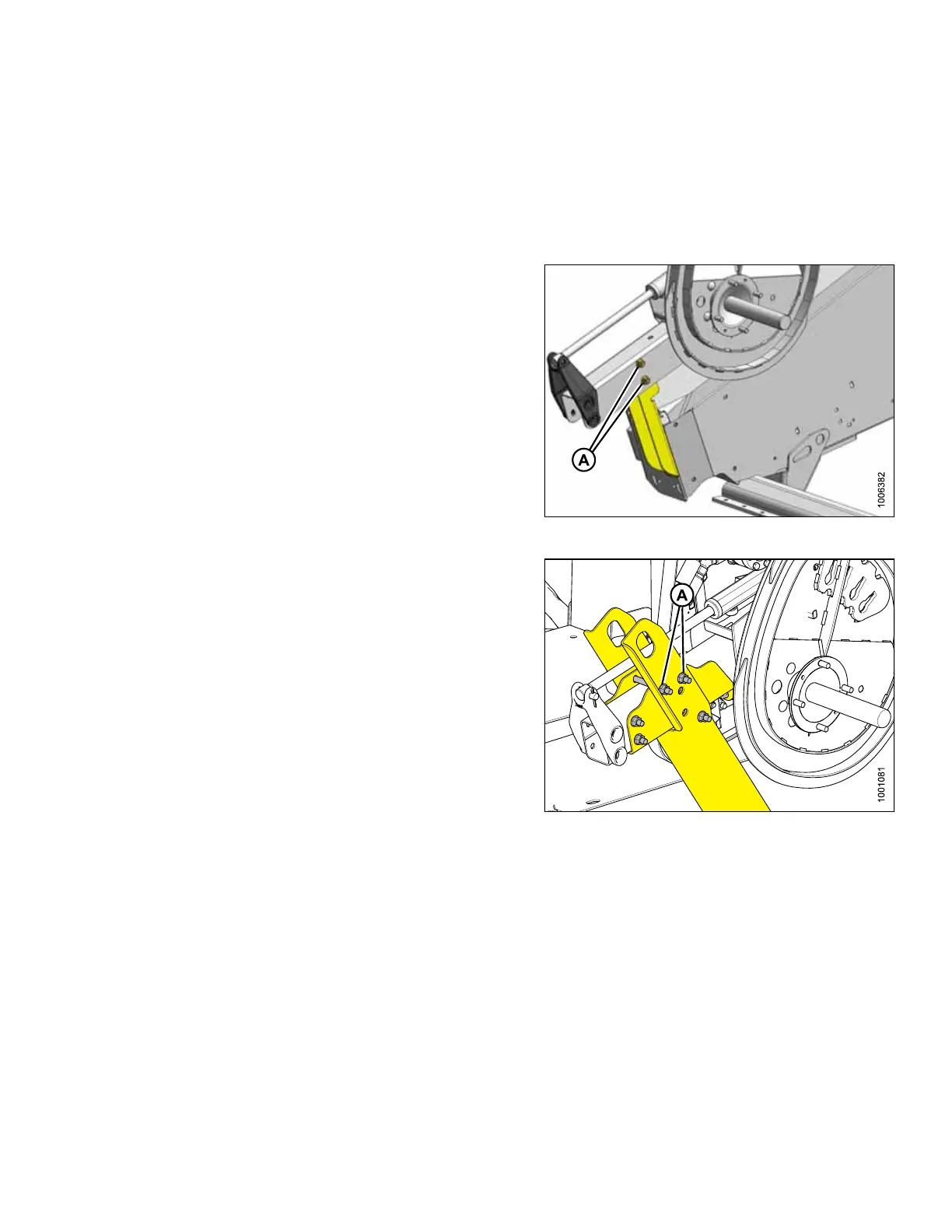

Figure 3.1: Reel Outboard Support Arm
1. Remove two top bolts (A) on outboard reel arm
supports. Repeat for opposite side.
Figure 3.2: Reel Center Arm: Double-Reel
Header
2. Double-reel headers: Remove two top bolts (A) on
center reel arm to allow center reel arm to move.
To Next Page
