3.9 Positioning Transport Lights
Transport lights are located on each outboard reel arm.

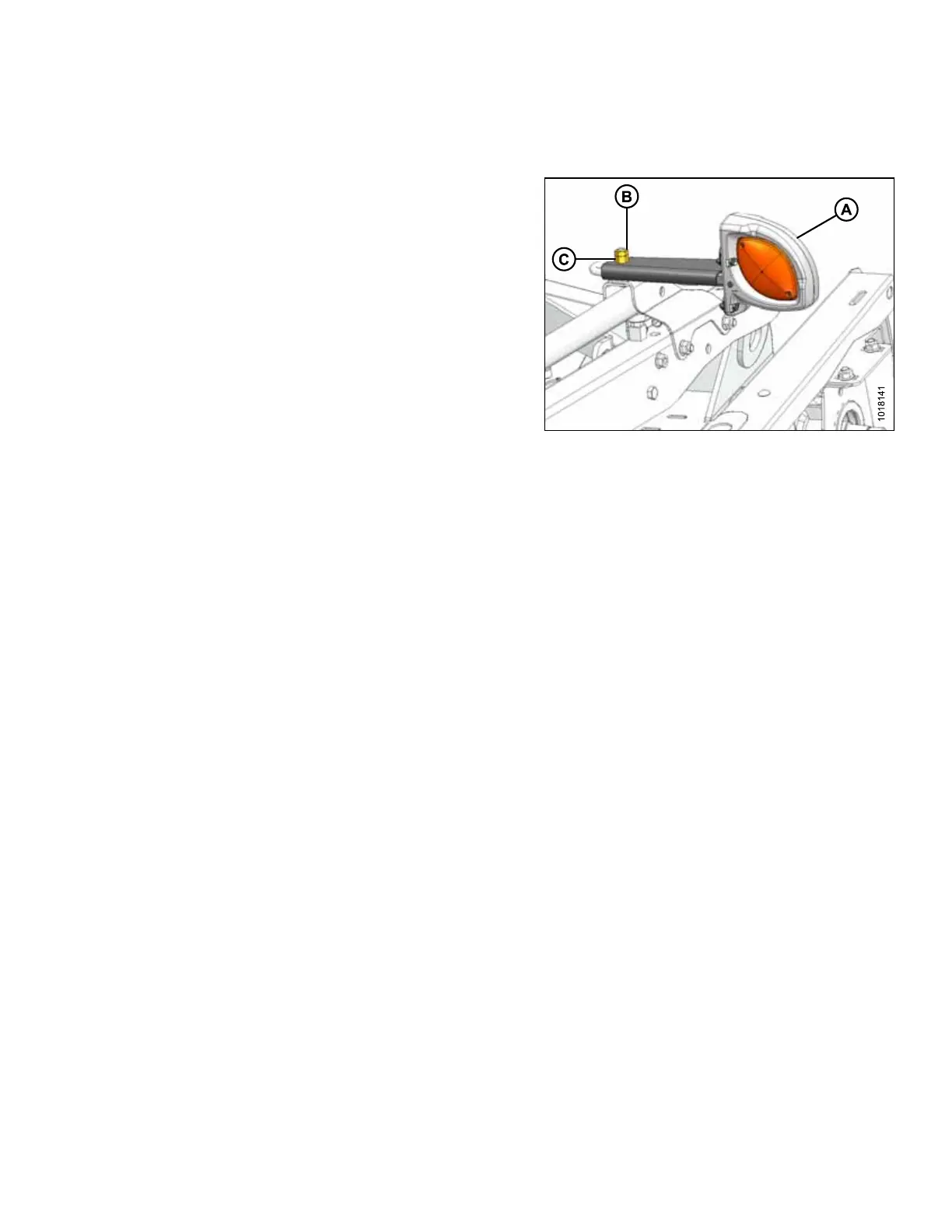

Figure 3.30: Transport Light
1. Position light (A) perpendicular to header. Light arm
should move with normal hand force yet maintain its
position. If not, proceed to next step.
2. Loosen jam nut (B) on light attachment bolt, and adjust
hex nut (C) as required. Tighten jam nut (B).
3. Repeat above for opposite side.
ASSEMBLING HEADER
