MacDon D65 - Opening Endshield

214328 25 Revision A
3.3 Opening Endshield

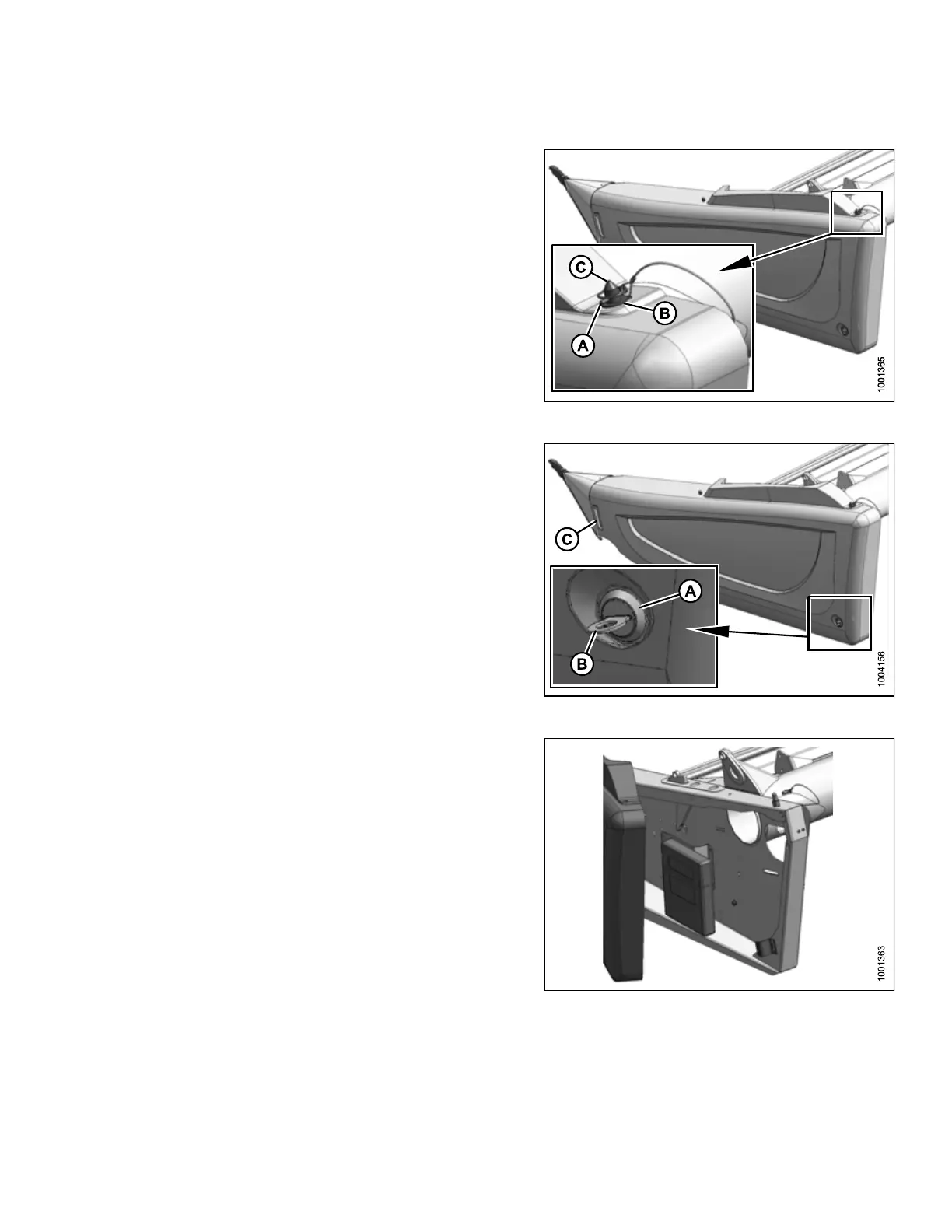

Figure 3.17: Left Endshield
1. Remove lynch pin (A) and tool (B) from pin (C) at top
rear of endshield.
Figure 3.18: Left Endshield
2. Use tool (B) to unlock latch (A) at lower rear corner
of endshield.
3. Lift endshield at aft end to clear pin at top rear of
endshield.
4. Swing endshield out and away from header while
maintaining forward pressure to prevent endshield from
slipping out of tab (C) at front of endsheet.
Figure 3.19: Left Endshield Open
IMPORTANT:
Do NOT force endshield once it has reached its end of
travel or damage to endshield structure may result. The
endshield is designed to open sufficiently to allow access
to drive system and manual case.
NOTE:
To access the knife drive box, carefully disengage front
of endshield from tab at front of endsheet and swing
front of endshield away from header.
