3.8 Installing Crop Divider Rods
1. Remove divider rods from shipping location on header endsheet.

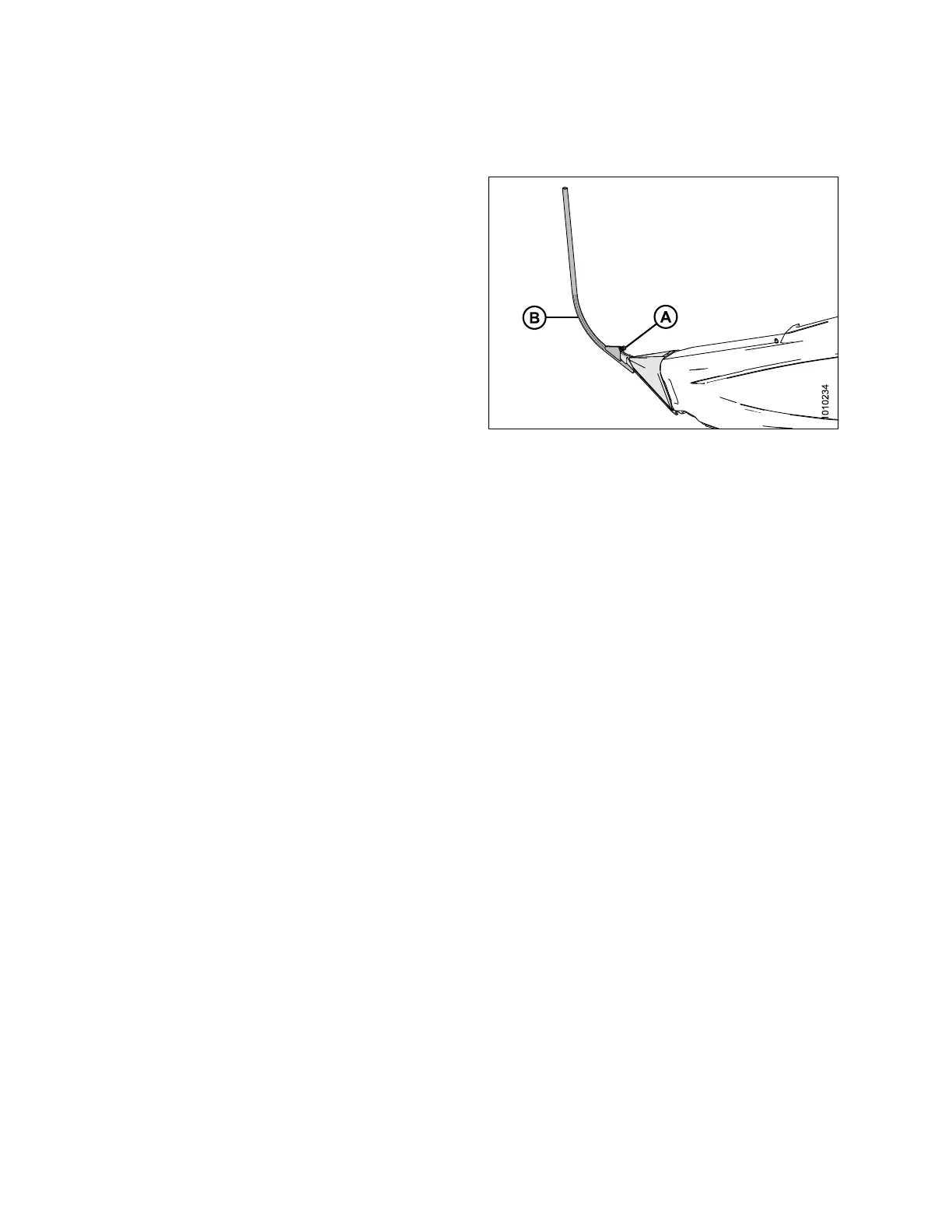

Figure 3.29: Divider Rod on Crop Divider
2. Position crop divider rod (B) on tip of crop divider as
shown, and tighten bolt (A).
3. Repeat procedure at opposite end of header.
ASSEMBLING HEADER
