4.2 Connecting Hydraulics
M150, M200, and M205 windrowers may not come equipped with D Series header and reel hydraulics as
shown below.
NOTE:
Windrowers equipped with D Series hydraulics have four header-drive hoses on the left side and up to five reel-
drive hoses on the right.

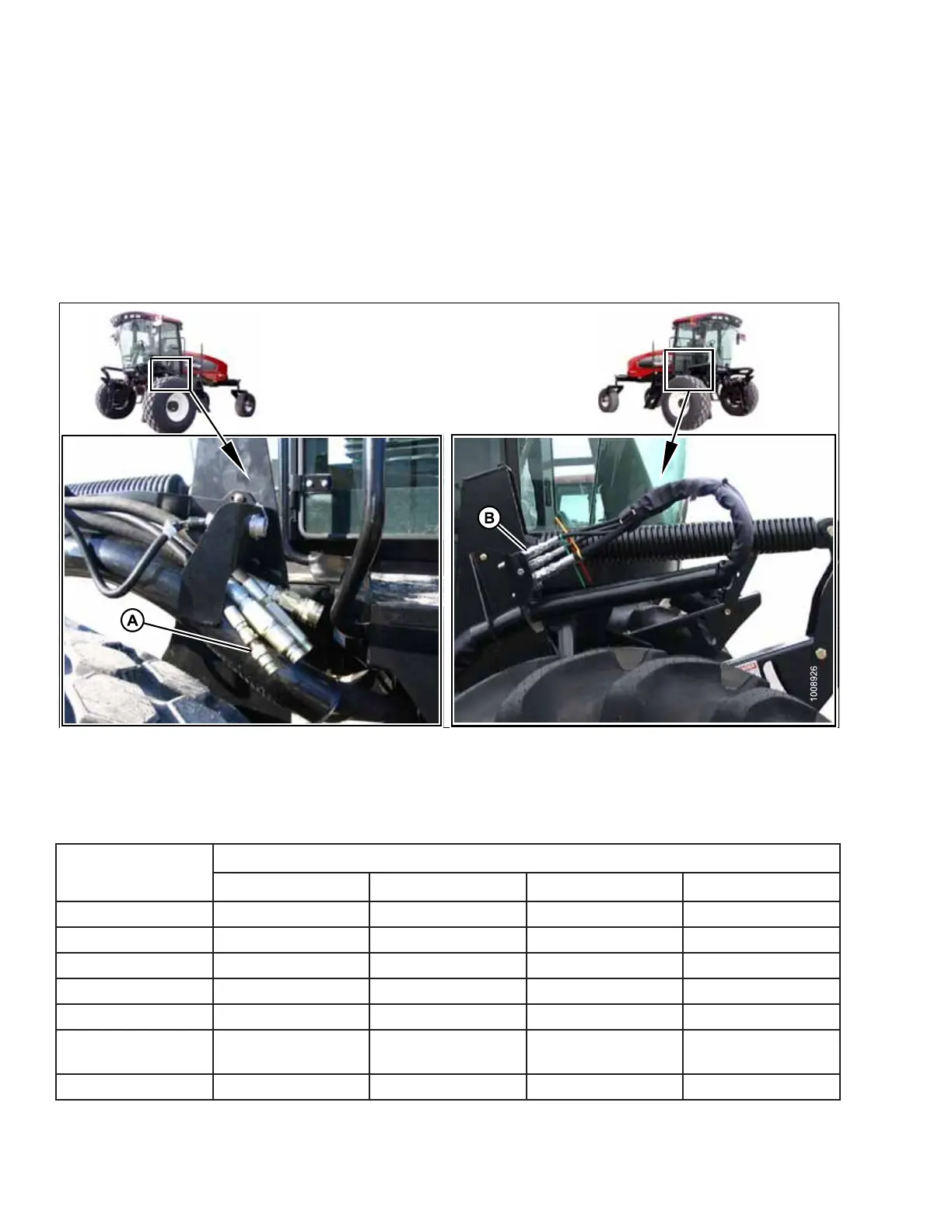

Figure 4.24: D Series Hydraulics
A - Header-Drive Hydraulics B - Reel-Drive Hydraulics
1. If not already equipped, install optional drive/lift kits as shown in Table 4.1, page 44. If windrower is equipped,
proceed directly to Step 12, page 46.
Table 4.1 Optional Drive/Lift Kits for D Series Header
Windrower
Part Numbers for D Series Draper Header Optional Kits
Reel Drive/Lift Reel Fore-Aft
Reverser
Coupler
M100
MD #B5577 MD #B5577
––
M105
MD #B5577 MD #B5577
––
M150
MD #B5577 MD #B5577 MD #B4656
–
M155 MD #B5577 MD #B5577 MD #B4656
–
M155E4
MD #B5577 MD #B5577 MD #B4656
–
M200
MD #B5577
MD #B4651
MD #B5577 MD #B4656
–
M205
MD #B5491 MD #B5496 MD #B5492 MD #B5497
ATTACHING HEADER TO WINDROWER
