Connect header-drive hydraulics and electrical harness to header as follows:

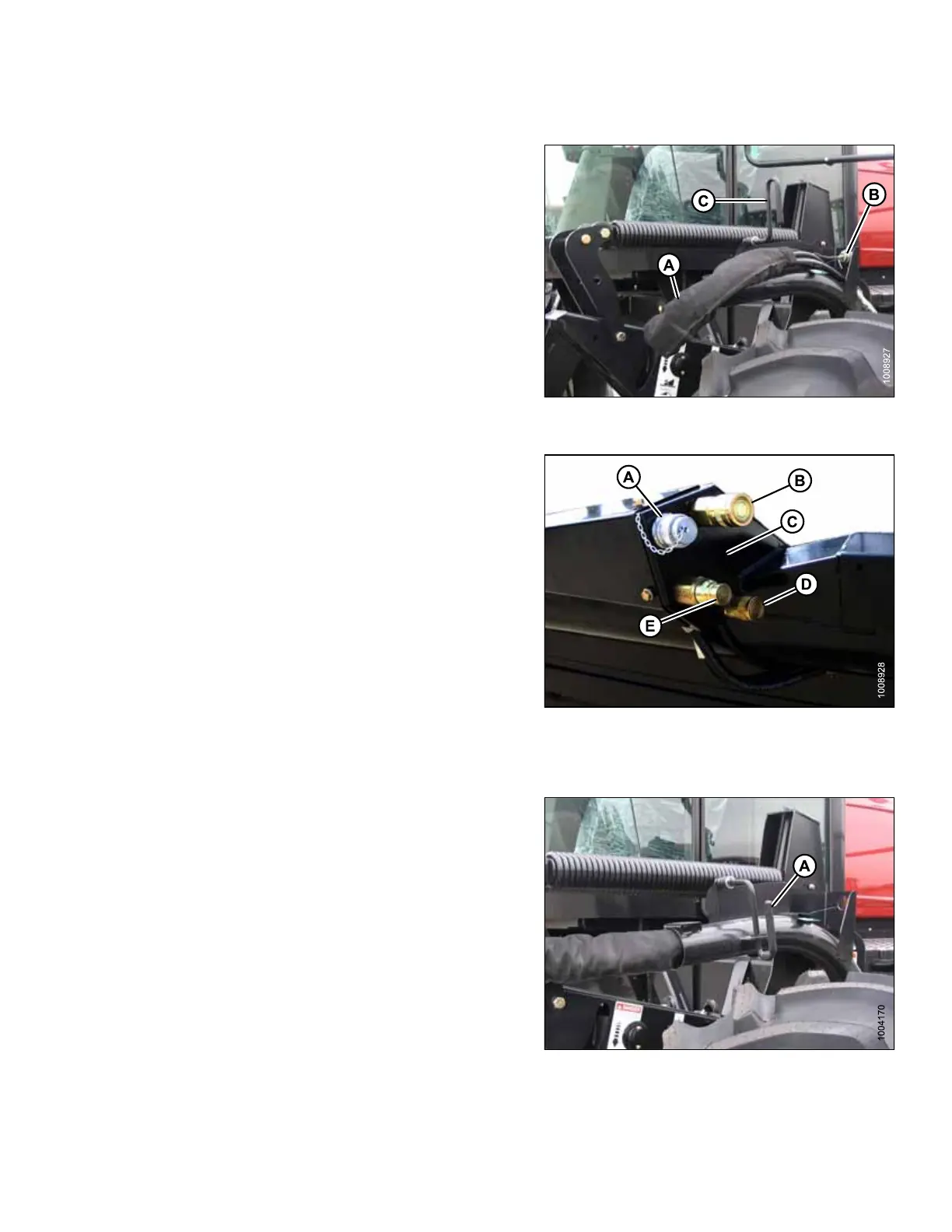

Figure 4.25: Header-Drive Hydraulics and
Electrical Harness
2. Check connectors and clean if required.
3. Disengage and rotate lever (C) counterclockwise to
fully-up position.
4. Remove cap securing electrical connector (B) to frame.
5. Move hose bundle (A) from windrower around hose
support on header.
Figure 4.26: Header Receptacles
A - Electrical Connector B - Knife Drive
C - Case Drain (Double Knife) D - Draper Drive
E - Return
6. Push each hose connector onto receptacle until collar
on receptacle snaps into lock position.
7. Remove cover on electrical receptacle (A).
8. Push electrical connector onto receptacle and turn
collar on connector to lock it in place.
9. Attach cover to mating cover on windrower
wiring harness.
Figure 4.27: Hose Support
10. Lower lever (A), and engage in down position.
ATTACHING HEADER TO WINDROWER
