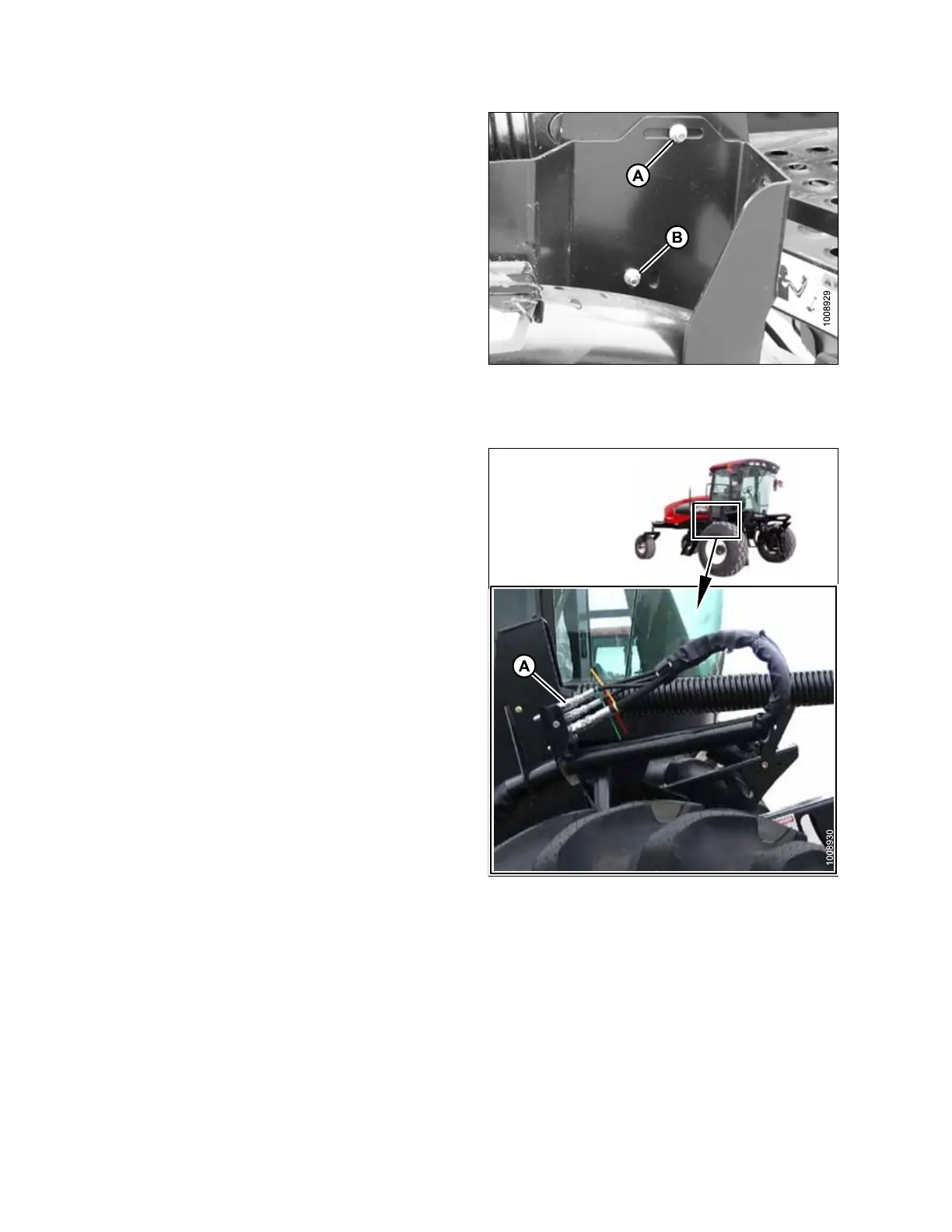

Figure 4.28: Hose Support
11. Check that hose support is positioned so that top
bolt (A) is midway in slot, and lower bolt (B) is in forward
hole. Loosen bolts and adjust as required.
Connect reel-drive hydraulics (A) as follows:
Figure 4.29: Reel-Drive Hydraulics
12. Check connectors (A) and clean if required.
ATTACHING HEADER TO WINDROWER
