214328 47 Revision A

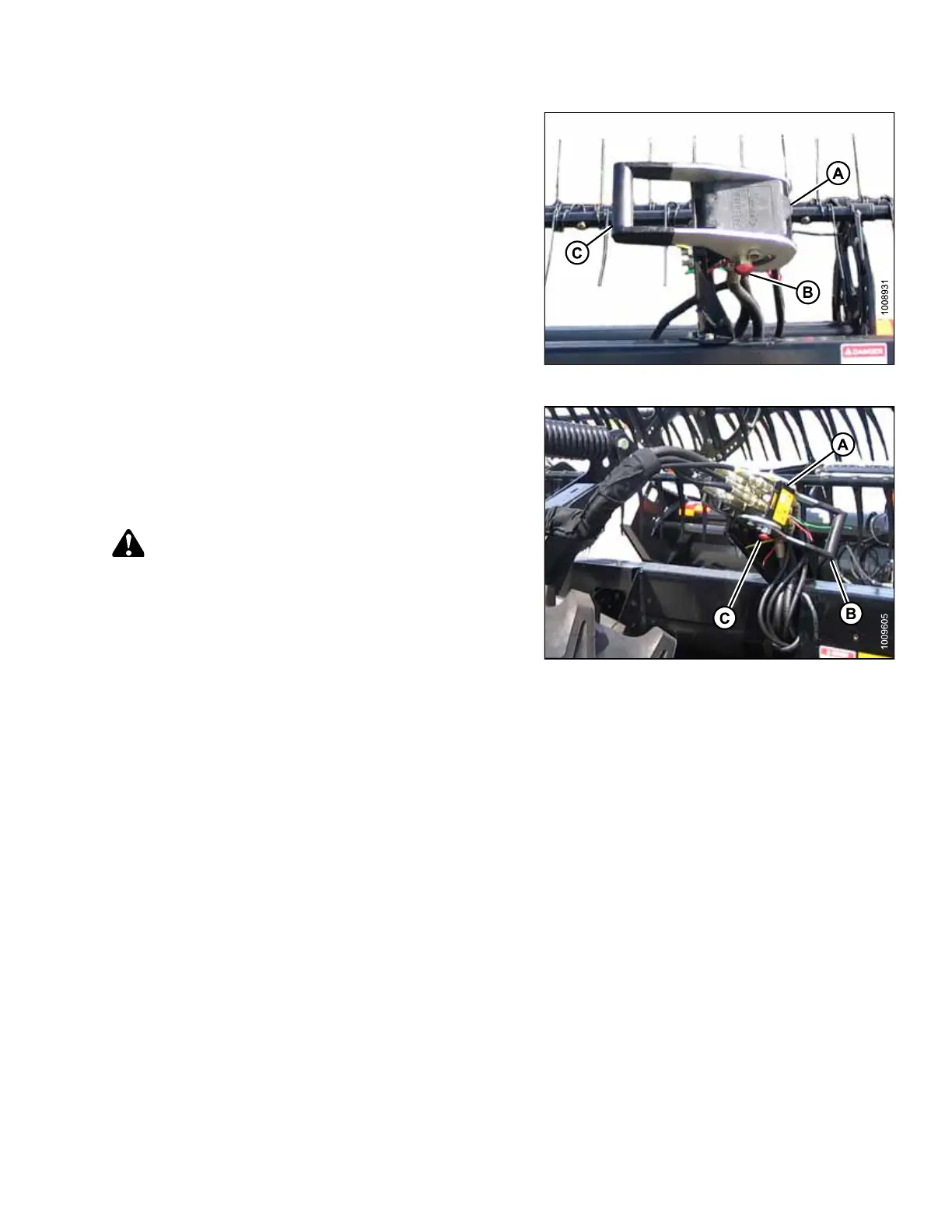

Figure 4.30: Header Receptacle
13. Open cover (A) on header receptacle.
14. Push in lock button (B) and pull handle (C) to half-
open position.
Figure 4.31: Multicoupler on Header
15. Remove hose bundle with multicoupler (A) from
windrower and position onto header receptacle.
16. Push handle (B) to engage pins on connector.
17. Push handle away from hoses until lock button (C)
snaps out.
CAUTION
Check to be sure all bystanders have cleared the area.
18. Start engine and raise and lower header and reel a few
times to allow trapped air to pass back to reservoir.
19. Stop engine.
NOTE:
It is not necessary to bleed system by loosening fittings.
ATTACHING HEADER TO WINDROWER
