CAUTION
Clear the area of other persons, pets, etc. Keep children away from machinery. Walk around the machine
to be sure no one is under, on, or close to it.
CAUTION
Before investigating an unusual sound or attempting to correct a problem, shut off engine, engage
parking brake, and remove key.
To run-up the header, follow these steps:
1. Start windrower and run header slowly for 5 minutes, watching and listening FROM THE OPERATOR’S SEAT
for binding or interfering parts.
NOTE:
Reel and drapers will not operate until oil is flowing freely through lines.
2. Check rotation of knife drive pulley(s).

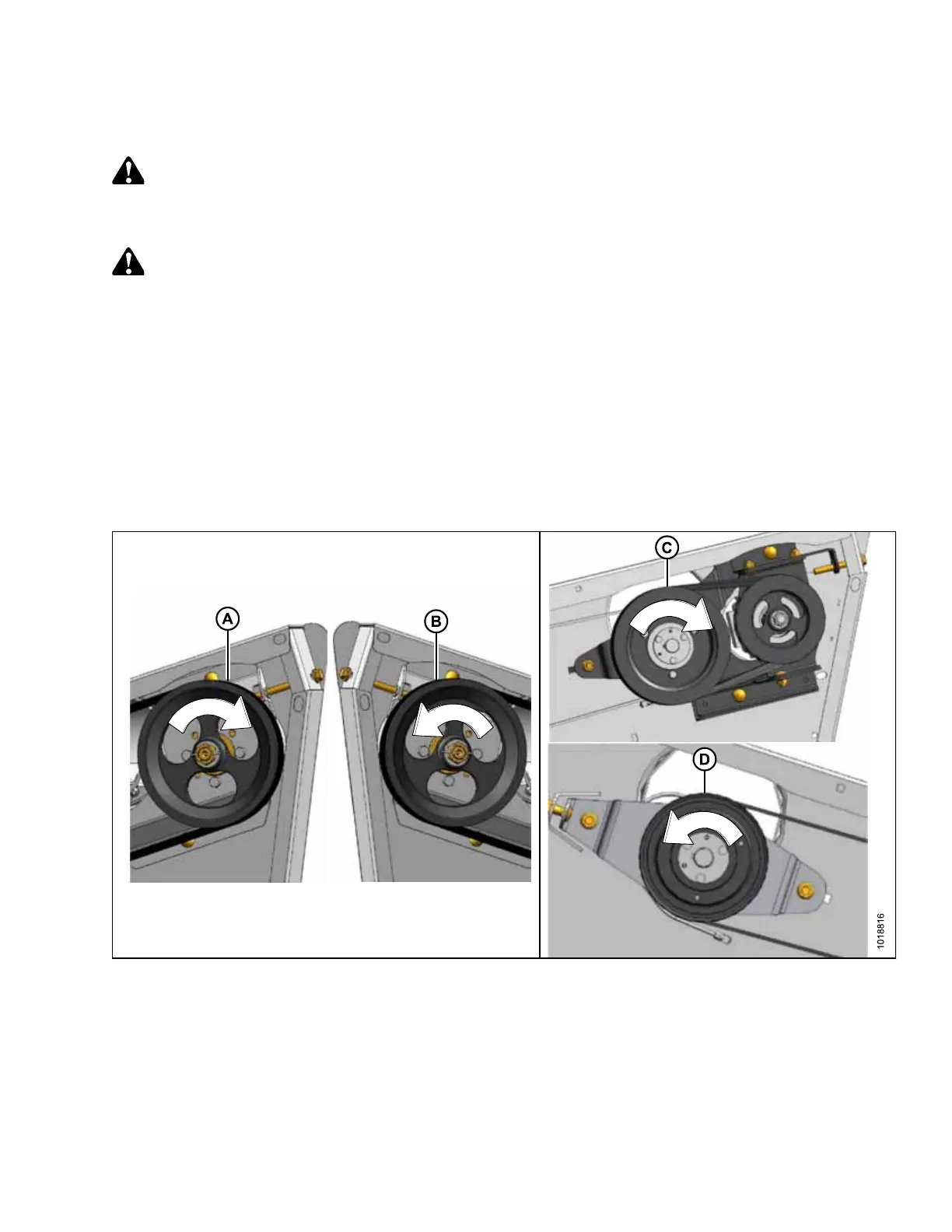

Figure 6.1: Knife Drives
A - Untimed Drive Single and Double Knife Left Side C - Timed Drive Double Knife Left Side
B - Untimed Drive Double Knife Right Side D - Timed Drive Double Knife Right Side
