214328 18 Revision A

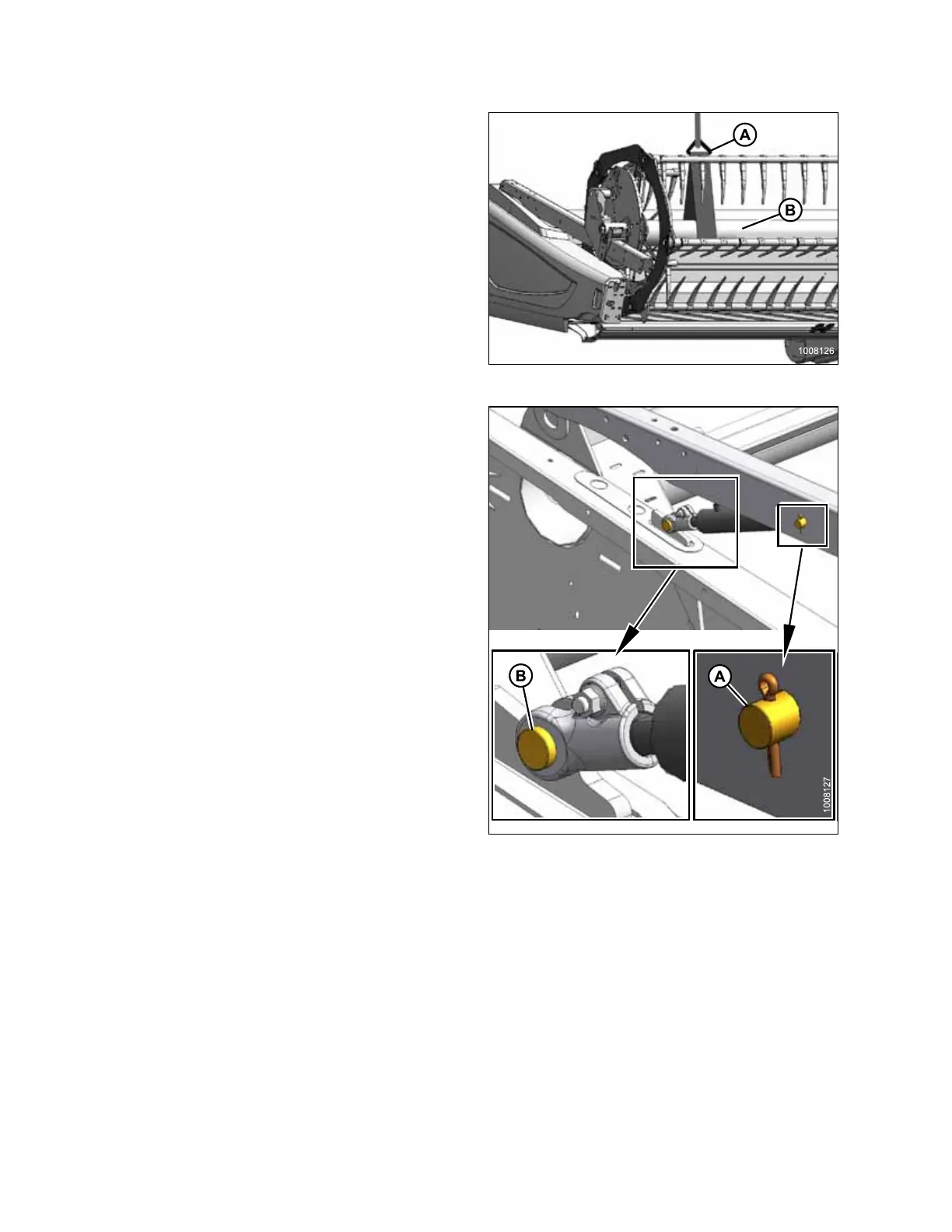

Figure 3.3: Right End Reel Lift
3. Position sling (A) around reel tube (B) close to outboard
end of reel, and attach sling to a forklift (or equivalent).
4. Remove shipping wire/banding from reel lift cylinder.
Figure 3.4: Reel Right Arm
5. Lift reel, and remove pins from endsheet and reel arm.
6. Align reel lift cylinder mounting holes with lug on
endsheet and hole in reel arm.
7. Secure cylinder to endsheet and reel arm with clevis
pins (A) and (B) as shown.
• Insert cotter pin into clevis pin (A) on OUTBOARD
side of reel arm
• Insert cotter pin into clevis pin (B) on INBOARD side
of endsheet
ASSEMBLING HEADER
