214328 19 Revision A

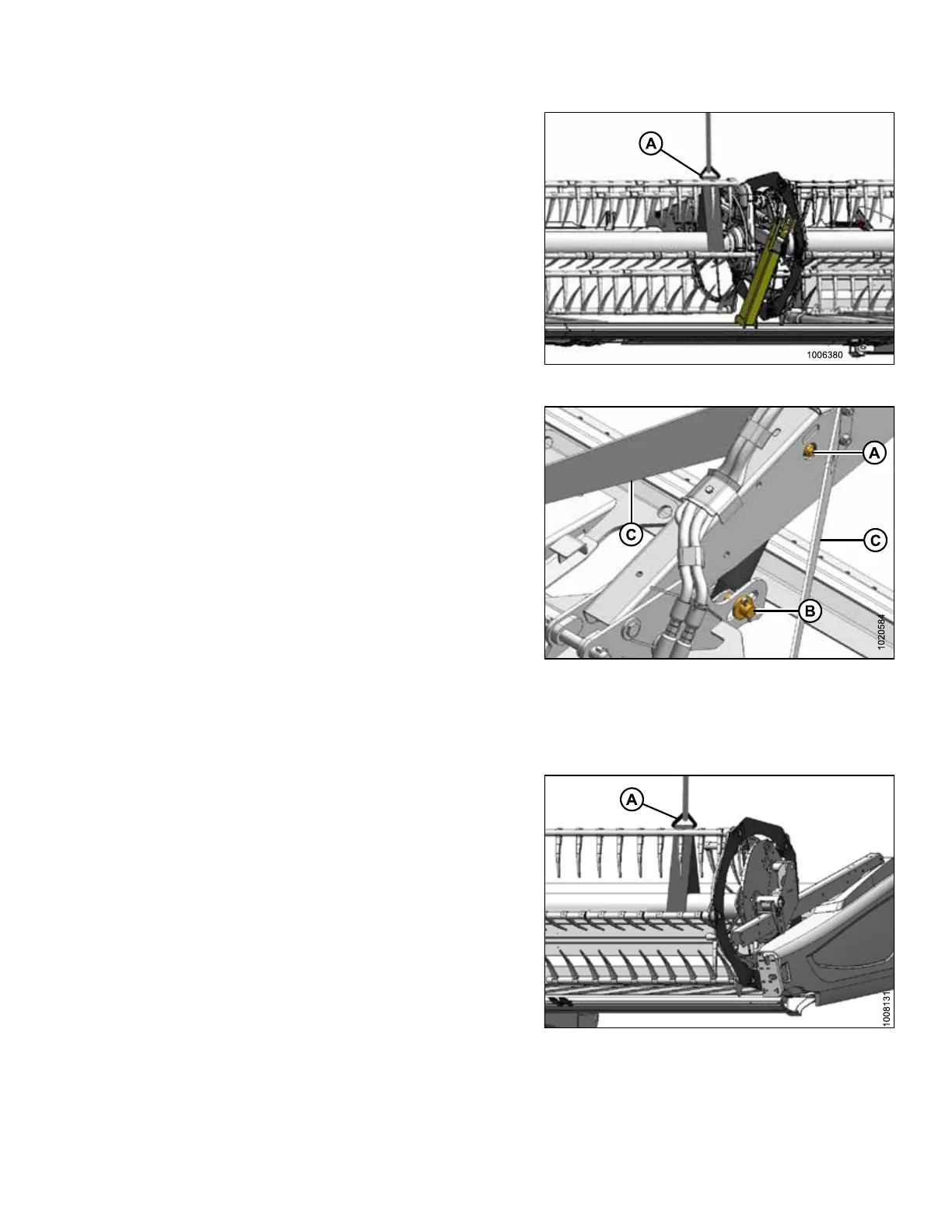

Figure 3.5: Lifting Double Reel
8. Double reel: Position sling (A) around reel tube near
reel center support arm. Raise lifting device to relieve
load on shipping supports.
Figure 3.6: Reel Arm Braces
9. Double reel: Lift reel to gain access to center lift
cylinder.
10. Double reel: Remove shipping wire and banding from
reel center lift cylinder. Remove socket head bolt and
nut from cylinder rod.
11. Double reel: Lift reel so that hole in lift cylinder rod
lines up with mounting hole (A) in reel arm.
12. Double reel: Attach rod end of cylinder to reel arm with
socket head bolt and nut (A). Access hardware through
holes in reel arm braces (C).
13. Double reel: Torque bolt and nut (A) to 54–61 Nm
(40–45 lbf·ft).
14. Double reel: Remove pin at barrel end of cylinder.
15. Double reel: Adjust reel height so pin (B) can be
installed at barrel end of cylinder and mounting
structure.
Figure 3.7: Left End Reel Lift
16. Reposition sling (A) around reel tube near opposite
outboard reel arm.
17. Remove shipping wire and banding from reel lift
cylinder.
ASSEMBLING HEADER
