214328 12 Revision A

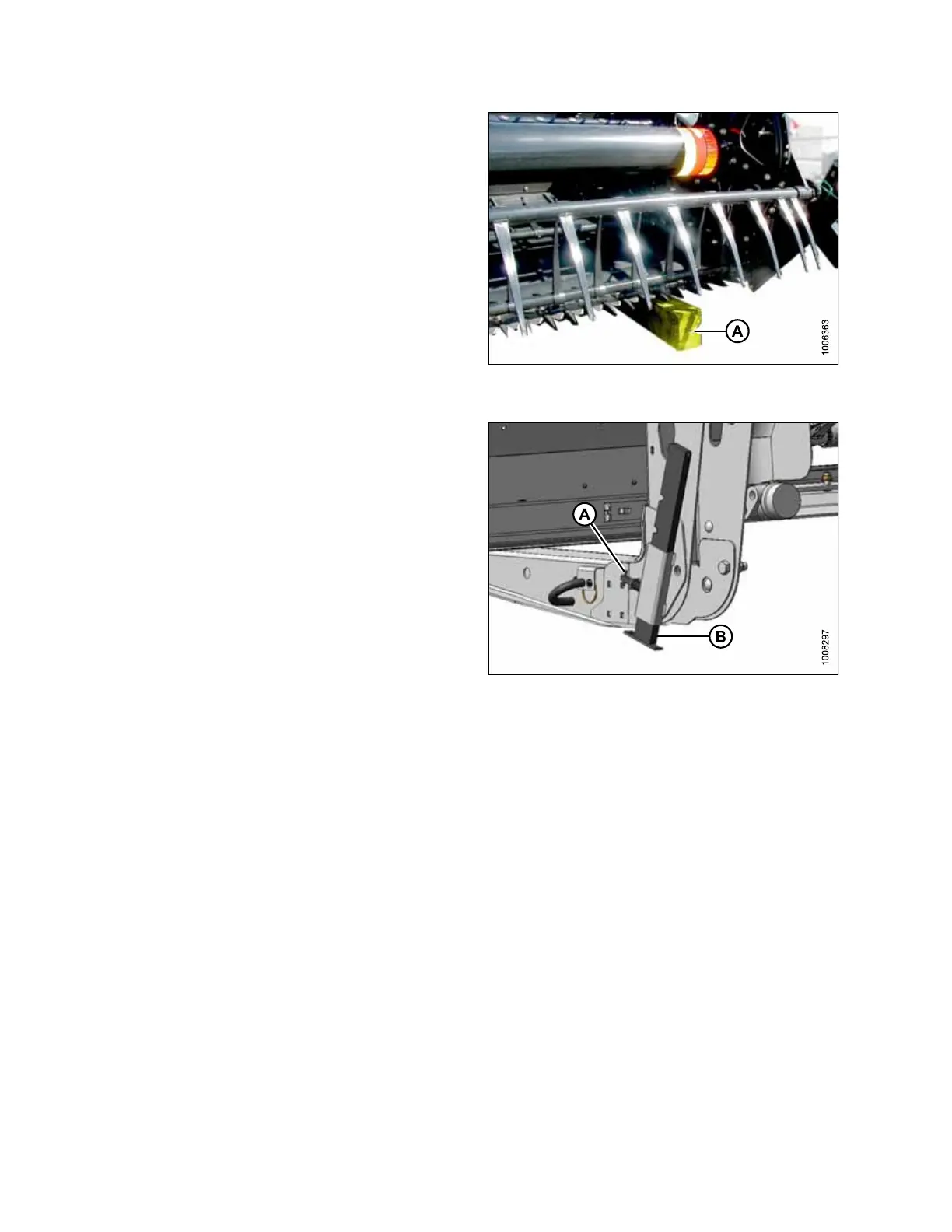

Figure 2.11: Blocks at Each End and Center
of Cutterbar
5. Place 150 mm (6 in.) blocks (A) under each end and
center of cutterbar. Lower header onto blocks.
6. Remove chain and move lifting vehicle to rear
of header.
7. Attach chain to center-link anchor on frame tube and
raise rear of header so that stand can be lowered.
Figure 2.12: Header Stand
8. Lower header stand: pull pin (A), lower stand (B), and
release pin (A) to secure stand in place.
9. Lower header onto stand.
NOTE:
If ground is soft, place a block under the stand.
10. Remove chain.
UNLOADING HEADER
