214328 22 Revision A

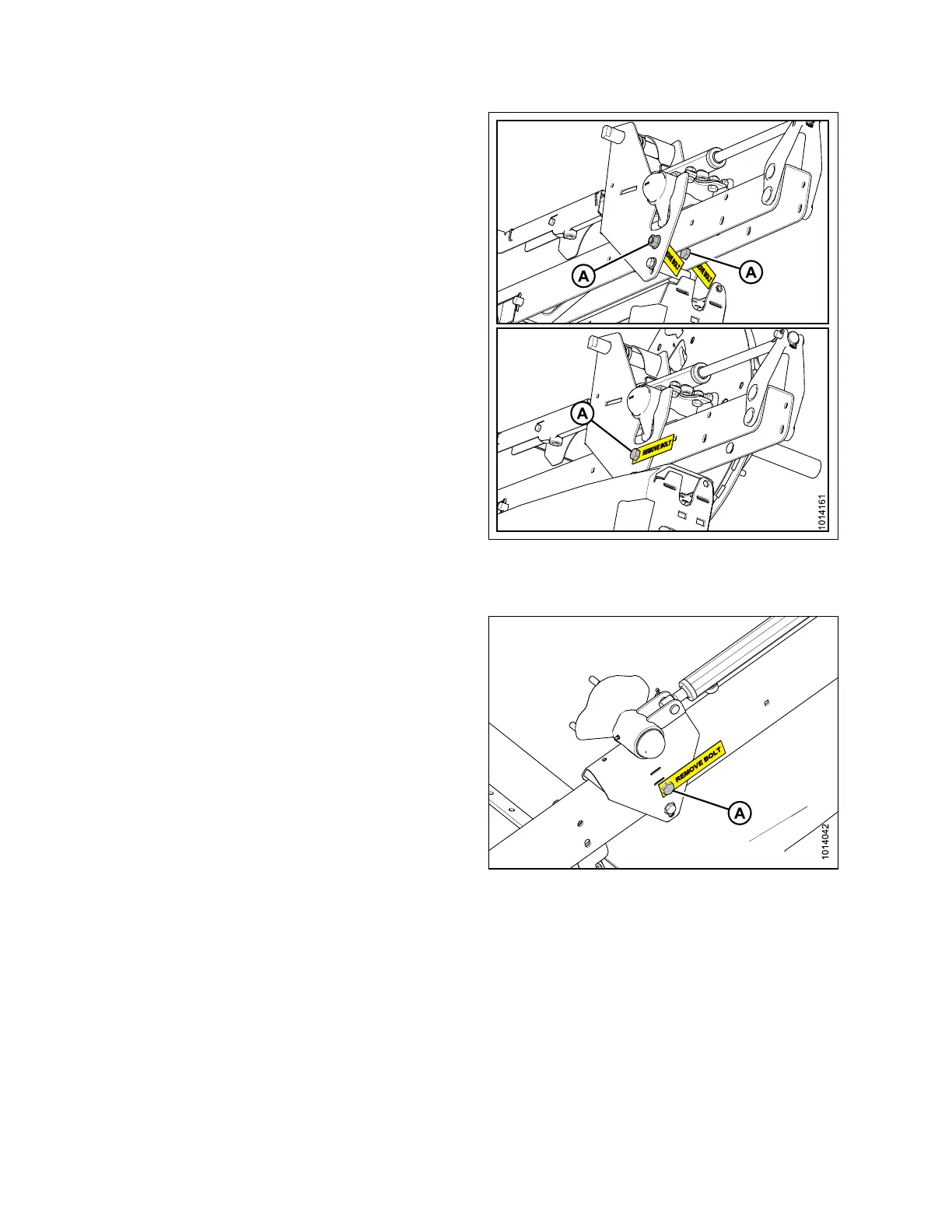

Figure 3.11: Reel Right Arm
Top Image - Single Reel
Bottom Image - Double Reel
Figure 3.12: Reel Left Arm
23. Remove brace bolts (A) and tags locking reel fore-aft
position at outer reel arms.
IMPORTANT:
To prevent damaging fore-aft cylinders or structure, do
NOT use fore-aft cylinders to assist with removing bolts.
ASSEMBLING HEADER
