214328 38 Revision A

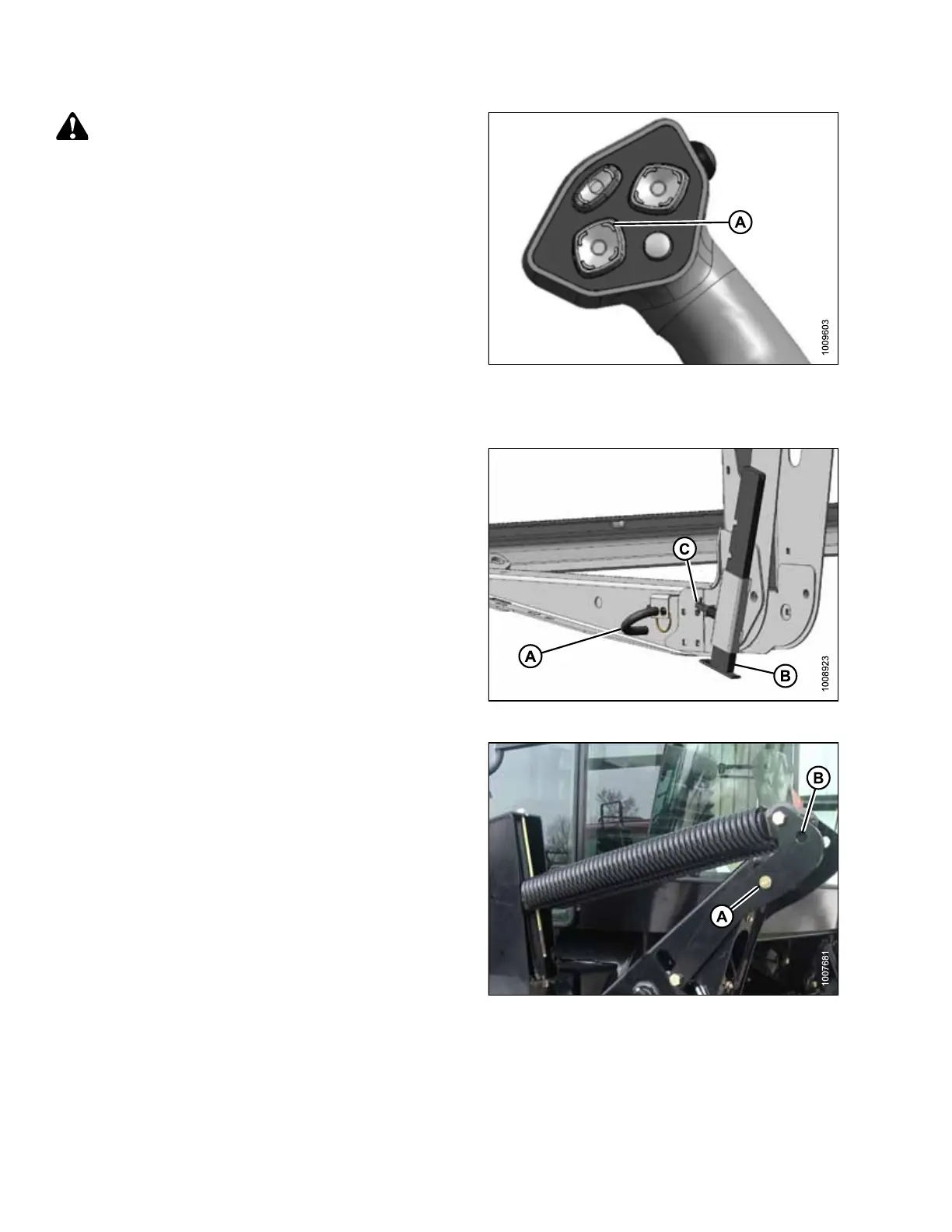

Figure 4.8: Ground Speed Lever (GSL)
CAUTION
Check to be sure all bystanders have cleared the area.
5. Start engine.
6. Raise header fully with HEADER UP switch (A) on
ground speed lever (GSL).
7. Stop engine and remove key.
8. Engage safety props on both lift cylinders.
Figure 4.9: Header Stand
9. Install pin (A) through header leg (engaging U-bracket
in header leg). Repeat for opposite side of header.
10. Raise header stand (B) to storage position by pulling
pin (C) and lifting stand into uppermost position.
Release pin (C) to secure stand in place.
Figure 4.10: Float Springs Engaged
11. Remove pin from storage position (B) in linkage and
insert into hole (A) to engage float springs. Secure with
hairpin and repeat for opposite side of windrower.
12. Disengage safety props.
ATTACHING HEADER TO WINDROWER
