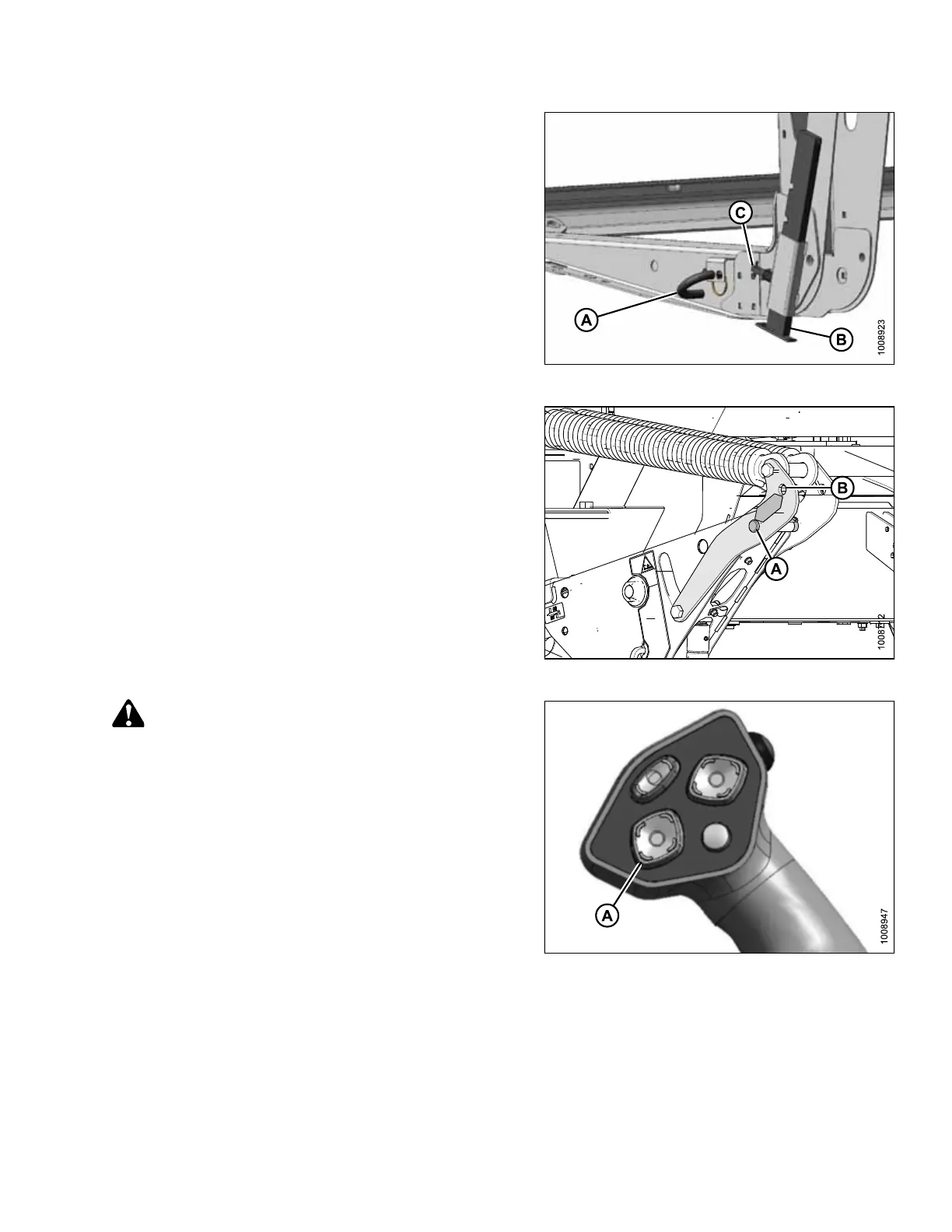

Figure 4.16: Header Stand
11. Install pin (A) through header leg (engaging U-bracket
in header leg). Repeat for opposite side of header.
12. Raise header stand (B) to storage position by pulling
pin (C) and lifting stand into uppermost position.
Release pin (C) to secure stand in place.
Figure 4.17: Float Springs Engaged
13. Remove pin from storage position (B) in linkage and
insert into hole (A) to engage float springs. Secure with
hairpin and repeat for opposite side of windrower.
14. Disengage safety props.
Figure 4.18: GSL
CAUTION
Check to be sure all bystanders have cleared the area.
15. Start engine and activate HEADER DOWN switch (A)
on GSL to lower header fully.
16. Stop engine and remove key.
