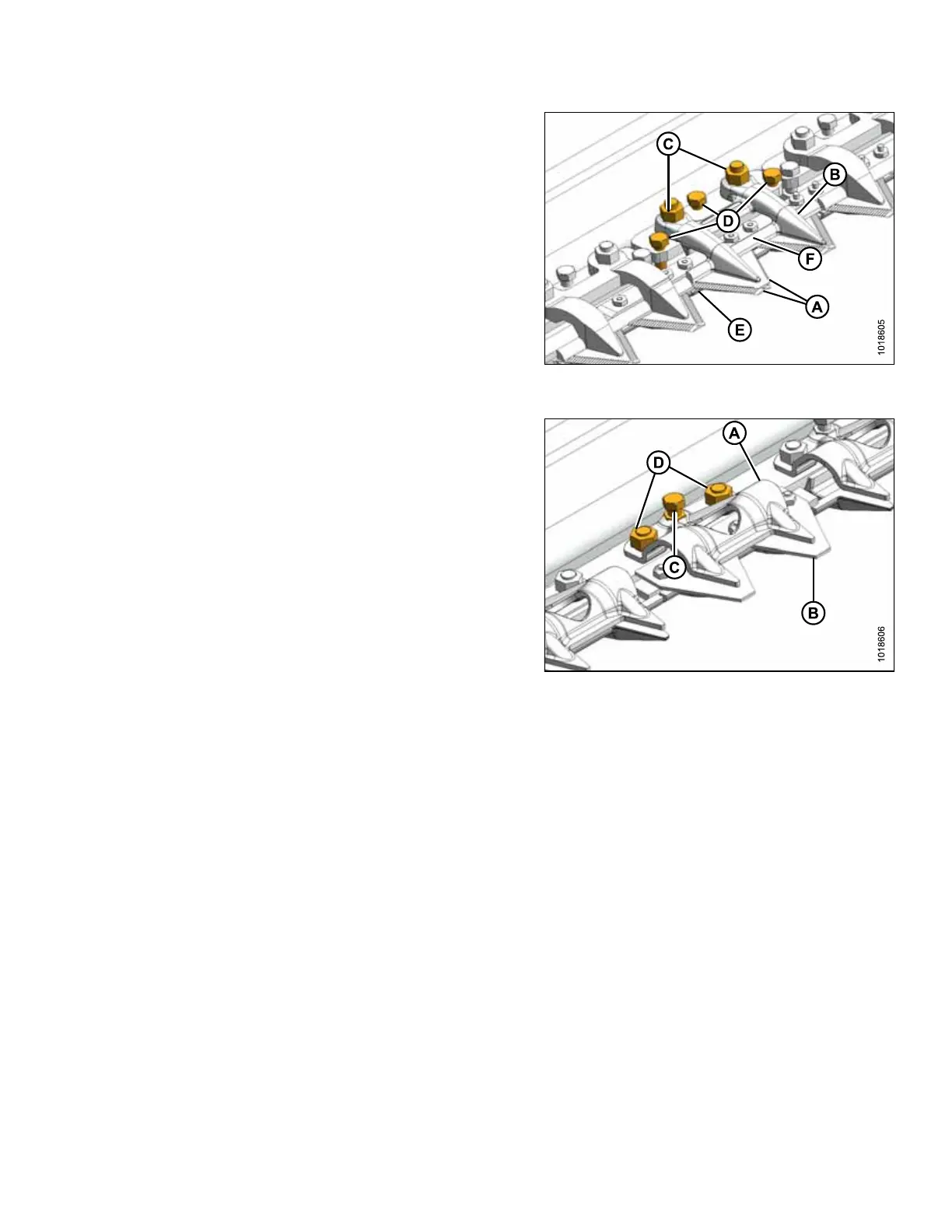

Figure 5.20: Double-Knife Center Stub Guard
Figure 5.21: Stub Guard Sheet Metal Hold-Down
Sheet metal hold-down:
9. Manually stroke knife to center section (A) under hold-
down (B) as shown.
10. Decrease clearance by turning bolt (C) clockwise to
lower front of hold-down. Clearance should be
0.1–0.6 mm (0.004–0.024 in.).
11. Increase clearance by turning bolt (C) counterclockwise
to raise front of hold-down.
NOTE:
For larger adjustments, it may be necessary to loosen
nuts (D), turn adjuster bolt (C), and then retighten nuts.
12. Torque nuts (D) to 72 Nm (53 lbf·ft) after all adjustments
are complete and specified clearances are achieved.
Refer to 5.7.2 Checking Stub Guard Hold-Downs, page
59.
