MacDon D65 - Page 71

214328 63 Revision A
Double-reel headers:

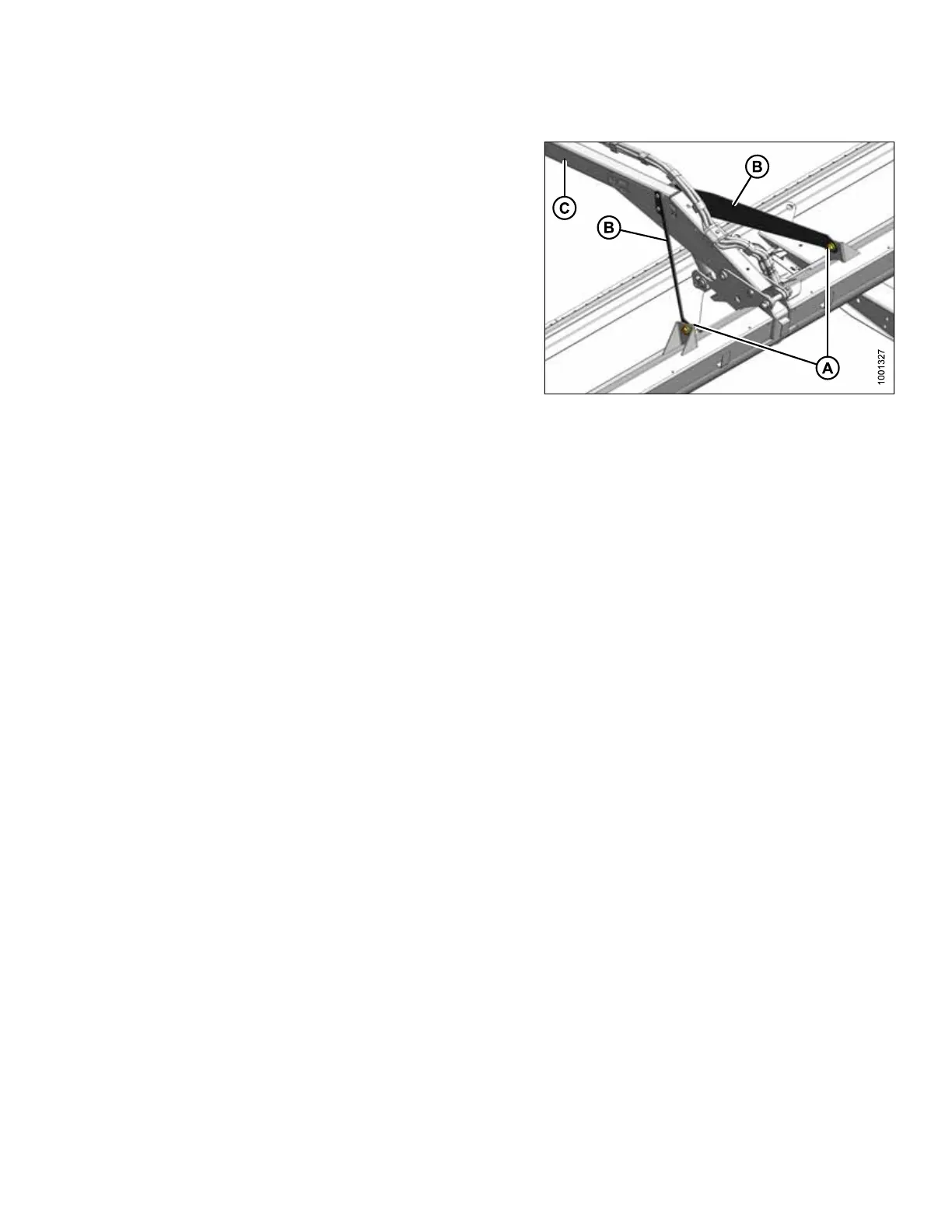

Figure 5.24: Double-Reel Center Support Arm
9. Loosen bolts (A) on braces (B) at center support arm.
10. Move forward end of reel support arm (C) laterally as
required to center reel.
11. Tighten bolts (A) and torque to 359 Nm (265 lbf·ft).
PERFORMING PREDELIVERY CHECKS
