Table 5.3 Deck Support Locations
Header
Size
Approximate Location of Support from Drive Roller (mm [in.])
AB
C
DE
15-ft. (F) 354 (13-15/16) 994 (39-1/8)
–––
20-ft. (F) 354 (13-15/16) 1662 (65-7/16)
–––
25-ft. (G)
354 (13-15/16) 1392 (54-13/16) 2427 (95-9/16)
––
30-ft. (G) 354 (13-15/16) 1773 (69-13/16) 3191 (125-5/8)
––
35-ft. (H) 354 (13-15/16) 1550 (61) 2747 (108-3/16) 3949 (155-7/16)
–
40-ft. (H) 354 (13-15/16) 1809 (71-1/8) 3258 (128-1/4) 4710 (185-7/16)
–

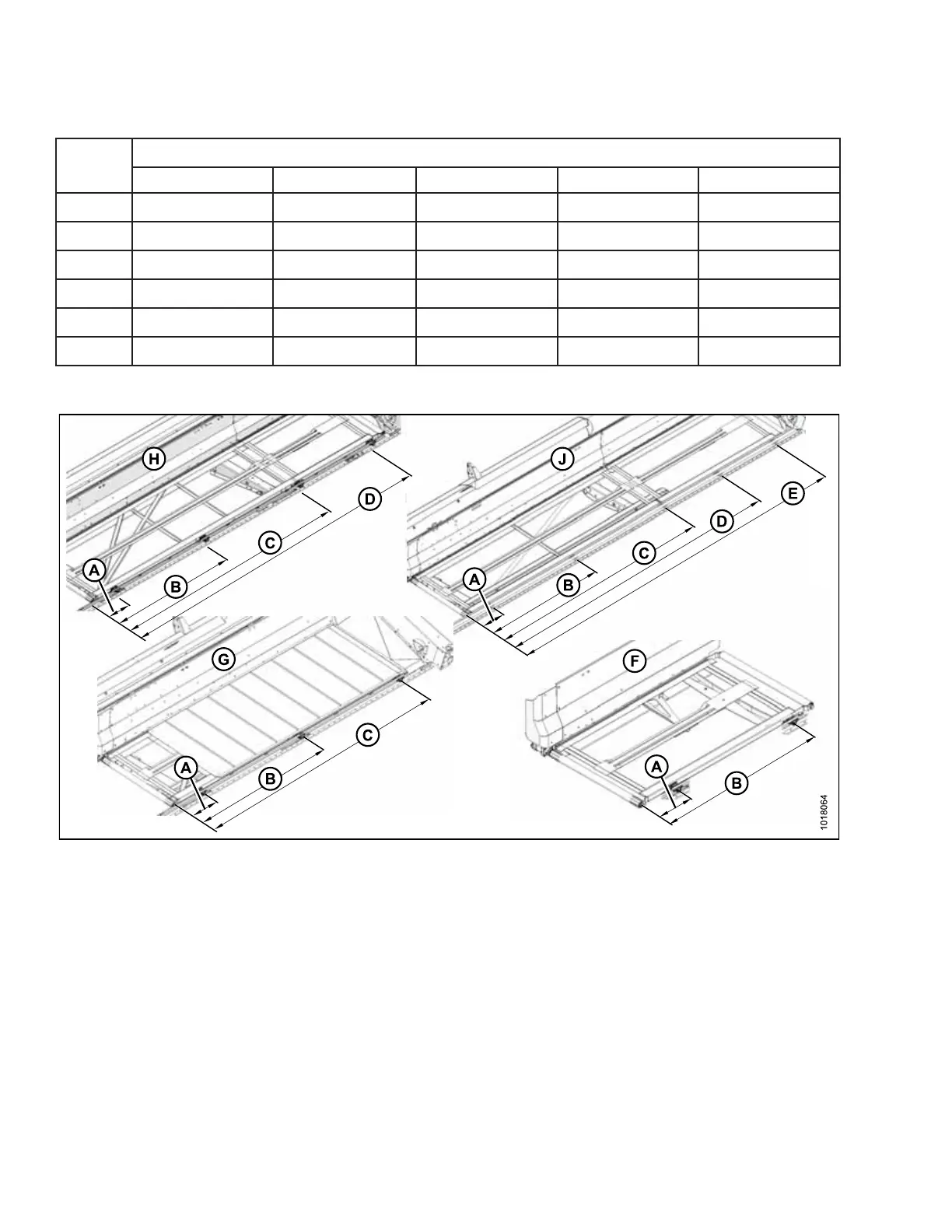

Figure 5.39: Deck Support Locations – Left Shown, Right Opposite
