214328 76 Revision A

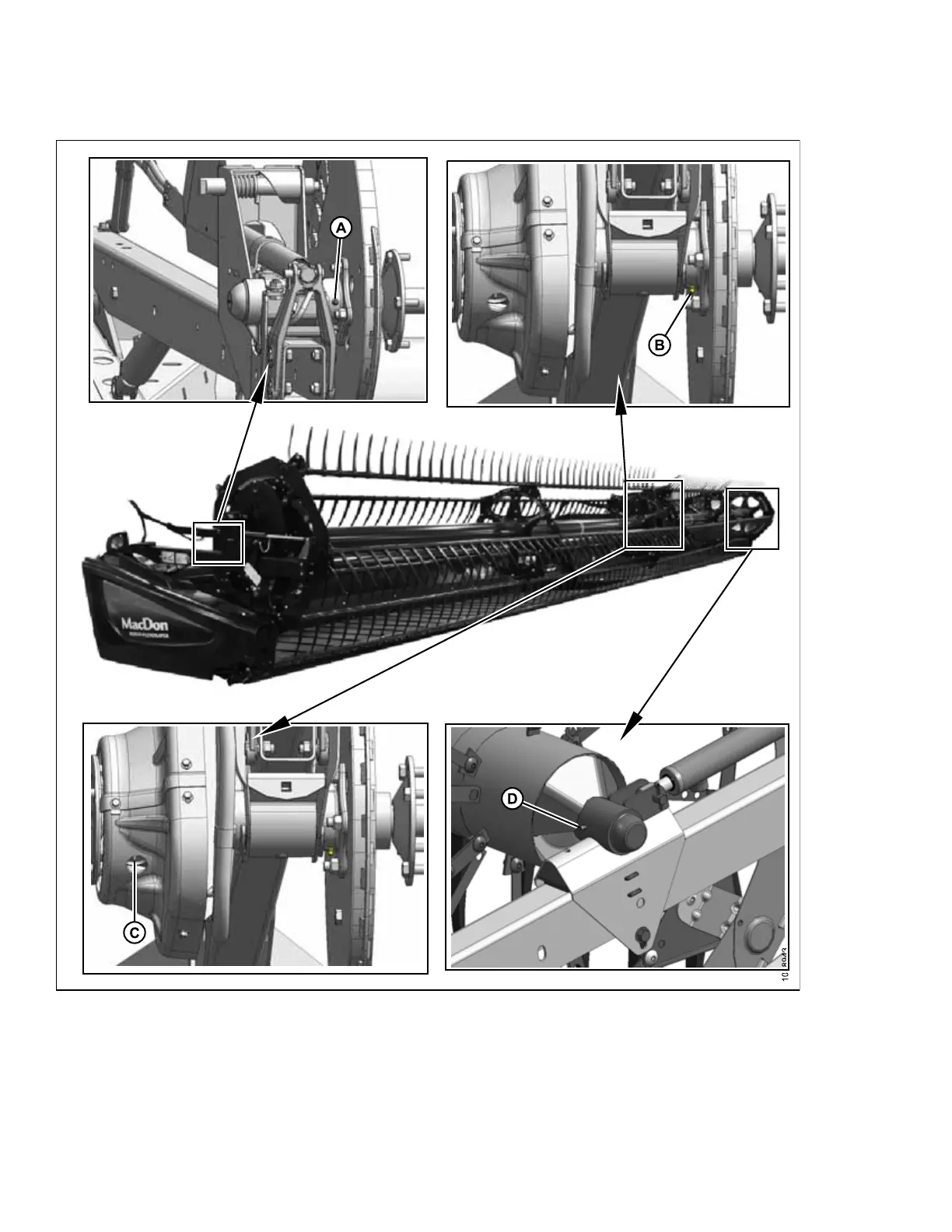

Figure 5.43: Lubrication Points
A - Reel Shaft Right Bearing (1 Place) B - Reel Center Bearing (1 Place - Double Reel)
C - Reel Universal (1 Place - Double Reel) D - Reel Shaft Left Bearing (1 Place)
PERFORMING PREDELIVERY CHECKS
