© 2019 EnergyLogic, LLC Toll Free: 800 311 8828 Fax: 615 471 5202 www.energylogic.com 11
Rev. Date 040819

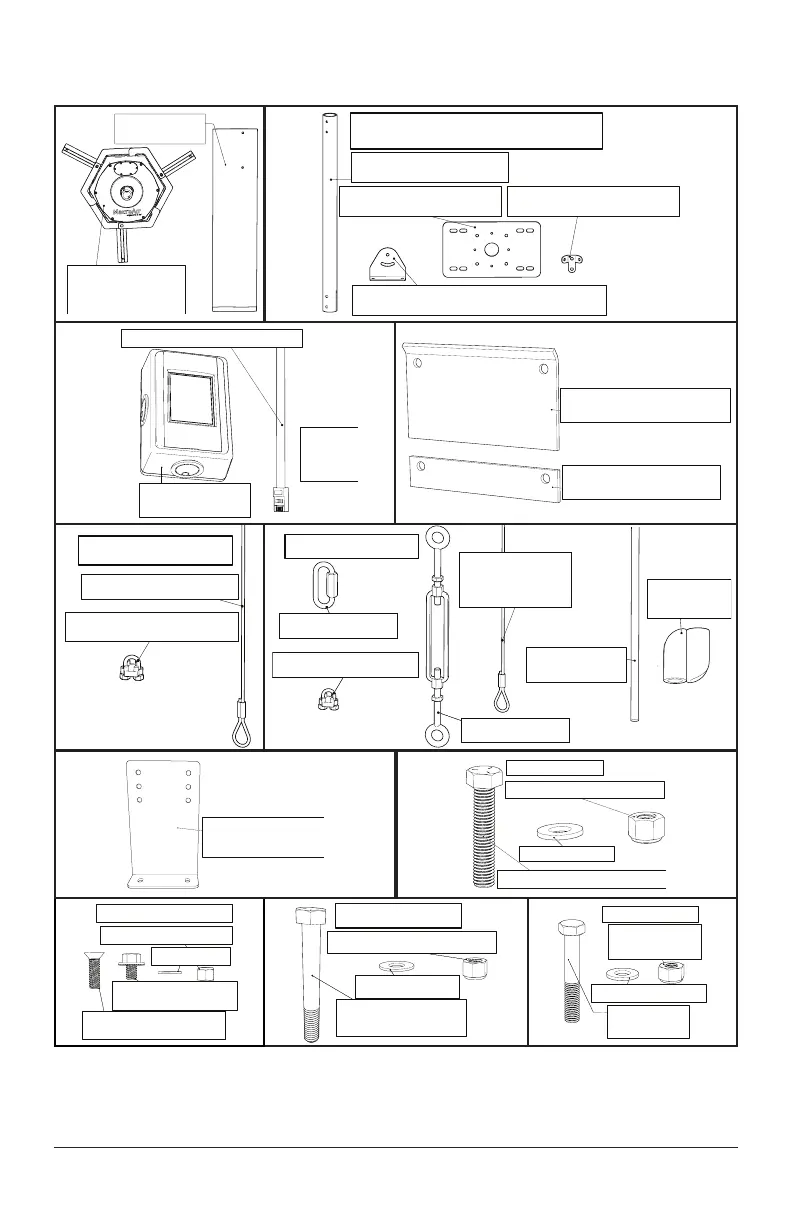

AVD 3 Motor
Unit (1)
Airfoil (3)
I-Beam Shim (2)
I-Beam Clamp (2)
Fixed Angle Mount Bracket (2)
Guy Wire Bracket (2)
Top Mount Plate (1)
Extension Tube (1)
Fixed Angle Mount Parts
Wire Rope Clamp (2)
Safety Cable Parts
Wire Rope 3/16” (1)
5/16"-24 x 2"
Hex Bolt (6)
5/16" Washer (12)
5/16"-24 Nylon
Lock Nut (6)
3 Blade Bolt Kit
3/8" Washer (4)
3/8"-16 Nylon Lock Nut (2)
3/8"-16 x 2 3/4" Hex
Head Bolts (2)
3/8" Washer (4)
Extension Bolt Kit
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 Nylon Lock Nut (4)
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 x 1/2" Serrated
Flange Hex Head bolt (4)
Fixed Angle Mount Bolt Kit
Components (Fixed Angle Mount)
Guy Wire Assembly
Wire Rope (4)
19ft (A), 23ft (B),
or 33ft (C)
Turn Buckle (4)
1/4" Quicklink (4)
Wire Rope Clamp (8)
Glulam Bracket (2)
(Optional)
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit
Guy Wire
Elastic Band (1)
Elastic Band
Clip (1)
Touchpad Digital
Remote (1)
Stranded Shielded CAT5e (1)
RJ45
Pin-Out
Type “B”
Make sure all parts listed above are included if you purchased the Fixed Angle Mount.
Read the entire manual before beginning the installation of the fan. Additional parts
may be required, including, but not limited to, guy wire attachment hardware, extra
cable, Unistrut, and bolts for Glulam mounting. Power cable is not provided.
