Use the two holes closest to
the center line of the glulam.
3/16" safety cable clearance
Holes can be oversized
for leveling the mount
1/2" bolt clearance
75 ft lbs
75 ft-lbs
[102 N-m]
The bracket can be below the bottom
of the glulam if necessary but
is not recomended if it is avoidable.

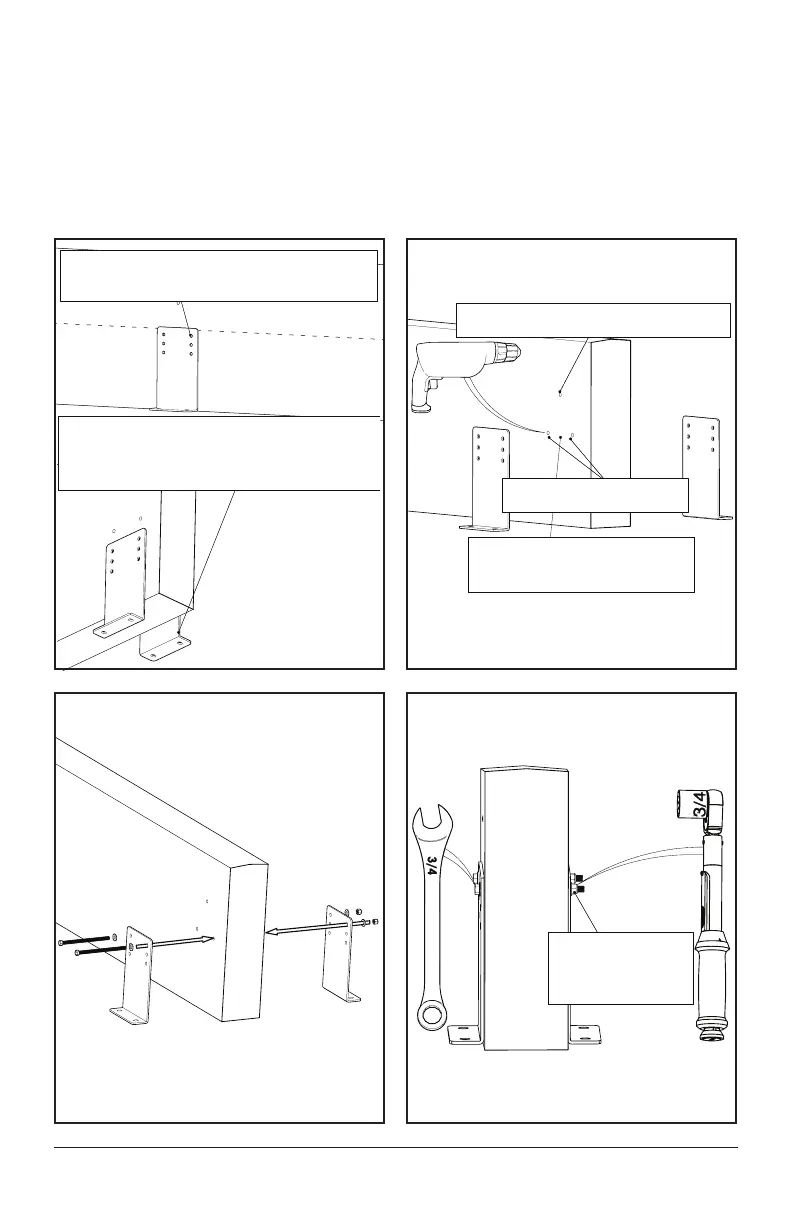

1.1.2 Fixed Angle Mount Glulam
This method is recommended for Glulams or wood beams 5-1/8” or
wider. For narrower beams, span across two or more beams using the
Unistrut mounting method.
3/4”
To Next Page
