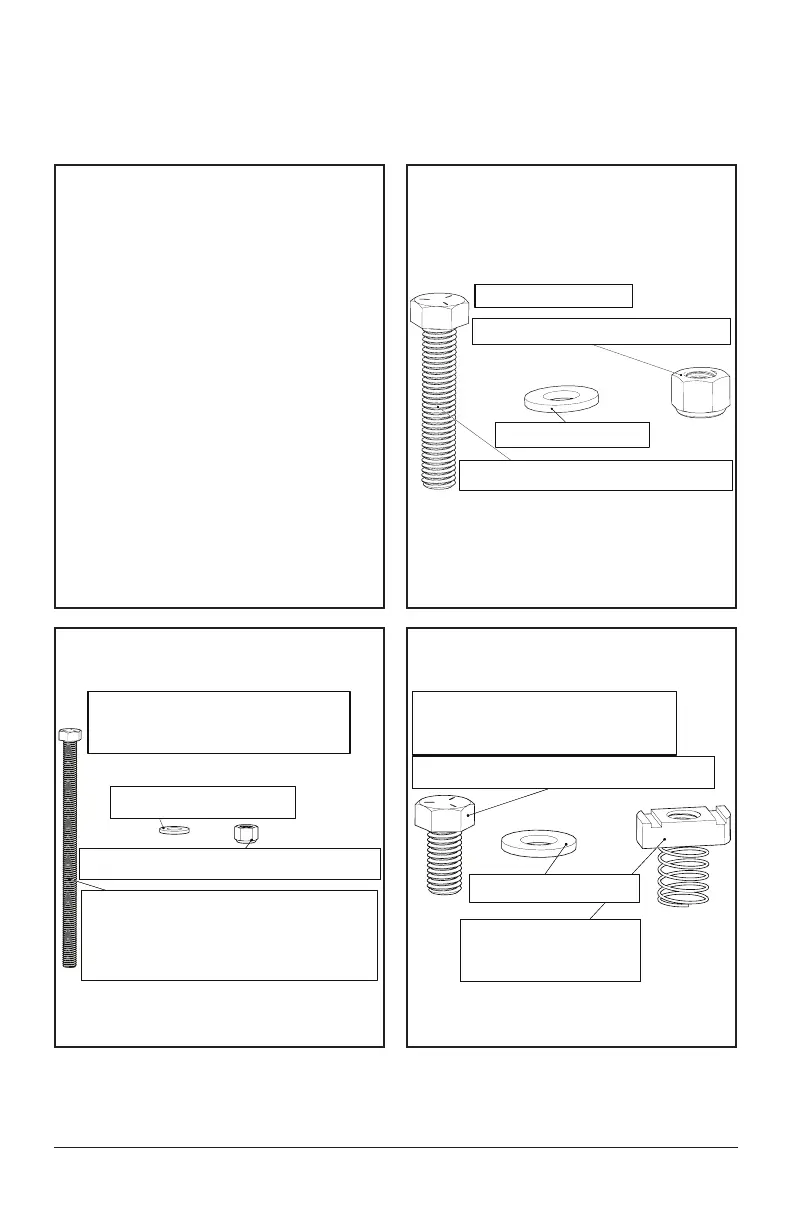

1/2"-13 Grade 5 Hex Bolt
at least 2 1/2" longer than
width of Glulam (2)
1/2" Washer (4)
1/2"-13 Nylon Lock Nut (2)
Glulam Required Parts
(NOT PROVIDED)
1/2"-13 x 2 1/2" Hex Bolt (4)
1/2"-13 Nylon Lock Nut (4)
1/2" Washer (8)
I-Beam Bolt Kit
1/2"-13 x 1 1/2" Hex Bolt (4)
1/2"-13 Unistrut
Spring Nut (4)
Unistrut Required Parts
(NOT PROVIDED)
1/2" Washer (4)
The I-Beam Bolt Kit is
included in the shipment of
all fans. Additional parts must
be purchased if mounting to a
Glulam or Unistrut.
For mounting to steel trusses
over 3 inches in width, use the
I-Beam mounting. For widths
under 3 inches, use Unistrut
span mounting. If you wish to
mount to a different surface
than these listed here,
contact a structural engineer.
2. All Universal Mounts
2.1 Mounting Bolt Kits
I-Beam mounting starts on page 33
Glulam mounting starts on page 35
Unistrut mounting starts on page 37
