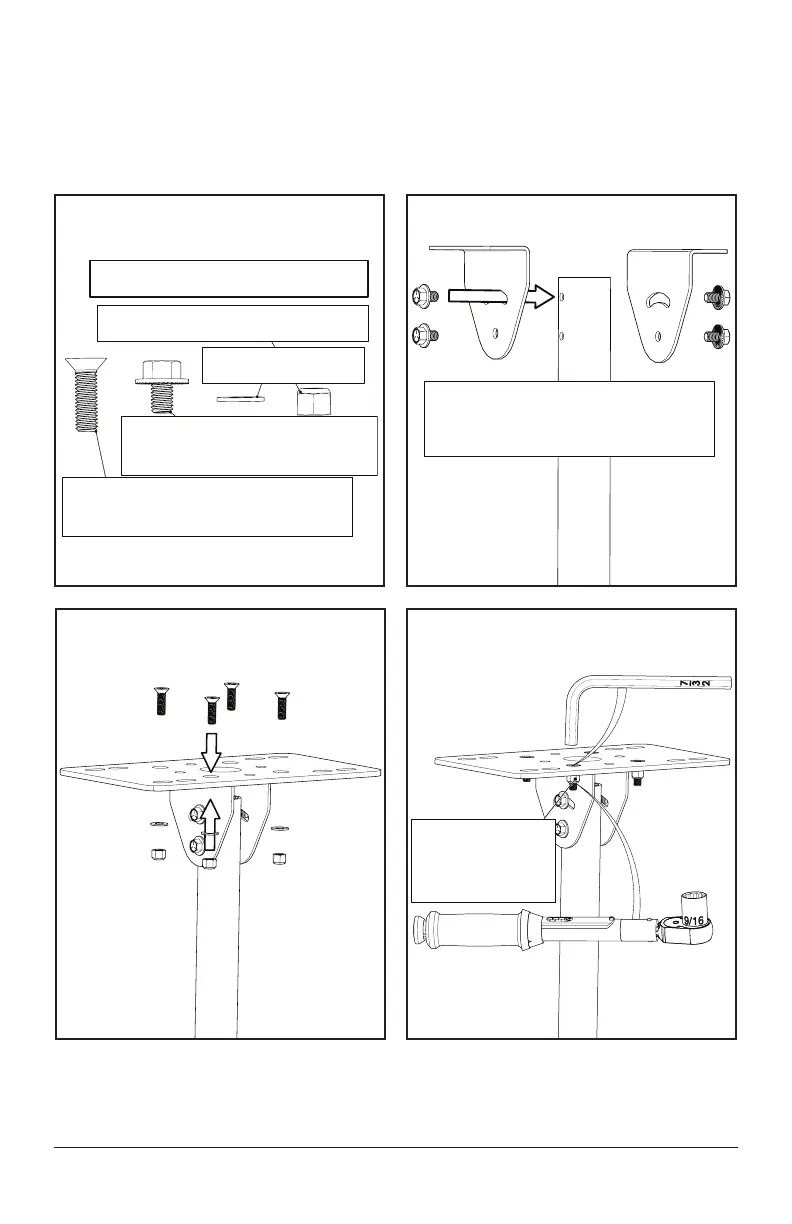

Hand Tighten
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 Nylon Lock Nut (4)
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 x 1/2" Serrated
Flange Hex Head bolt (4)
Fixed Angle Mount Bolt Kit
30 ft-lbs
30 ft-lbs
[41 N-m]
9/16”
The bolts attaching the Fixed Angle Mount brackets to the
extension tube (top right picture) will be torqued after attaching
the motor to the extension tube (later on in this manual).
7/32”
1.1.1 Fixed Angle Mount
I-Beam (Steel Truss Mounting)
Use this method for steel trusses and I-Beams over 3” in width.
