© 2019 EnergyLogic, LLC Toll Free: 800 311 8828 Fax: 615 471 5202 www.energylogic.com 20
Rev. Date 040819
Hand Tighten
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 Nylon Lock Nut (4)
3/8" Washer (4)
3/8"-16 x 1 1/4"Countersunk
Socket Head Cap Screw (4)
3/8"-16 x 1/2" Serrated
Flange Hex Head bolt (4)

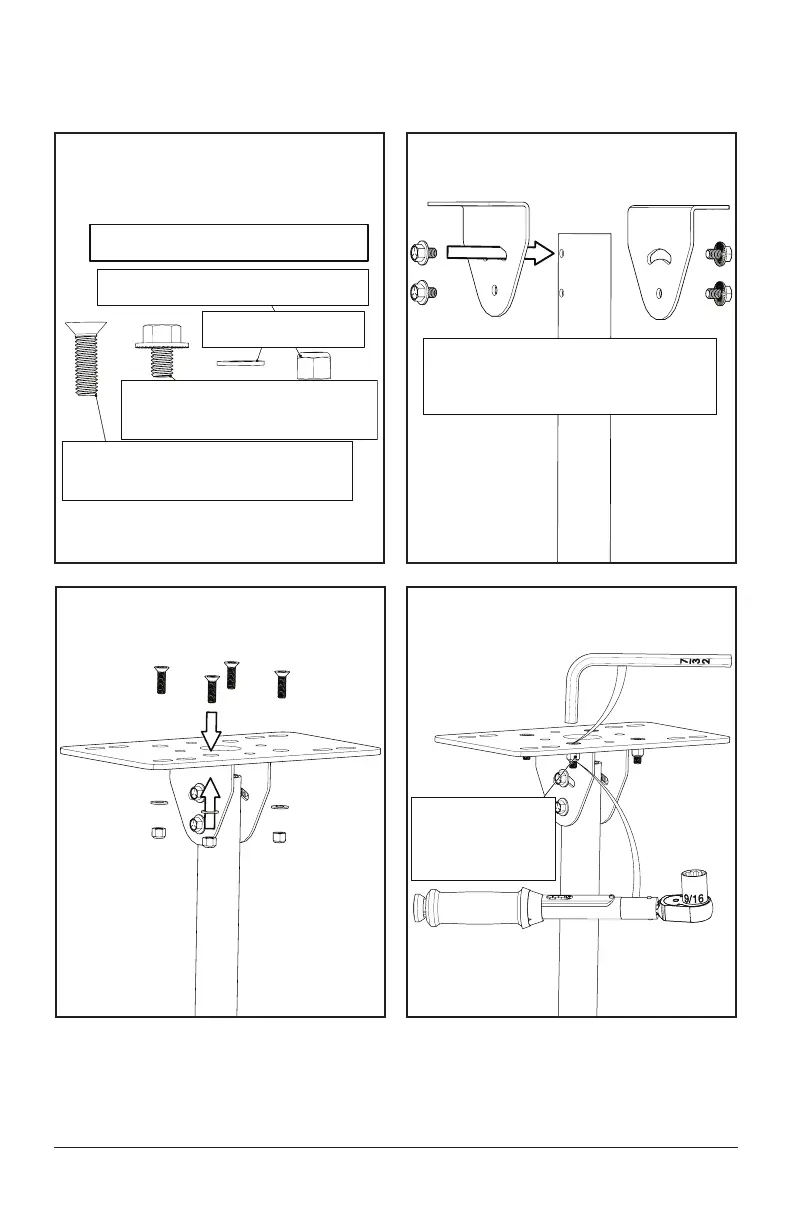

Fixed Angle Mount Bolt Kit
30 ft-lbs
30 ft-lbs
[41 N-m]
9/16”
The bolts attaching the Fixed Angle Mount brackets to the
extension tube (top right picture) will be torqued after attaching
the motor to the extension tube (later on in this manual).
7/32”
1.1.2 Fixed Angle Mount Glulam
To Next Page
