4.3 Echo Rejection
Another way to ignore unwanted signals along the length of
the probe is by utilizing the Echo Rejection feature.

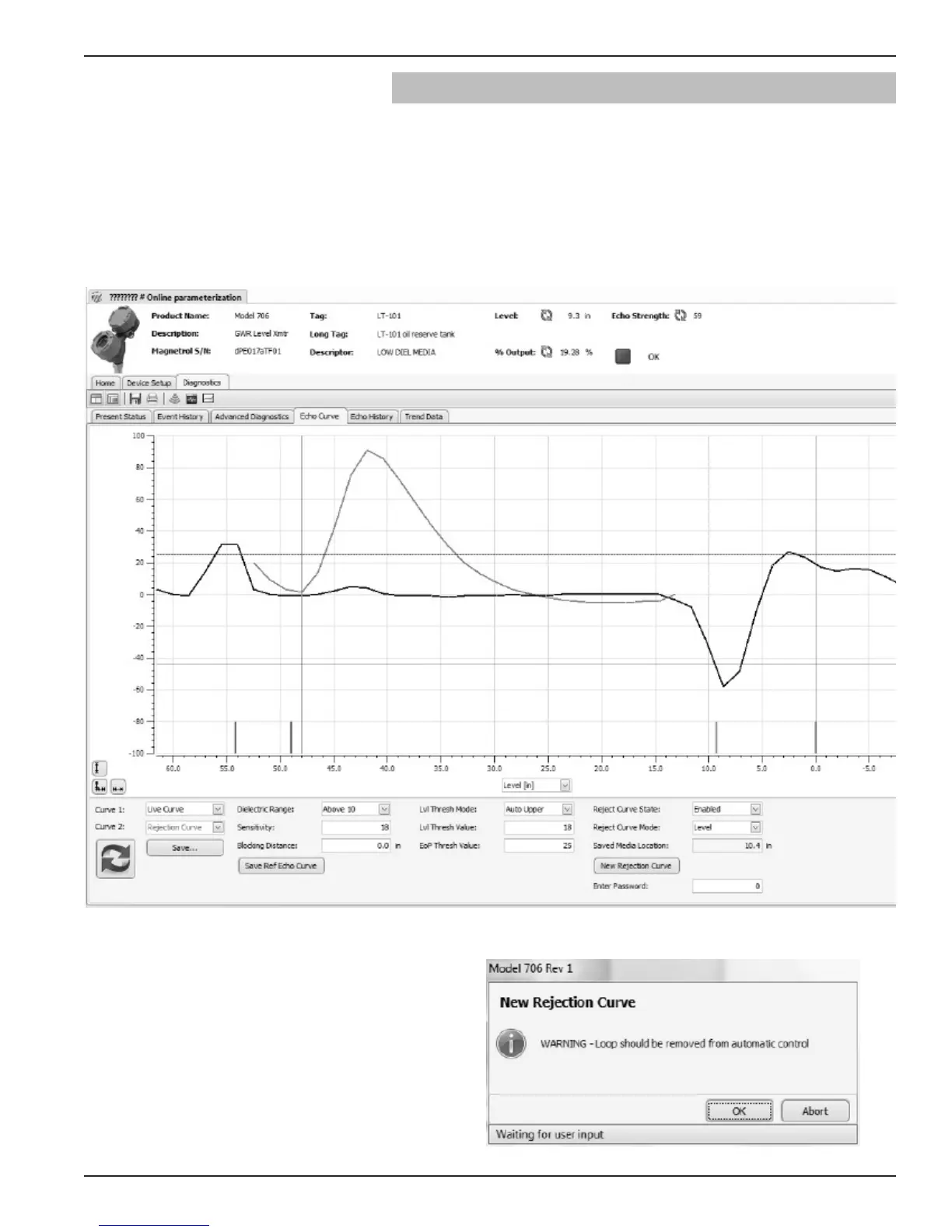

Setup using PACTware
Select the Diagnostics tab and then the Echo Curve tab.
Then click on New Rejection Curve
Click on OK at the loop warning message.
101
57-606 ECLIPSE Model 706 Guided Wave Radar Transmitter
