57-606 ECLIPSE Model 706 Guided Wave Radar Transmitter
7 00 0 3
12 3 456 7 8 910 11 12 13 14 15

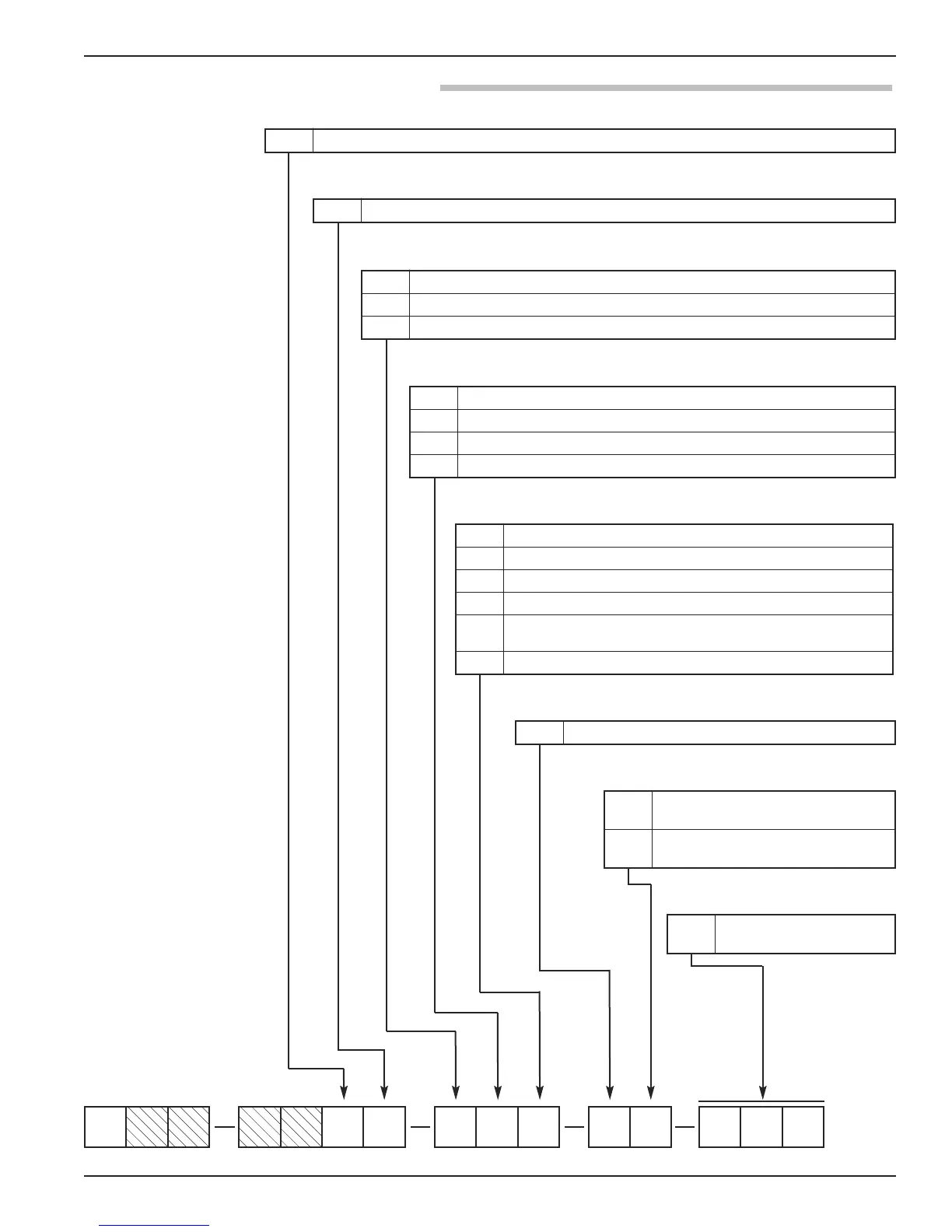

3.7.6 Single Flexible Cable Probe c
ontinued
11 | PROBE SIZE/ELEMENT TYPE/FLUSHING CONNECTION
3 Flexible Cable Probe
12 | SPECIAL OPTIONS
8 | MATERIAL OF CONSTRUCTION - MFG/NUT/ROD/INSULATION
A 3
16 SS/316L SS
F
Faced Flange, PFA Coated Wetted Surfaces — Only available with 3rd digit 1
R 316 SS/316L SS with Carbon Steel Flange
7 | FLANGE OPTIONS
0 None
6 | CONSTRUCTION CODES
0 Industrial
13 14 15 | INSERTION LENGTH
X X X
feet (003 – 100)
meters (001 – 030)
unit of measure determined by
2nd digit of model number
0
Non-removable Probe Cable
Only available with 3rd digit 2 or 8th digit F
1
Removable Single-piece Probe Cable
Only available with 3rd digit 1, 3 and 6
9 | SPACER/WEIGHT MATERIAL
0
No Spacer — Not available with 3rd digit 3
1
PTFE Spacer — Available only with 3rd digit 3
4
Celazole
®
Spacer — Available only with 3rd digit 6
5
Metal Weight — Available only with 3rd digit 3
10 | O-RING MATERIALS/SEAL OPTIONS
0 Viton
®
GFLT
2 Kalrez 4079
8 Aegis PF 128 (NACE)
A Kalrez 6375
D
Glass Ceramic Alloy Dual Seal with annunciator fitting —
Available only with 3rd digit 3 or 6
N
None/Glass Ceramic Alloy Dual Seal – Available only with 3rd digit 3 or 6
