21
Operating Instructions
15 Technical data
Measuring system accuracy (.7+L/1000) um (L in mm)
Measuring force 1 1N
Measuring force 2 3N
Travel 50mm
Measuring range external measurement 100mm
Measuring range internal measurement 6 - 50mm
Height-adjustable table for external measurement 40mm
Height-adjustable table for internal measurement 20mm
Total length 420mm
Total width without centering mounting 130mm
Total height 130mm
Weight without centering mounting approx. 15Kg
Centering mount ing
Clamping range between centres 180mm
Height of centres 45mm

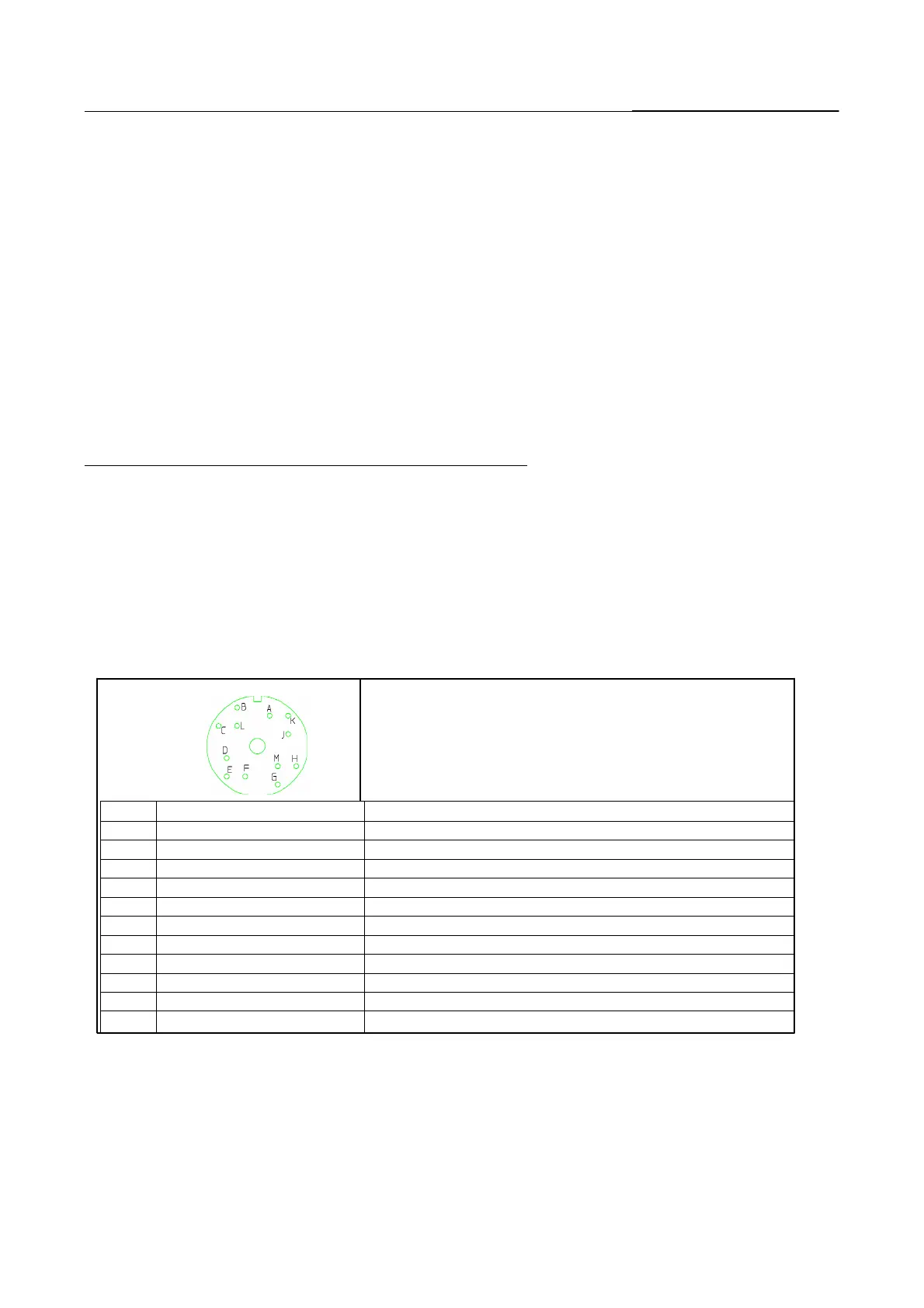

16 Interface description
P i n c o n n e c t i o n
* Transmitter signal line screening is also connected to PIN J via the connector casing with the evaluation
electronics casing. When transmitting with separate internal and external screening, the internal screening is
taken to GND via Pin J, and the external screening via the connector casing linked to the instrument casing.
HELIOS-
System
Connector layout-external view from the instrument.
A green s1/ First transmitter signal inverted
B yellow s1 First transmitter signal not inverted
C grey s2 Second transmitter signal not inverted
D pink s2/ Second transmitter signal inverted
E brown 5 V (60 mA)Supply voltage
F white GND Reference potential
G grey/pink reserved for digital input
H violet reserved for digital input
J red/blue Screen
*
K blue reserved for digital output
L red reserved for reference mark
M black
-
