MAN B&W S65ME-C8.2-GI-TII User Manual

MAN B&W 5.16
Page 3 of 3
MAN Diesel
MAN B&W ME/ME-C/-GI engines 198 82 73-3.1
517 57 64-4.5.1

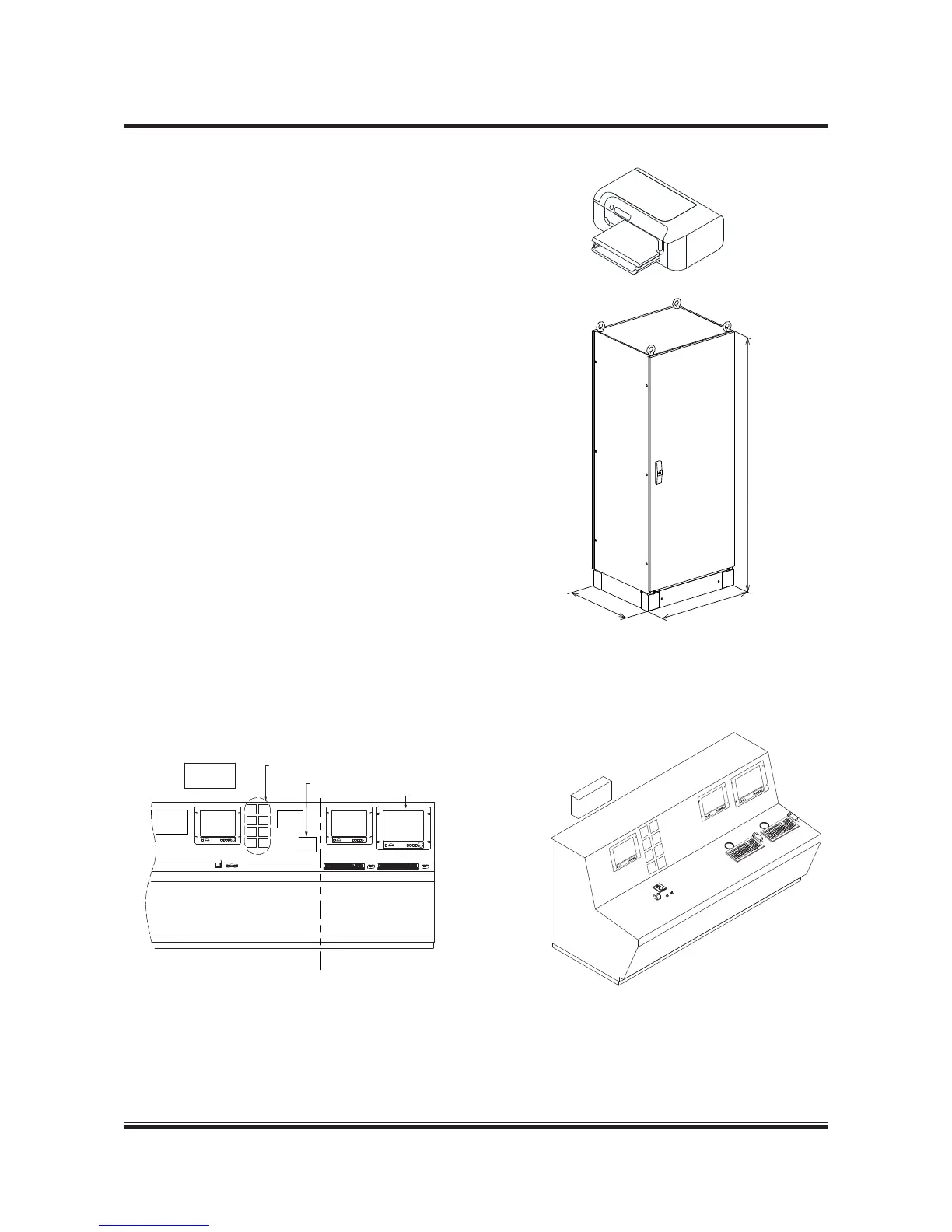

Fig. 5.16.03: The network printer and EICU cabinet unit for the ME Engine Control System
1,500 mm
600 mm505 mm
Printer
• Network printer, ink colour printer
EICU Cabinet
• Engine interface control cabinet for ME-ECS for
installation in ECR (recommended) or ER
188 23 16-6.1.0
Service operationEngine operation/navigating
PMI/CoCoS-EDS monitor
Oil mist
detector
* Alarm
system
MOP A
monitor
MOP B
monitor
* Instruments for main engine
BWM indicating panel if any
Engine control room console
• Recommended outline of Engine Control Room console with ME equipment
513 54 76-3.1.0
Fig. 5.16.04: Example of Engine Control Room console
* Yard supply
Oil mist detector equipment depending on supplier/maker
BWM: Bearing Wear Monitoring
