7.0 9
MAN B&W ME-GI TII engines 198 86 39-0.2
Leakage detection
To detect any gas leaks into the annular space in
the double wall piping, two hydrocarbon (HC) sen-
sors must be installed in the outlet of the ventila-
tion system. The location of the flow switches and
HC sensors is shown in Fig. 7.09.02.
Safety standards for the leakage detection
and ventilation system
The leakage detection and ventilation system
must comply with:
• all relevant classification requirements
• IEC 60092 Electrical Installations in Ships
• Certification according to ATEX directives.
XT 6332-B
XC 6312
XT 6332-A
FS 6302
FS 6303
PI
FS 6305ZV 6307
Deck
Deck
Air outlet
Main
engine
CF/VF
CX/VX
Fuel inlet
Outside air inlet
From inert gas
control valve
Relief outlet
Air supply
Flow switches
HC sensors
From starting air
Purge return
#KTQXGTǤQY

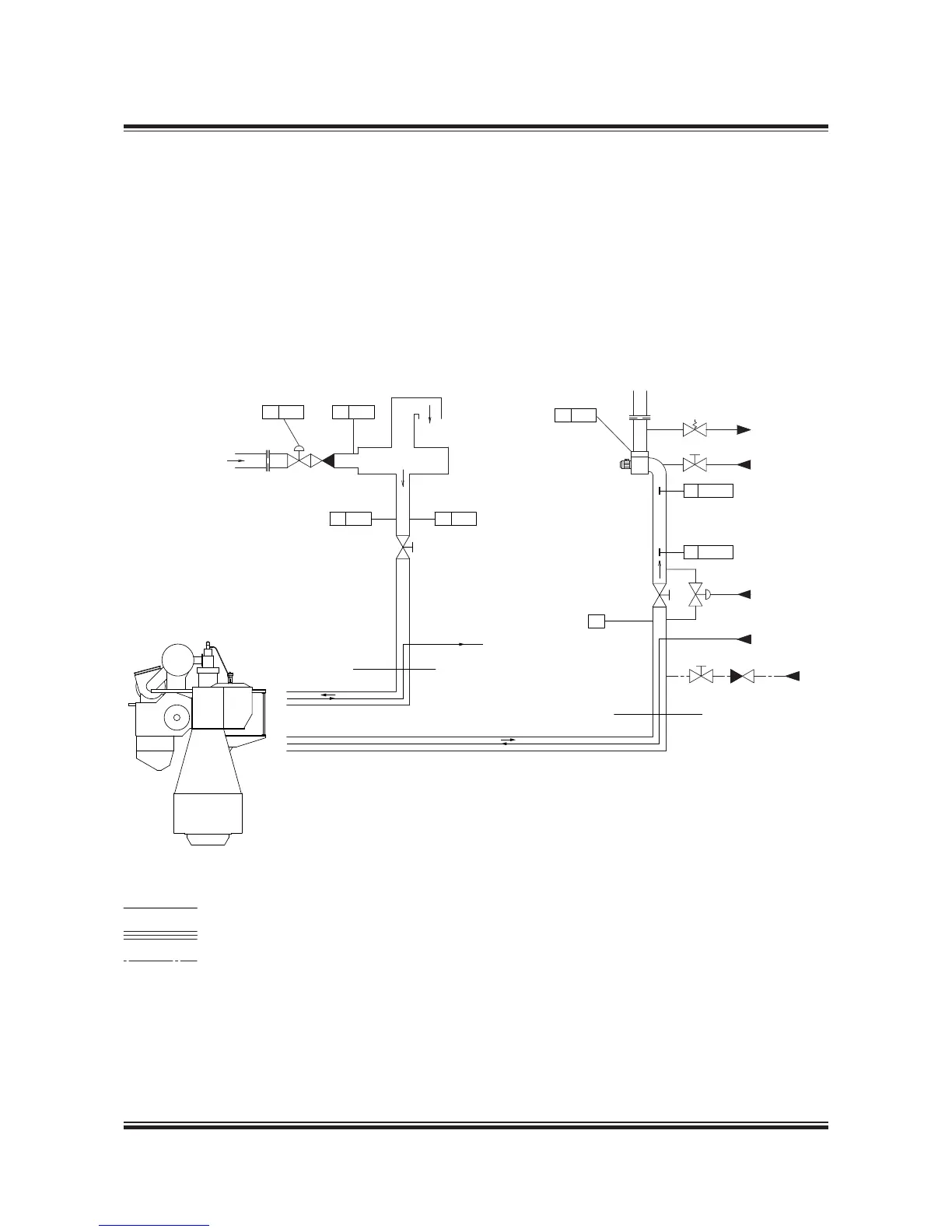

Fig. 7.09.02: Leakage detection and ventilation system for double-wall piping
556 19 91-8.4.0
Gas supply
Double-wall pipe
Air supply
