MAN B&W ME-GI TII engines 198 86 39-0.2
Chain pipe and accumulator volume is dependent
on engine type, contact MAN Diesel & Turbo for
further information.
If a common inert gas system is used to supply
the FGS system too, the volume of this system
must be added to the purging volume.
ME-GI purge sequences Piping route
1. Purging accumulators
V
sect 1
Inert gas unit – chain pipe
– accumulator – purge
valve – silencer
2. Purging window &
injection valves V
sect 2
Inert gas unit – chain pipe
– window valve – gas
injection valve – blow-off
valve – silencer
Gas
valve
Fuel
valve
Control
oil
Pilot oil
Sealing
oil
Fuel
valve
Gas
valve
Inert gas
delivering
unit
ACCU
Gas control
block
ELGI
ELWI
Gas venting pipe
7 - 9 bar
Inert gas system
Cylinder cover
Sealing oil system
Hydraulic oil,
pilot oil,
sealing oil system
Venting
air
intake
Leakage detection
and ventilation
system for
the engine
Outside
engine
room
Inside
engine
room
Air
suction
pump
V
sect 1
V
sect 2
Vent silencer

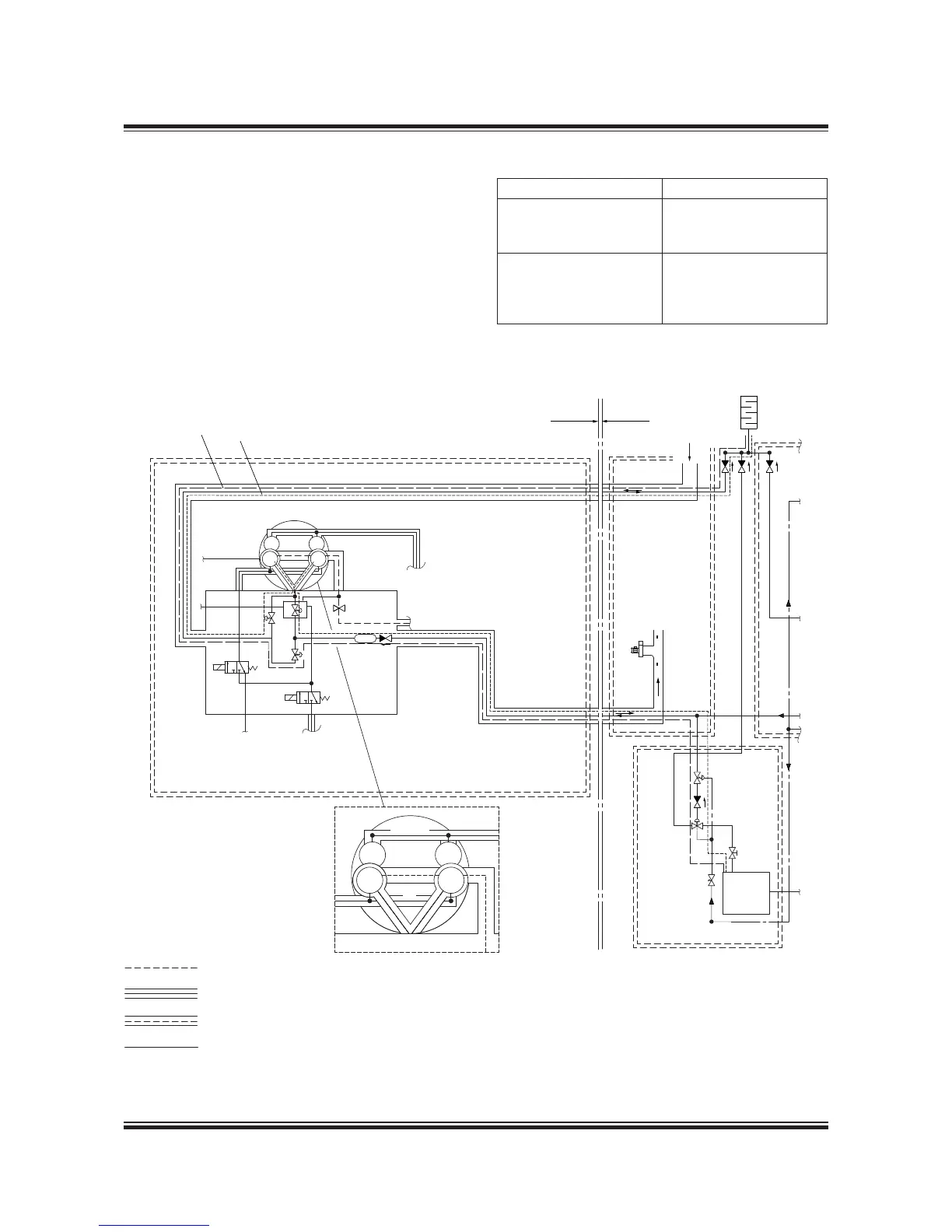

Fig. 7.09.04: Piping routes for purging sequence
178 64 94-4.1
El
Double-wall pipe
Sealing oil
Hydraulic oil drain
Table 7.09.03: Purging sequence
